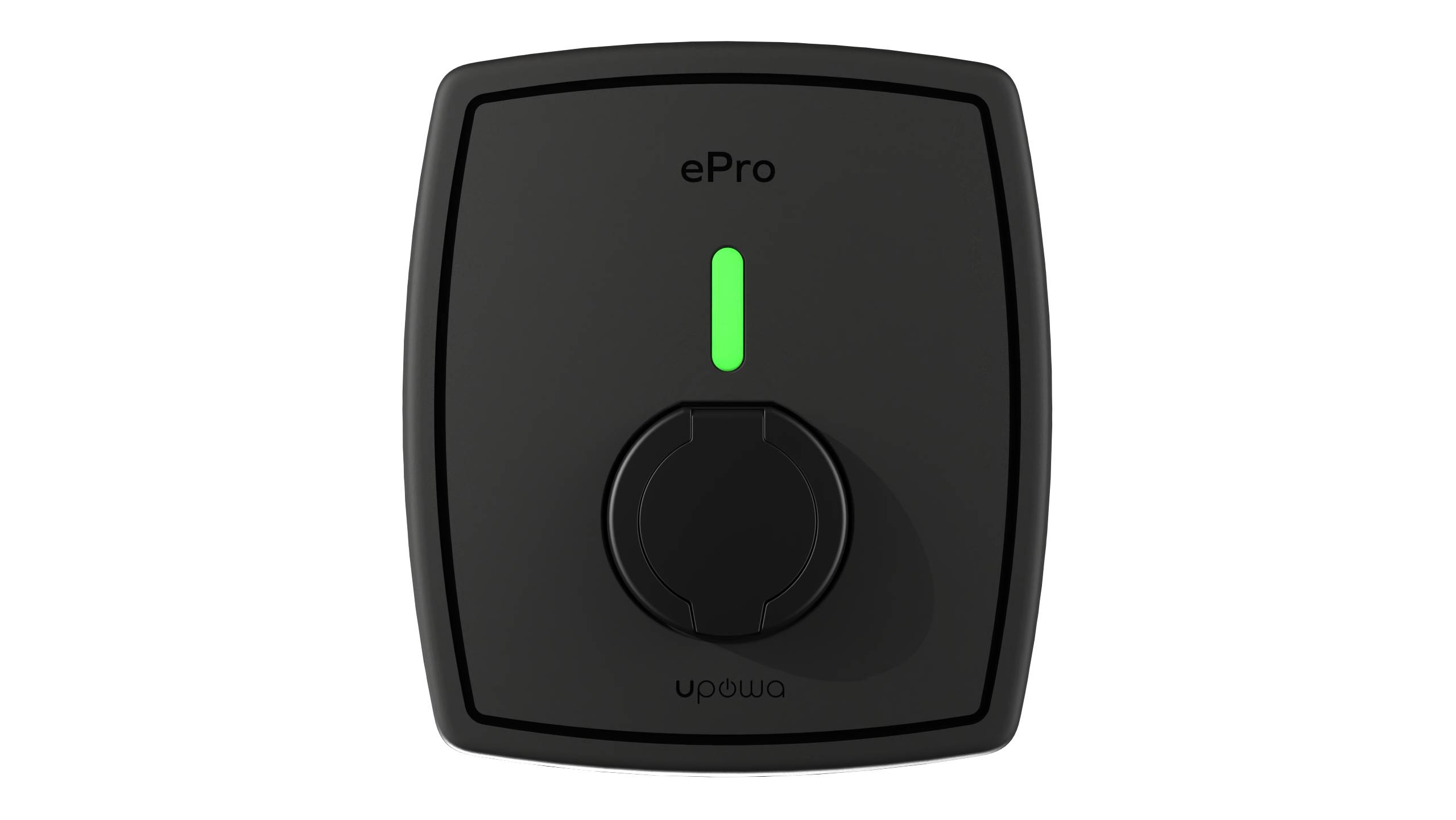

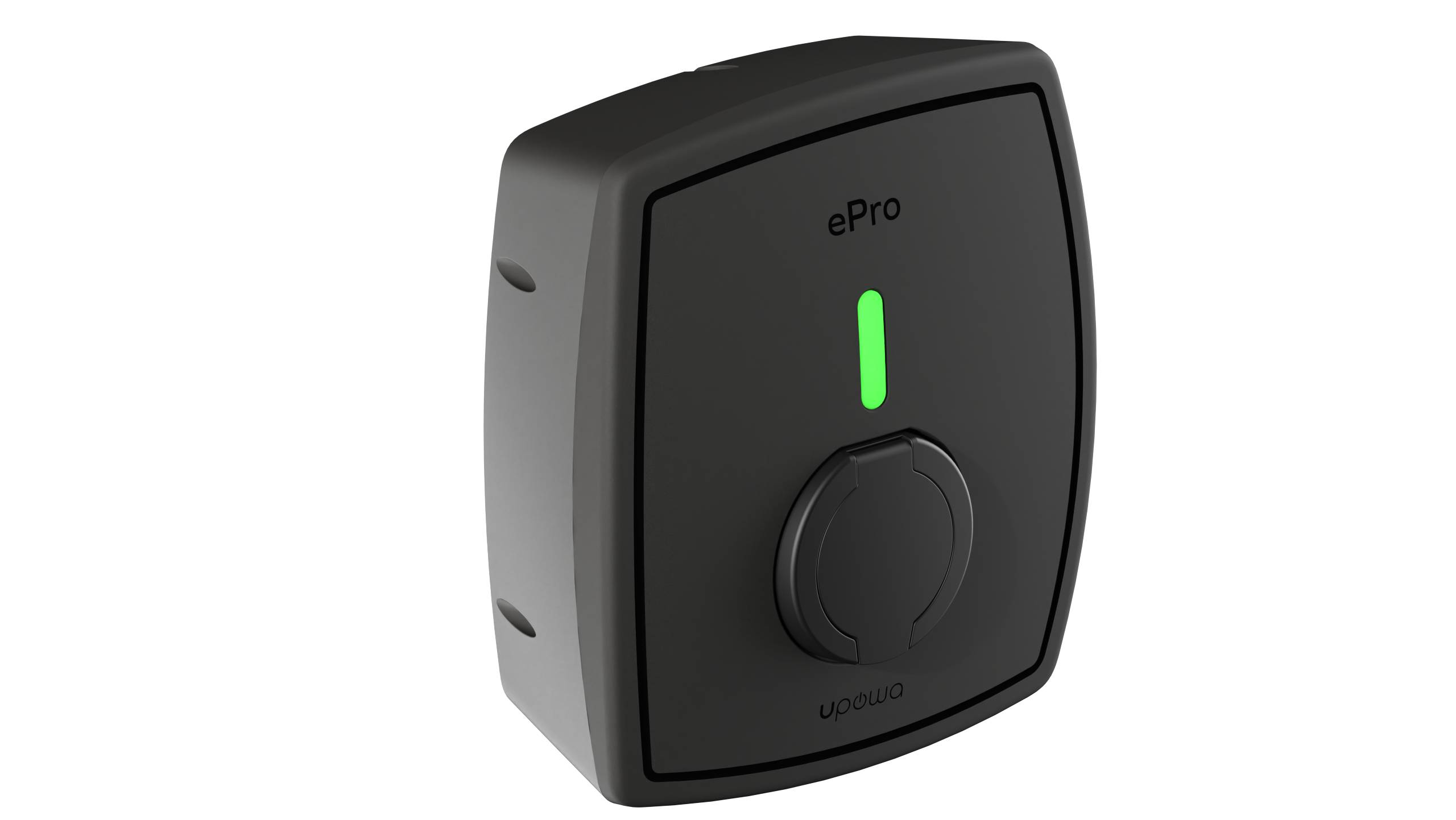

UPOWA ePro 7 - EV Charging Unit - Residential 7.2 kW EV Charger

Verified by manufacturer 1 day ago

Towelrads

A British-made 7.2 kW EV charger designed specifically for new build homes, with both homeowners and installers in mind.

Jump to:
+44 (0) 1628 568 532 Website

Application

Suitable for residential applications particularly for housing developers and installers.

Description

A British-made 7.2 kW EV charger designed specifically for new build homes, with both homeowners and installers in mind. Regulation-ready, the ePro 7 allows for installation in under 5 minutes, without compromising on quality or safety.

Features and benefits:

  • Up to 7.2 kw single-phase smart charging power.
  • Compatible with all type 2 charging cables.
  • Multi-colour LED status indicator.
  • Wi-Fi and Bluetooth connectivity.
  • Integrated MID-certified meter.
  • Over-the-air software and firmware updates.
  • Multiple-user accounts.
  • Compliant with part S, Smart Charge Points Regulations and OCPP 1.6.
  • Tamper security even without power.
  • IP65 and IK10 sleek, robust and fully weatherproof enclosure.
  • Built-in pen fault detection, meaning no earth rod required.
  • Built-in DC leakage protection, no type B RCD required.
  • Three-year standard warranty.
  • Can be installed in under five minutes thanks to a unique backplate mounting design.
  • No on-site commissioning, streamlines installation, saving time and cost.
  • Wall or post mounted.
  • Dedicated UK team for all planning guidance, design, installation and technical support needs.

General information

Color

Black

Shape

Rectangle

Length

130 mm

Width

267 mm

Height

303 mm

Warranty description

Three year

Uniclass

Pr_65_72_97_29 Electric vehicle charging pointsPrimary

CAWS

V90/445 Electric vehicle charging points

Specification data - Electric vehicle charging points

Classification data

Standards

To BS EN IEC 61851-1.

Charging mode

3.

Input voltage

230 V a.c. single-phase.

Rated frequency

50 Hz.

Power output

7.2 kW.

Outlet type

Single, Type 2 socket, to BS EN 62196 series.

Mounting

Wall-mounted.
Post-mounted.

Impact protection (minimum)

IK10.

Ingress protection (minimum)

IP65.

Circuit protection

Built-in 6 mA DC RCM and over and under voltage protection.

Guidance for specification option:

Consult manufacturer for more details.

Accessories

UPOWA smartphone app.

Guidance for specification option:

For iOS and Android.

Operating temperature range

-10°C to +50°C.

Operating humidity

<95%.

Weight

2.5 kg.

Guidance for specification option:

Including backplate.

Dimensions

303 x 267 x 130 mm.

Manufacturer guidance

Height x width x depth.

RatedCurrent

32 A (adjustable).

Manufacturer guidance

Rated output current.

Standby power

1 W.

Manufacturer guidance

Standby power consumption.

Third-party certification

UKCA and CE marked.

Status

LED indicator.

Manufacturer guidance

Status indicator.

Communications

OCPP 1.6.
Wi-FI/ Bluetooth.

Guidance for specification option:

Consult manufacturer for more details.

Sustainability data

Country of product manufacture

United Kingdom
