Description

Environmentally innovative composite decking with a stone-like appearance, available in eight colours inspired by the Finnish nature, allowing deck designs that are fresh and clean. Distinctive patterns can be achieved by alternating the direction of the boards or utilizing both the fine and the wide groove surfaces of the reversible profile. The material is virtually lignin free giving, long lasting colours with no greying and contains no harmful chemicals.

Features and benefits:

  • Fresh and modern look.
  • Superior stain resistance.
  • Excellent colour durability.
  • Excellent scratch resistance.
  • Zero degree incline possible.
  • High impact strength.
  • Good friction, wet or dry.
  • Recycled and recyclable.
  • PVC free and non-toxic.

Components:

  • Decking boards.
  • Rail step.
  • T-clips.
  • Support rail.
  • Alu-Rail.
  • Cover strip.

General information
Features

Fresh and modern look, superior stain resistance, excellent colour durability, excellent scratch resistance, 0° incline possible, high impact strength, good friction, wet or dry, recycled and recyclable, PVC free and non-toxic

Almost twice the bending strength of a standard product: suitable for, abnormal loading or span requirements. Fresh and modern look, superior stain resistance, excellent colour durability, excellent scratch resistance, 0° incline possible, high impact strength, good friction, wet or dry, recycled and recyclable, PVC free and non-toxic

Material

Cellulose fibres encapsulated in specially selected polypropylene polymers

Pure cellulose fibres encapsulated in high performance polypropylene

Shape

Rectangular

Size

4000 x 127.5 x 28 mm

4000 x 150 x 28 mm

WarrantyDescription

Residential: 10 year; Commercial 5 year; Harsh environment: 5 year

Uniclass 2015
Decking systems (Ss_30_20_30_25)Primary
Specification data - Decking systems
Product Reference

UPM ProFi® Deck

UPM ProFi® Deck Plus

For hotter climates and areas with higher UV levels.

UPM ProFi® Deck Strong

For abnormal loading or span requirements.

Colour

Autumn Brown

Chestnut Brown

Marble White

Special order.

Night Sky Black

Silver Green

Snow Blue

Stone Grey

Sunny Beige

Accessories

None

Alu support rails

Rubber pads

Standard product features

Size (l x w x h):

  • Board: 4000 x 150 x 28 mm.
  • Rail step: 4000 x 110 x 28–68 mm.
  • Cover strip: 4000 x 66 x 12 mm.
  • Support rail: 4000 x 60 x 40 mm.

Material:

Environmentally innovative composite material that combines the best qualities of plastic and engineered fibres which fall as surplus by-products in self-adhesive label manufacture and processing. The material is virtually lignin free and contains no harmful chemicals.

Structure:

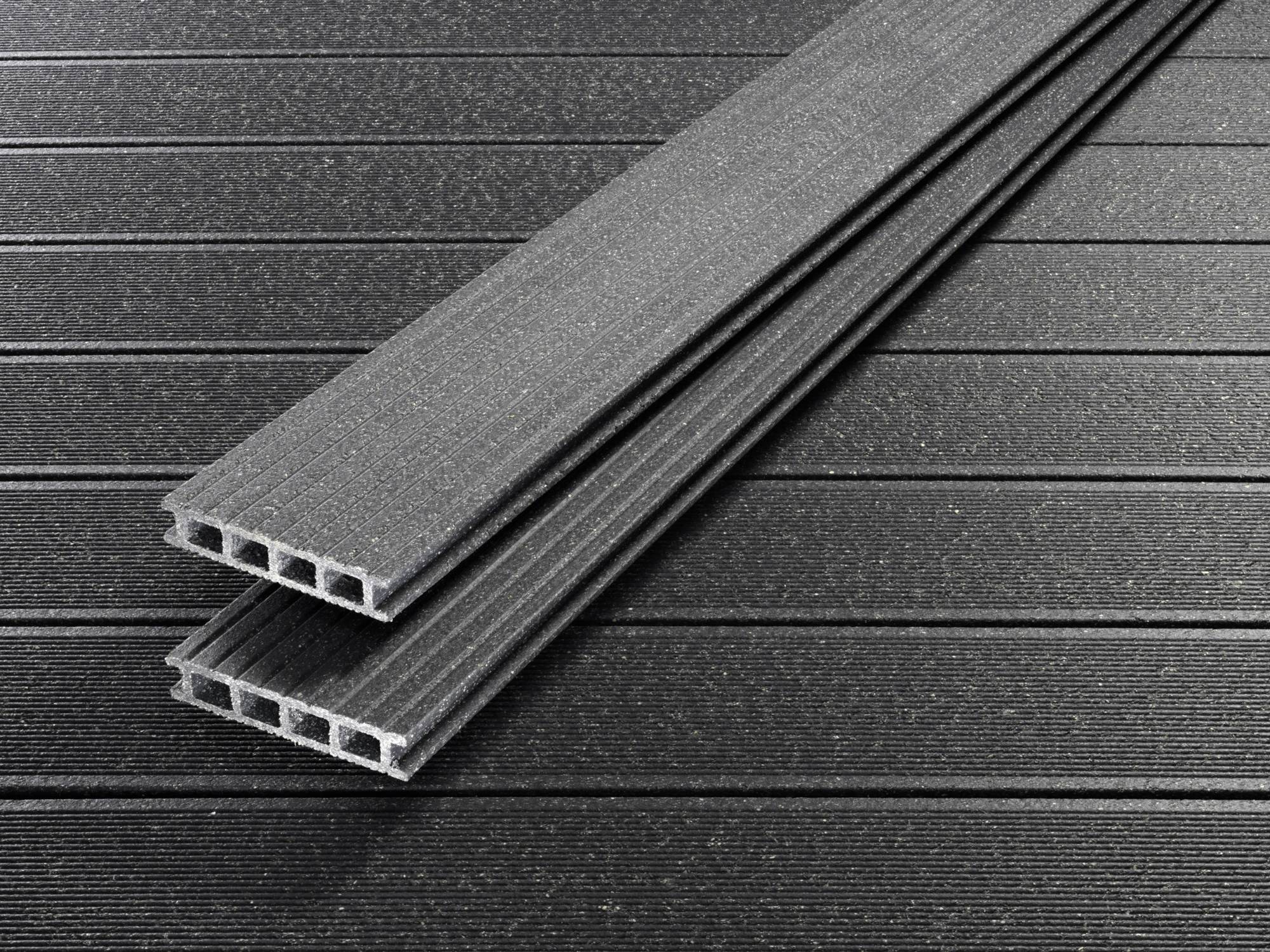

Hollow composite profile made by extrusion technology.

Technical properties (UPM ProFi Deck):

  • Density (to BS EN ISO 1183): 1.2 g/cm³.
  • Bending strength (to BS EN 310): 13 N/mm².
  • Falling mass impact (to BS EN 477): +23˚C: No break (>30 J); -20˚C: No break (>15 J).
  • Surface hardness (Brinell, to BS EN 1534): 28 N/mm².
  • Wear resistance (Taber 1000 r, to BS EN 438-2 0): 16 mm.
  • Friction (wet/ dry, to FSC 2000): 0.54/ 0.83.
  • Point load capacity (to BS EN 1533): 2600 N.
  • Fire class (to BS EN 13501-1): E.
  • Termite resistance (European termites, to BS EN 117): Resistant.
  • Thermal expansion coefficient (1°C, to ISO 11359-2): 4.0 x 10^-5.
  • Heat transfer coefficient (to ISO 8301): 0.24 W/mK.
  • Water absorption (24 hours, to BS EN 317): <2.5%.
  • Swelling, thickness (24 hours, to BS EN 317): <1%.

Product Options

Colour:

UPM ProFi® Deck Plus and UPM ProFi® Deck Strong are available in a limited range of colours, contact manufacturer for more information.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2016 3 2.0
Download now from NBS National BIM Library
Similar products from UPM Biocomposites
