Universal Wall Sleeve - UFR100/200
Application

  • For installation in any type of wall.
  • DIN 18533 W1.1-E, DIN 18533 W1.2-E and DIN 18533 W2.1-E.
  • Waterproof concrete stress class 1 and class 2 applications.

Description

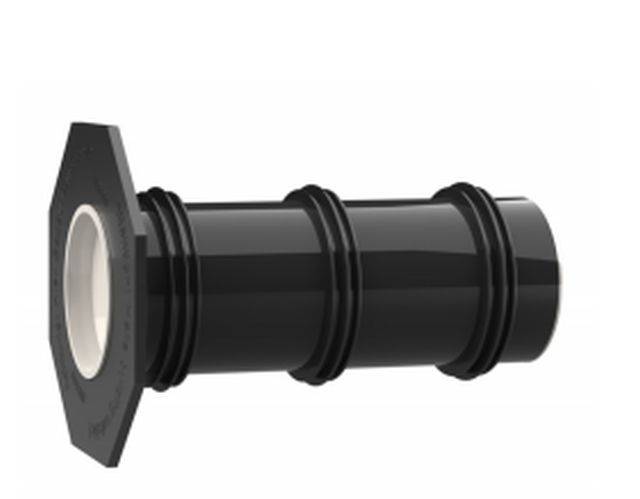

Universal pipe wall sleeve for any type of wall. It facilitates sealing in all types of wall through a combination of integrated patch flange and three-ribbed seal.

Features and benefits:

  • Integrated patch flange for the processing of plastic-modified bitumen thick coatings.
  • Lightweight.
  • Simple installation in the formwork.
  • Can be cut to length on site.
  • Can be used in all types of wall including element constructions.
  • Break-resistant, inherently stable.
  • Sealed ready for installation.

Applications:

  • For installation in any type of wall.
  • DIN 18533 W1.1-E, DIN 18533 W1.2-E and DIN 18533 W2.1-E.
  • Waterproof concrete stress class 1 and class 2 applications.

General information
Material

Pipe: Unplasticized polyvinyl chloride (PVC-U),

Integrated patch flange: Acrylonitrile butadiene styrene (ABS)

Three-ribbed seals: Ethylene propylene diene monomer (EPDM)

Closing cover: Polyethylene (PE)

Size

Wall sleeve diameter: 100/ 110 mm (inner diameter/ outer diameter)

Patch flange outer diameter: 210–227 mm

Uniclass 2015
Pr_65_52_61_63 Pipe sleevesPrimary
Specification data - Pipe sleeves
Product Reference

UFR100/200

Standard product features

Material:

  • Pipe: Unplasticized polyvinyl chloride (PVC-U),
  • Integrated patch flange: Acrylonitrile butadiene styrene (ABS).
  • Three-ribbed seals: Ethylene propylene diene monomer (EPDM).
  • Closing cover: Polyethylene (PE).

Size:

  • Wall sleeve diameter: 100/ 110 mm (inner diameter/ outer diameter).
  • Patch flange outer diameter: 210–227 mm.

Suitable wall thickness:

200 mm.

Tightness:

Gastight and watertight.
