Universal RidgeFast System

Verified by manufacturer 3 months ago

Marley Ltd

A ventilated dry ridge fixing system for use with all standard ridges, tiles and slates.

Jump to:
+44 (0)1283 722588 Website

Application

Suitable for use with all concrete tiles and slates and standard ridge tiles.

Description

A secure mechanical fixing for ridge tiles.

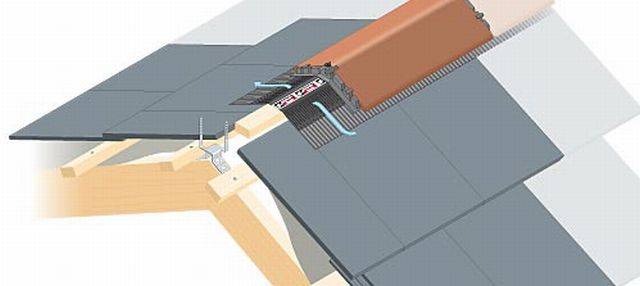

The system consists of ridge roll, ridge union straps (at ridge tile joints) and ridge batten brackets.


Features and benefits:

  • Completely dry fixed system.
  • Easy installation.
  • Provides 5 mm continuous ventilation along the ridge.
  • Provides the equivalent of 5000 mm²/lin.m.

General information

Length

6000 mm

Uniclass

Pr_35_90_93_29 Dry fixing ridgesPrimary

CAWS

H65/700 Dry ventilated ridges

H65/75 Dry ventilated ridges

Specification data - Dry fixing ridges

Ventilation opening

5000 mm²/lin. m.

Guidance for specification option:

Contact Manufacturer for any proprietary products needed when installing this system.
