UniGrip

Third party certifications:

QA Certificate
Certificate type

Pipe clamps for mechanical and plumbing services.

Jump to:

Description

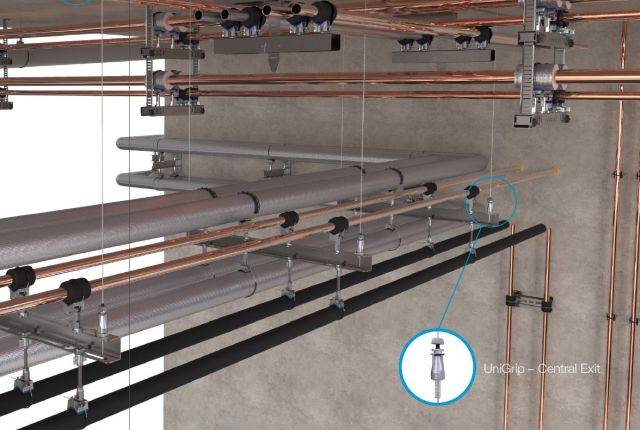

Wire rope suspension designed for the fast suspension of pipework, ductwork, heating, ventilation and air conditioning (HVAC) systems and modules including multi-tier installations.

Features and benefits:

Up to six times faster than traditional suspension systems.

Can be pre-installed to channel using pre-fitted washer/ nut or using retention clip, reducing time working at height.

Integral ergonomically designed release button allows for simple adjustment.

Button acts as a locking screw and indicator clearly highlights the wire is locked in position for ultimate security.

Variety of foot attachments available to suit applications.

General information

No. 2

M8 thread.

No. 3

M10 thread, for Central Exit, QT, Side Exit, Standard and Y-Fit only.

No. 4

M12 thread, for Central Exit only.

Material

Housing: Zinc alloy (to BS EN 12844 ZA2)

Carriage: Acetal copolymer

Wedge: Sintered steel hardened to minimum 56 Rockwell C

Button: Acetal copolymer

Uniclass 2015

Channel supports (Pr_80_77_27_15)Primary

Specification data - Channel supports

Product Reference	UniGrip - Calibra For adjustment of building services under load, side wire exit. UniGrip - Central Exit For services suspended with channel, 25 mm male thread for mechanical fixing, central wire exit. UniGrip - Hook Self-closing latch for security, designed for heating/ cooling panels and light fittings, side wire exit. UniGrip - PA For duct suspension, central wire exit. UniGrip - QT For use with Universal Brackets, quarter turn installation, central wire exit. UniGrip - Side Exit For applications in which wire cannot exit centrally, side wire exit. UniGrip - Standard For non-mechanical fixing through brackets, central wire exit. UniGrip - Y-fit, 150 mm legs For lighting or containment, side wire exit. UniGrip - Y-fit, 300 mm legs For lighting or containment, side wire exit. UniGrip - Y-fit, 500 mm legs For lighting or containment, side wire exit.
Size	No. 2 M8 thread. No. 3 M10 thread, for Central Exit, QT, Side Exit, Standard and Y-Fit only. No. 4 M12 thread, for Central Exit only.
End fixings	Insert requirement, many options available, consult manufacturer's literature for information.
Wire length	1 m 2 m 3 m 4 m 5 m 6 m 7 m 8 m 9 m 10 m 10 m + Insert requirements.
Accessories	Insert requirements, consult manufacturer's literature for information.

Standard product features	Material: Housing: Zinc alloy (to BS EN 12844 ZA2). Carriage: Acetal copolymer. Wedge: Sintered steel hardened to minimum 56 Rockwell C. Button: Acetal copolymer. Safe working load: No. 2: 55 kg (at 5:1 safety factor). No. 3: 100 kg (at 5:1 safety factor). No. 4: 250 kg (at 5:1 safety factor). Maximum off axis suspension: 15°.
Product Options	Size: Dimensions dependent on product and thread, consult manufacturer's literature for information.

Third party certifications

Lloyds: Certified

UniGrip

No. 2

No. 3

No. 4

Housing: Zinc alloy (to BS EN 12844 ZA2)

Carriage: Acetal copolymer

Wedge: Sintered steel hardened to minimum 56 Rockwell C

Button: Acetal copolymer

UniGrip - Calibra

UniGrip - Central Exit

UniGrip - Hook

UniGrip - PA

UniGrip - QT

UniGrip - Side Exit

UniGrip - Standard

UniGrip - Y-fit, 150 mm legs

UniGrip - Y-fit, 300 mm legs

UniGrip - Y-fit, 500 mm legs

No. 2

No. 3

No. 4

1 m

2 m

3 m

4 m

5 m

6 m

7 m

8 m

9 m

10 m

10 m +

Size:Dimensions dependent on product and thread, consult manufacturer's literature for information.

Size:
Dimensions dependent on product and thread, consult manufacturer's literature for information.
