UNICO Window

Verified by manufacturer 1 month ago

UNICO Fixed Glazing Window - Non-Fire Rated (Steel)

Forster Profile Systems (UK) Ltd Variant:

Metal window with thermal break.

Jump to:
+44 (0)1909 295000 Website

Application

Suitable for applications requiring glazed steel windows.

Description

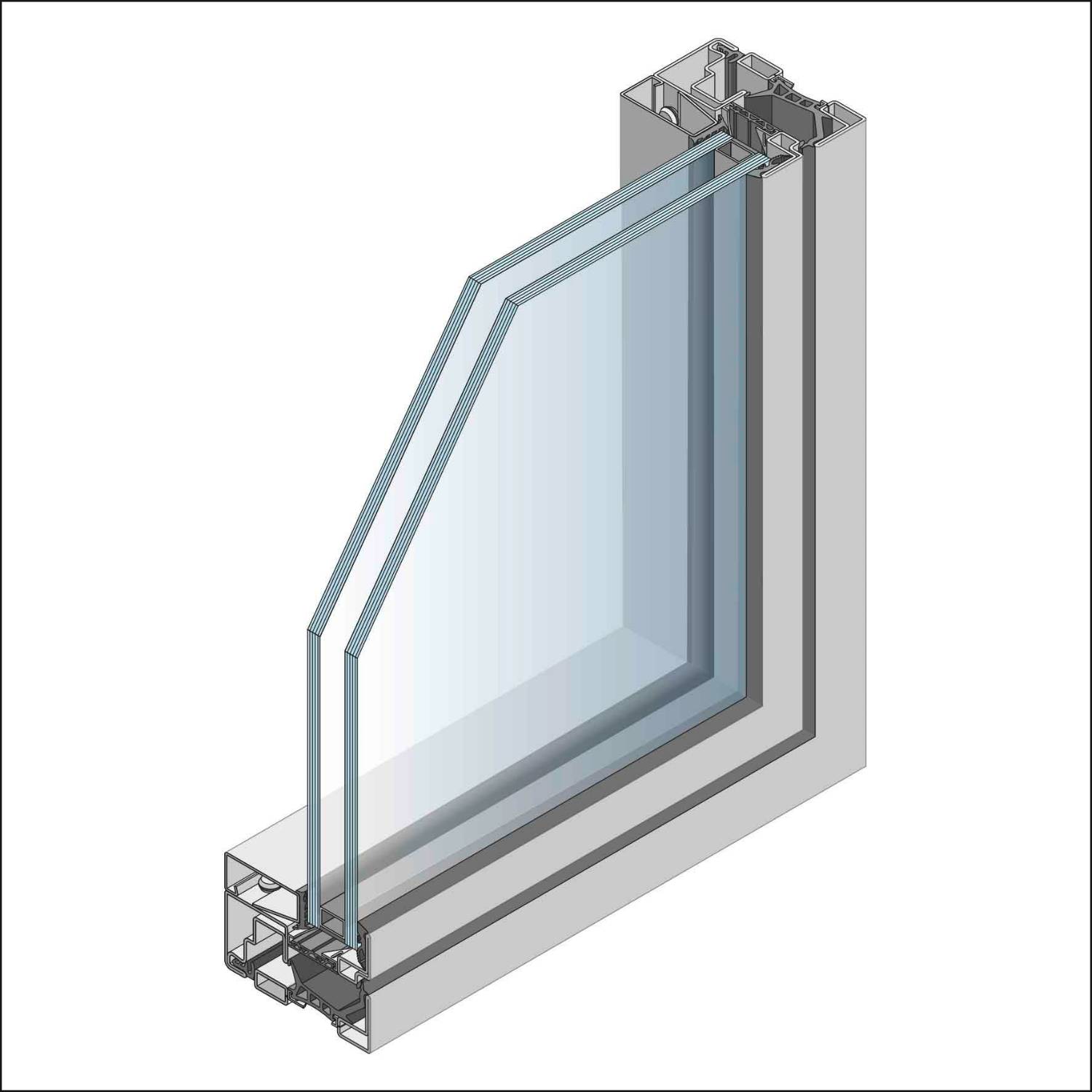

Forster unico is a thermally insulated profile system for fixed and opening windows.

The basic profiles comprise 100% recyclable steel and contain no synthetic insulating materials – in contrast to all other insulated systems. This innovation, uniquely evocative of a framework style of construction, satisfies the most stringent demands relating to physical and structural functions.


Features and benefits:

  • Facing widths of frame profiles 30 - 90 mm.
  • Narrowest facing widths for single and double vent casements from 62 mm and fixed glazing from 30 mm.
  • Compatible with Forster fire and smoke protection systems.
  • Fillings up to 60 mm (triple insulation glass).
  • Wet and dry glazing, stress-relieved and drained.
  • Stove enameling or powder coating with no temperature restrictions.
  • SHEVS according to EN 12101-2 for side-hung and tilt only windows.
  • Outward opening windows, tested in accordance with BS6375-1.
  • Parallel slide and tilt windows (PST).
  • CE marked.

General information

Material

Steel

Stainless steel

Glass

Shape

Rectangle

Square

Uniclass

Pr_30_59_98_83 Steel window unitsPrimary

CAWS

L10/20 Steel windows

L10/310 Steel windows

Specification data - Steel window units

Dimensions and configurations

Fixed.

Product performance

-

Fire performance

-

Fire resistance

Non-fire rated.

Safety

-

Security level

To BS EN 1522, Class FB4.

Environmental

-

Acoustic performance rating

Sound insulation up to 47 dB.

Thermal

-

Whole window U-value

Thermal insulation Uw >1.4 W/(m²K).

Frame

-

Material

Steel bright.

Steel galvanized.

Hardware

Concealed Forster system fittings.

Manufacturer guidance

System fittings for windows up to 150 kg.


Concealed Forster system fittings for both single and double casement of side-hung and tilt/turn windows.

Burglary resistance (to BS EN 1627)

RC4.

Bullet resistance

FB4 NS.

None.

Sustainability data

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

5 %
