Uni LL Tile
Application

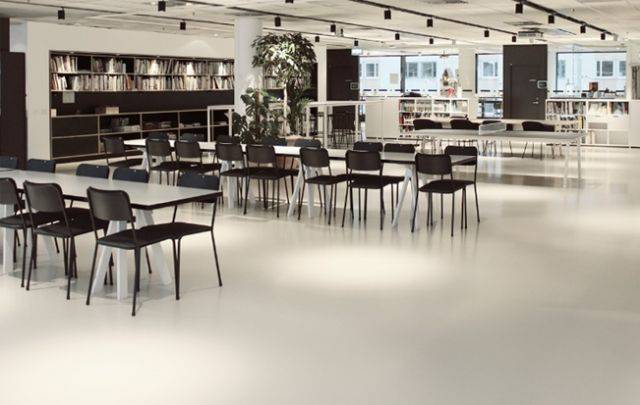

Suitable for interior use, including schools, hospitals, museums, offices and other places of work.

Description

Bold uniform colour smooth, non-slip, resilient rubber flooring tile; loose lay, and PRO surface treatment. The PRO surface treatment has UV linked polymeric coating technology. The coating finish protects the surface, improves performance and reduces the need for cleaning and maintenance.


Features and Benefits:

  • Smooth, non-slip resilient rubber flooring tile; loose lay, unicolour and PRO surface treatment.

General information

Finish

Smooth

Color

Six options.

-

Material

Rubber

Shape

Square

Size

5 x 610 x 610 mm

Uniclass 2015

Pr_35_57_71_84 Smooth rubber tilesPrimary

CAWS

M50/10 Resilient floor tiling

M50/110 Resilient floor tiling

Specification data - Smooth rubber tiles Enhanced data

Standard

To BS EN 1817 and BS EN 14041.

Use class

To BS EN ISO 10874 class 23/ 34/ 43.

Thickness

5 mm.

Colour and pattern

U00.

U17.

U21.

U27.

U54.

U99.

U105.

Product Reference

Uni LL Tile

Slip Potential - Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

Slip resistance to EN 13893 DS.

Weight

8.3 kg/m².

Hardness (to ISO 7619)

Shore 86.

Residual indentation (to EN/ISO 24343-1 (EN 433))

0.10 mm.

Abrasion resistance (to ISO 4649)

150 mm³.

Dimensional stability (to EN/ISO 23999 (EN 434))

±0.30%.

Flexibility (to EN/ISO 24344 Met. A Ø 20 mm (EN 435))

Complies.

Colour fastness to artificial light (to ISO 105-B02 Met. 3)

Complies.

Cigarette burn (to EN 1399)

Complies.

Fire behaviour (to EN 13501-1)

Class Bfl– s1.

Resistance to stains (to EN/ISO 26987 (EN 423))

Resistant.

Depending on concentration and time of contact: for specific agent contact manufacturer.

Ramp slip resistance (to DIN 51130)

R9.

Thermal resistance (to EN 12667)

0.030 m²K/W.

Thermal conductivity (to EN 12667)

0.17 W/m·K.

Electrical resistance (to EN 1081 Met. A)

>10^10 ohms.

Electrostatic charge (to EN 1815)

≤2 kV (antistatic).

Reduction of sound due to treading (to ISO 10140-3)

Up to 16 dB.

Castor chairs (to EN 425)

Suitable for W castors.

VOC emissions (CA Section 01350)

Complies.

VOC emissions (AgBB)

Complies.

Digital objects
Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
Literature
Third party certifications
  • Émissions dans l’air intérieur: A+
  • UL: GREENGUARD - Certified
  • UL: GREENGUARD Gold - Certified
  • GECA: GECA 25-2011v2 - Certified
