Description

Features:

  • Designed with heavy top rail over entire width for extra strength.
  • Both hanging and slam stiles are drilled to allow gates to be hung on the left or right.
  • Planed finish.
  • Rail and brace crossings are bolted with stainless steel bolts.
  • Top bars are chamfered.
  • Cross braced for extra strength.
  • All joints are mortised and tenoned or dowelled.

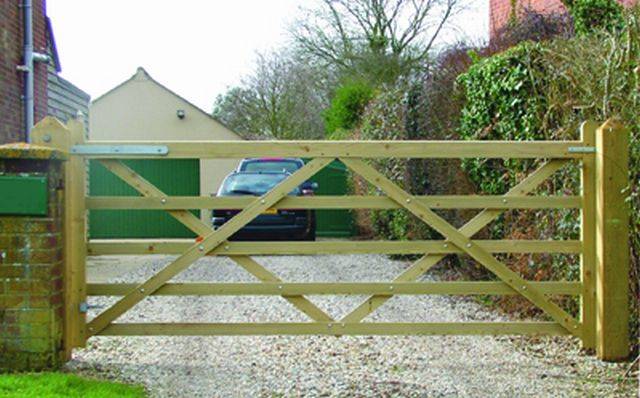

  • Commonly used as driveway gates or field gates.
  • Supplied in natural Jakcured finish.
  • All timber used through out is superior quality and guaranteed for twenty five years.

General information
Features

Designed with heavy top rail over entire width for extra strength

Both hanging and slam stiles are drilled to allow gates to be hung on the left or right

Planed finish

Rail and brace crossings are bolted with stainless steel bolts

Top bars are chamfered

Cross braced for extra strength

All joints are mortised and tenoned or dowelled

Commonly used as driveway gates or field gates

Supplied in natural Jakcured finish

All timber used through out is superior quality and guaranteed for twenty five years

Uniclass 2015
Hardwood field gate leaves (Pr_30_59_33_36)Primary
Specification data - Hardwood field gate leaves
Product Reference

Uni-gates

Type -
Narrow Uni-Gate

Not requried

255000

900 mm long x 1270mm high, with single brace.

255090

1050 mm long x 1270mm high, with single brace.

251100

1200 mm long x 1270mm high.

255200

1500 mm long x 1270mm high.

255300

1800 mm long x 1270mm high.

255400

2100 mm long x 1270mm high.

Wide Uni-Gate

Not required

255500

2400 mm long x 1270mm high

256600

2700 mm long x 1270mm high.

257700

3000 mm long x 1270mm high.

258800

3300 mm long x 1270mm high.

259900

3600 mm long x 1270mm high.

256000

3900 mm long x 1270mm high.

256100

4200 mm long x 1270mm high.

Fixing kit for single or double leaf gates TRHSSL/TRHSDL: hinges, latch and posts

Required

Not required

Product Options

Type:

  • 900–4200 mm wide.
  • Height: 1270 mm.

Fixing kit TRHSSL:

Includes galvanized fittings, hinge set, spring catch fitted, anti-lift device, padlock 2100 mm, 175 x 175 mm hanging post and 150 x 150 mm shutting post.

TRHSDL:

Includes galvanized fittings, hinge set, Loop over catch fitted, anti-lift device, padlock 2100 mm, 175 x 175 mm hanging and shutting post.
