Application

Suitable for a range of internal cleanroom applications in new build and refurbishment projects, including:

  • Pharmaceutical and bio-technology laboratories.
  • Healthcare.
  • Medical research.
  • Advanced technology facilities.

Description

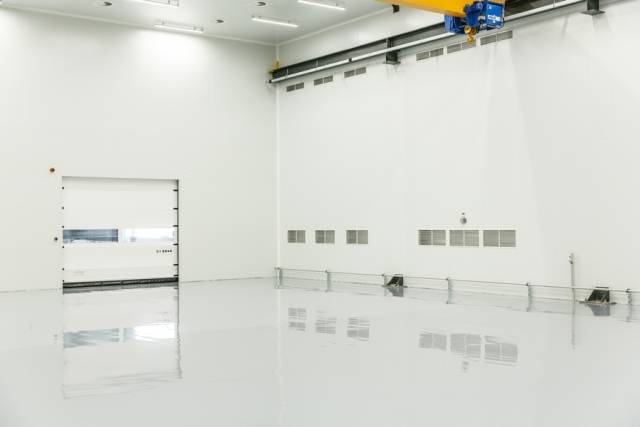

Semi-flush partition panel wall system for cleanrooms. The modular design allows truly bespoke cleanroom construction, to enable the highest levels of hygiene and contamination safety.

UltraTech systems are composed of high performance insulated panels featuring a flat non-porous surface to both sides which aids cleaning and offers high levels of resistance to mould, moisture ingress and bacterial growth, ensuring a controlled, sterile environment that minimizes airborne particles and micro-organisms.

Features and benefits:

  • Panels are available in a selection of core options.
  • All panels include a nominal gap of 2–4 mm for silicone seal.
  • Compatible with both UltraTech Precision (flush) and Versatile (semi-flush) partition panel systems. A range of co-ordinating single and double doors, windows, light fixtures and accessories is available for a fully integrated, bespoke cleanroom solution - consult manufacturer for details.
  • Fully recyclable at end of life (through conventional shredder plants).
  • Global warming potential (GWP): Low, with zero ozone depletion potential (ODP).

Panel core:

- ECOsafe polyisocyanurate (PIR):

  • Insulation core: Features an environmentally sustainable closed-cell PIR insulation core which is non-deleterious with zero ozone depletion potential (zero ODP).
  • Biological: Resistant to attack from mould, fungi, mildew and vermin. No urea formaldehyde is used in the manufacture of the panels. Panels can incorporate project-specific HYGIENEsafe, wash and clean down facings.
  • Panel joint: Engineered joint which achieves excellent air leakage, thermal and structural performance. The panel side joint can accommodate vapour, hygiene and fire rated seals and can be silicone sealed for regulatory compliance.

- Mineral fibre (MF):

  • Designed for cleanrooms where fire safety is important.
  • Insulation: Features a core consisting of vertically-oriented mineral fibres. As a result of this orientation, the panels provide excellent mechanical properties (high tensile and compression strength).
  • Biological: Resistant to attack from mould, fungi, mildew and vermin. No urea formaldehyde is used in the manufacture of the panels. Panels can incorporate project-specific HYGIENEsafe, wash and clean down facings.
  • Panel joint: Features an aluminium perimeter profile on all sides to create a fully flush joint. The panel side joint can accommodate a hygienic silicone seal. The cavity created between wall panels allows for a concealment of services.

- QuadCore™:

  • Biological: Normally resistant to attack from mould, fungi, mildew and vermin. No urea formaldehyde is used in the manufacture of the panels. Panels can incorporate project-specific HYGIENEsafe, wash and clean down facings.

Applications:

Suitable for a range of internal cleanroom applications in new build and refurbishment projects, including:

  • Pharmaceutical and bio-technology laboratories.
  • Healthcare.
  • Medical research.
  • Advanced technology facilities.

Related products:

A range of compatible products are available, to be specified separately. These include:

  • Precision flush suspended ceiling systems.
  • Versatile semi-flush suspended ceiling systems.
  • Precision flush doors (single, double and sliding).
  • Versatile semi-flush doors (single, double and sliding).
  • Windows/ vision panels.
  • Emergency escape panels.

Note that Precision and Versatile products can be combined with a flush interface via the use of male/ female extruded aluminium (6060 T5) interface profiles. Available for 60 and 80 mm-thick panels only, consult manufacturer for details.

Accreditations:

  • Compliant with cGMP and ISO 14644 Cleanrooms and Associated Controlled Environments standards.
  • Fully complies with the appropriate National Building Regulations.
  • LPCB certified to LPS 1208: FR30 and FR60 - Walls and Ceilings (depending on the panel choice).
  • Compliant with ISO 9001 (Quality), ISO 14001 (Environmental) and OHSAS 18001 (Health and Safety).
  • May be Green Guide A+ rating as per the BRE Global Green Guide to Specification, subject to project specific assessment.

General information
Specification data - Plasterboard panel partition systems
Product Reference

UltraTech Versatile Partition Panel System

Panel -
Core

ECOsafe polyisocyanurate (PIR)

Mineral fibre, MF 50C

Mineral fibre, MF 50F

QuadCore™

Thickness

50 mm

Not available with Mineral fibre.

60 mm

80 mm

100 mm

120 mm

Not available with ECOsafe PIR/ QuadCore™.

125 mm

Not available with Mineral fibre.

150 mm

170 mm

Not available with ECOsafe PIR/ QuadCore™.

175 mm

Not available with Mineral fibre.

200 mm

220 mm

Not available with Mineral fibre.

240 mm

Not available with ECOsafe PIR/ QuadCore™.

300 mm

Not available with ECOsafe PIR/ QuadCore™.

Panel size -
Length

Available 300–5700 mm; insert requirement or drawing reference.

Width

As standard

1100 mm for ECOsafe PIR/ QuadCore™; 1170 mm for Mineral fibre.

1120 mm

Mineral fibre only.

Bespoke

Insert requirements.

Coating -
Type

As partition panel system

Not required

Kingspan CLEANsafe 25

Kingspan CLEANsafe 55

Kingspan CLEANsafe 120

Kingspan CLEANsafe 316

Kingspan HYGIENEsafe

Colour

Not required

Kingspan CLEANsafe 316/ Kingspan HYGIENEsafe.

RAL 9002

RAL 9010

Bespoke

Consult manufacturer and insert requirements.

De-ended panels

Required

60/ 80 mm-thick ECOsafe PIR/ QuadCore™ composite panels only.

Not required

Wall panel options -
Pre-formed corner panels

Not required

Required

Wall corner profiles -
Type

Not required

Two-way profile

80 mm-thick panels only.

Three-way profile

80 mm-thick panels only.

Four-way profile

80 mm-thick panels only.

Colour

RAL 9002

RAL 9010

Coating

Not required

HYGIENEsafe anti-bacterial coating

Not available for PVC coving.

Service conduits -
Type

Not required

Horizontal configuration

Vertical configuration

Colour

RAL 9002

RAL 9010

Coating

Not required

HYGIENEsafe anti-bacterial coating

Not available for PVC coving.

Electrical raceway -
Type

Not required

Horizontal configuration

Vertical configuration

Colour

RAL 9002

RAL 9010

Coating

Not required

HYGIENEsafe anti-bacterial coating

Not available for PVC coving.

Flooring profile

Aluminium, adjustable

Polyester, non-adjustable

Coving -
Type

Not required

Refer to ceiling system specification

Aluminium, 40 mm radius

Aluminium, 45 mm radius

Polyvinyl chloride (PVC), 55 mm radius

Colour

RAL 9002

RAL 9010

Coating

Not required

HYGIENEsafe anti-bacterial coating

Not available for PVC coving.

Product Options

Panel:

- Weight:

  • Aluminium honeycomb (60 mm-thick panel): 14 kg/m².
  • ECOsafe PIR: 18 kg/m².
  • QuadCore™: Consult manufacturer's literature.
  • Mineral fibre: 21 kg/m².

- Thermal conductivity:

  • Aluminium honeycomb: Consult manufacturer for details.
  • ECOsafe PIR: 0.019 W/m·K.
  • Mineral fibre: 0.041 W/m·K.
  • QuadCore™: Consult manufacturer's literature.

- Thermal transmittance (U-value):

  • Aluminium honeycomb: 2.87 W/m²K.
  • ECOsafe PIR: 0.47 W/m²K (60 mm-thick); 0.36 W/m²K (80 mm-thick).
  • Mineral fibre: 0.62 W/m²K (60 mm-thick); 0.47 W/m²K (80 mm-thick).
  • QuadCore™: Consult manufacturer's literature.

- Thermal resistance (R-value):

  • Aluminium honeycomb: 0.34 m²K/W.
  • ECOsafe PIR: 2.12 m²K/W (60 mm-thick); 2.77 m²K/W (80 mm-thick).
  • Mineral fibre: 1.61 m²K/W (60 mm-thick); 2.12 m²K/W (80 mm-thick).
  • QuadCore™: Consult manufacturer's literature.

- Substrate:

  • Hot dipped S220GD + Za zinc / aluminium coated metal to EN 10326 (continuously hot-dip coated strip and sheet of structural steels, technical delivery conditions).
  • Metallic protected steel to BS EN 10346:2009.
  • Nominal thickness: Interior/ exterior 0.5 mm or 0.63 mm.

- Fire performance:

Consult manufacturer's literature for details.

- Acoustic performance:

Consult manufacturer's literature for sound reduction index (SRI) details.

  • Mineral fibre panels have a predicted single figure weighted sound reduction Rw = 31 dB.
  • ECOsafe PIR panels have a predicted single figure weighted sound reduction Rw = 24 dB.

- Airtightness (at 50 Pa in accordance with EN 14509):

Aluminium honeycomb/ ECOsafe PIR/ Mineral fibre: 0.003 m³/hr/m².

- Watertightness (according to EN 14509):

All panels are watertight to 1050 Pa (Class B).

Coating:

- Kingspan CLEANsafe 25:

Polyester coating suitable for moderately aggressive internal environments, providing good chemical and humidity corrosion resistance.

  • Polyester coating thickness: 25 μm.
  • Nominal thickness: 0.63 mm (including coating).
  • Protection film: Yes (standard).

- Kingspan CLEANsafe 55:

Chemically inert colaminated polyethylene terephthalate (PET) film and polyester (PE) paint, applied to pre-treated metal, suitable for humid and chemically aggressive internal environments.

  • PET film thickness: 55 μm.
  • Nominal thickness: 0.63 mm (including coating).
  • Protection film: Yes (standard).
  • Tested by STERIS Corporation Life Sciences for compatibility (see below for details).

- Kingspan CLEANsafe 120:

Chemically inert polyvinyl chloride (PVC) film, laminated to pre-treated metal, suitable for internal for controlled environments. Joints between panels can be either caulked or chemically cold-welded. Tested by STERIS Corporation Life Sciences for compatibility.

- Kingspan CLEANsafe 316:

Cold rolled annealed austenitic stainless steel, suitable for corrosive internal environments.

  • Material: Mill finish stainless steel, grade 316.
  • Finish: 2B (smooth, unpolished).
  • Nominal thickness: 0.63 mm.
  • Protection film: Yes (standard).

- Kingspan HYGIENEsafe:

Chemically inert, antibacterial coating. A rigid polyvinyl chloride (PVC) phthalate-free coating applied to pre-treated metal and suitable for humid and chemically aggressive internal environments.

  • PVC rigid film thickness: 120 μm.
  • Nominal thickness: 0.63 mm (including coating).
  • Protection film: Yes (standard).

Compatibility with STERIS products:

Selected Kingspan panel coatings (see above) have been tested by STERIS Corporation Life Sciences for compatibility. A range of STERIS cleaning agents commonly used in the pharmaceutical industry were selected and no adverse reactions with the Kingspan panel coating were reported. The range of cleaning agents used in the tests were:

  • DI Water.
  • Environ™ LpH™ Phenolic disinfectant.
  • Environ™ Vesphene™ disinfectant.
  • Septihol® Sterile Alcohol Solution.
  • Spor-Klenz® RTU cold Sterilant.
  • Vesta-Syde® SQ Quaternary disinfectant.

Contact manufacturer's technical department for details.

Wall panel options:

- Pre-formed corner panels:

Provides a flush finished external corner detail, therefore no flashing is required. Maximum width: Pre-formed corner panels finished on two sides: 1000 mm; finished on one side: 1200 mm. Available in lengths up to 3.4 m.

- Wall corner profiles:

Standard length: 3–4 m; specific lengths available on request. All profiles include folded aluminium angle brackets (50 x 50 x 3 mm).

  • Two-way profile: Extruded 3 mm-thick aluminium; 150 x 150 x 80 mm; 3.8 kg/m.
  • Three-way profile: Extruded 3 mm-thick aluminium; 200 x 150 x 80 mm; 6.04 kg/m.
  • Four-way profile: Extruded 3 mm-thick aluminium; 200 x 200 x 80 mm; 7.1 kg/m.

- Integrated conduits:

25 mm diameter rigid unplasticized polyvinyl chloride (PVC-U) conduits, 260 mm from panel ends. Third conduit (1200 mm-wide only) 600 mm from panel ends.

- Service conduits:

  • Provides a flush interface between wall panels where a service cavity is required. Each conduit is formed from 3 mm-thick extruded aluminium (6060 TS).
  • Horizontally-configured conduits include a central stiffener plate.
  • Dimensions: 60 mm-wide panels: 150 x 60 mm; 80 mm-wide panels: 200 x 80 mm.
  • Standard length: 3–4 m; specific lengths available on request.
  • Requires male or female interface profiles to correspond with adjacent panels.

- Electrical raceway:

  • Provides a flush interface between the UltraTech panel and electrical services.
  • Horizontally-configured raceways include a central stiffener plate.
  • Electrical accessories to be supplied by others. Compatible with the Legrand Mosaic 45 (or similar) range of sockets (European, UK or US), switches, RJ45 or USB sockets, LEDs, and more.
  • HYGIENEsafe coating can be married with Legrand Mosaic 45 anti-bacterial range.
  • Standard length: 3–4 m; specific lengths available on request.

- Flooring profile:

- Aluminium, adjustable:

  • Provides a fully flush wall panel-to-floor detail and is fully demountable.
  • Suitable for both vinyl and epoxy floor finishes.
  • Allows for a silicone seal finish between the wall panels and floor finishes.
  • Height: Adjustable from 100 to 130 mm.
  • Width: 60 mm-wide panels: 50 mm; 80 mm-wide panels: 70 mm.
  • Top profile is pre-punched with slots for levelling adjustment; these slots provide access to the M10 adjustment jacks.
  • Recessed top section of the flooring profile provides additional space for cables/ services.
  • Standard length: 6 m.

- Polyester, non-adjustable:

  • Fibre-reinforced polyester profile.
  • Normally installed recessed (4 mm each side) from the wall panel facings in order to allow for a seamless finish between the wall panel system and the vinyl or epoxy flooring.
  • Standard length: 6 m.

Coving:

- Aluminium:

  • Aluminium alloy internal corner coving profiles allow for a silicone seal finish. Aluminium pre-coving is screw fixed to the cleanroom ceiling and wall panels. The powder coated finished coving is then clipped into the pre-coving.
  • Coving profiles interface with internal three-way corner profile.

- PVC:

  • Internal corner coving has been designed to be fixed to a three-way corner profile and to interface with 55 mm PVC or 45 mm radius aluminium coving profiles.
  • PVC covings have soft edges at the wall panel junction.
