UltraTech Technical Panel
Application

Specifically designed for use within cleanroom environments where piping or cabling/ wiring need to be accessible for maintenance.

Description

Sealed, modular, non-loadbearing wall panels designed to provide a maintenance accessible space within the cleanroom wall panel.

Features and benefits:

  • Will integrate directly into UltraTech Precision (flush) wall panel systems, and into UltraTech Versatile (semi-flush) wall panel systems with the inclusion of panel interface profiles.
  • Each panel is pre-fabricated and consists of two reinforced 0.63 mm-thick steel facings.
  • The edges of the two skins are pressed to and bonded to the extruded aluminium frame to all sides, creating a monobloc panel construction with smooth, seamless edges.

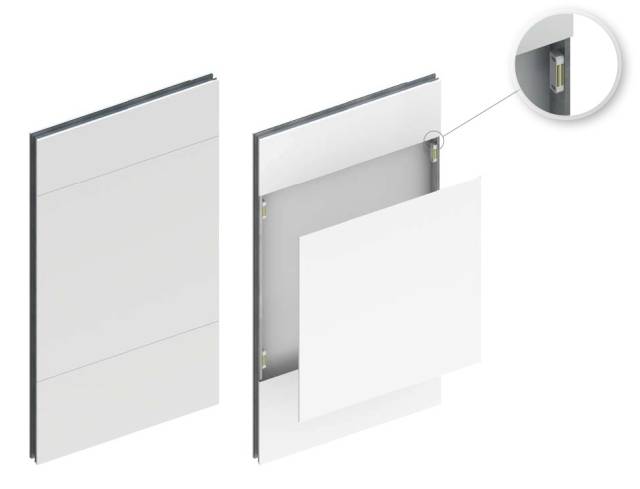

  • Supplied with a factory engineered, demountable panel facing held to the panel frame by recessed magnets.

Applications:

Specifically designed for use within cleanroom environments where piping or cabling/ wiring need to be accessible for maintenance.

General information

Uniclass 2015

Pr_30_59_36_01 Access panelsPrimary

CAWS

K30/10 Relocatable partition system

K30/130 Relocatable partition system

K30/135 Relocatable partition/ Ceiling system

Specification data - Access panels

Product Reference

UltraTech Technical Panel

Thickness

60 mm

80 mm

Width

300 mm

600 mm

900 mm

Bespoke

Insert requirement; available 300–1200 mm.

Length

Available 300–1200 mm; insert requirement or drawing reference.

Demountable access panel

-

Height

Insert requirement.

Panel interface profile

Not required

Required

For integration into UltraTech Precision partition panel systems only.

Coating

-

Type

As partition panel system

Not required

Kingspan CLEANsafe 25

Kingspan CLEANsafe 55

Kingspan CLEANsafe 120

Kingspan CLEANsafe 316

Kingspan HYGIENEsafe

Colour

Not required

Kingspan CLEANsafe 316/ Kingspan HYGIENEsafe.

RAL 9002

RAL 9003

Kingspan CLEANsafe 120 only.

RAL 9010

Bespoke

Consult manufacturer and insert requirements.

Standard product features

Panel material:

0.63 mm S220GD+ZA hot-dip zinc/ aluminium coated steel to EN 10346: 2009.

Panel joint:

Self-supporting extruded aluminium frame to all sides. Panels are installed using a connection profile between each panel. The visible facing gaps between panels are sealed after installation.

Construction:

- Reinforcement (dependent on thickness):

Panels are reinforced using 11.6 mm polypropylene honeycomb board, firmly bonded to the panel skins and reinforced with aluminium stiffeners.

- Frame:

Constructed from 2 mm-thick extruded 6063 aluminium alloy to form a frame to all sides. Each frame is cut to length using a computerized saw for a perfect mitred corner joints, forming a neat butt joint connection between each section.

Product Options

Demountable access panel:

Width to match main panel thickness.

Coating:

- Kingspan CLEANsafe 25:

Polyester coating suitable for moderately aggressive internal environments, providing good chemical and humidity corrosion resistance.

  • Polyester coating thickness: 25 μm.
  • Nominal thickness: 0.63 mm (including coating).
  • Protection film: Yes (standard).

- Kingspan CLEANsafe 55:

Chemically inert colaminated polyethylene terephthalate (PET) film and polyester (PE) paint, applied to pre-treated metal, suitable for humid and chemically aggressive internal environments.

  • PET film thickness: 55 μm.
  • Nominal thickness: 0.63 mm (including coating).
  • Protection film: Yes (standard).
  • Tested by STERIS Corporation Life Sciences for compatibility.

- Kingspan CLEANsafe 120:

Chemically inert polyvinyl chloride (PVC) film, laminated to pre-treated metal, suitable for internal for controlled environments. Joints between panels can be either caulked or chemically cold-welded. Tested by STERIS Corporation Life Sciences for compatibility.

- Kingspan CLEANsafe 316:

Cold rolled annealed austenitic stainless steel, suitable for corrosive internal environments.

  • Material: Mill finish stainless steel, grade 316.
  • Finish: 2B (smooth, unpolished).
  • Nominal thickness: 0.63 mm.
  • Protection film: Yes (standard).

- Kingspan HYGIENEsafe:

Chemically inert, antibacterial coating. A rigid polyvinyl chloride (PVC) phthalate-free coating applied to pre-treated metal and suitable for humid and chemically aggressive internal environments.

  • PVC rigid film thickness: 150 μm.
  • Nominal thickness: 0.63 mm (including coating).
  • Protection film: Yes (standard).
