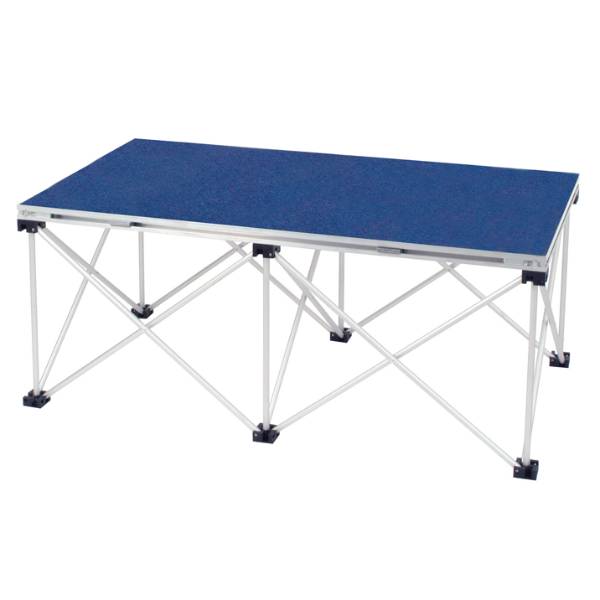

Ultralight Staging: UL/BC
Verified by manufacturer 2 months ago
Lightweight modular staging object available in a range of colours and heights.
Application
Suitable for use in function and multi-purpose areas.
Description
Lightweight modular staging object available in a range of colours and heights.
Features and benefits:
- Ultralight, flexible staging solution.
- Utilizing lightweight aluminium for the supporting stage risers and stage deck frame.
- All components are light to handle and easy to transport, yet very strong and robust.
- Can create a multitude of stage configurations from the selection of seven deck sizes and five riser heights.
- Tested by TUV to GS Standard GS 5376.
- A range of accessories are available including storage trolleys, guardrail, valance and stage levellers.
- Available in a choice of carpet colours or black vinyl.
- One person assembly.
Carpet colours: Anthracite Grey, Chianti Red, Sapphire Blue and Moss Green.
Vinyl options: Standard black and heavy duty black.
Deck weight 1000 x 520 mm:
- Carpet 4.50 kg.
- Vinyl standard 5.00 kg.
- Vinyl heavy duty 7.50 kg.
Riser weights: 1.50– 3.00 kg.
General information
Color | Grey Red Blue Green Black Manufacturer guidanceSapphire. Black Vinyl. Chianti Red. Moss Green. Anthracite Grey. |
Material | Aluminium Guidance for specification option: Frame. Plastic Vinyl Carpet Plywood |
Shape | Rectangle |
Length | 1000 mm |
Width | 520 mm |
Height | 150 mm 200 mm 300 mm 400 mm 600 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N10/178 Demountable podia and staging |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | Aluminium deck edge and riser and plastic components |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | Revit 2017 | 2 |
