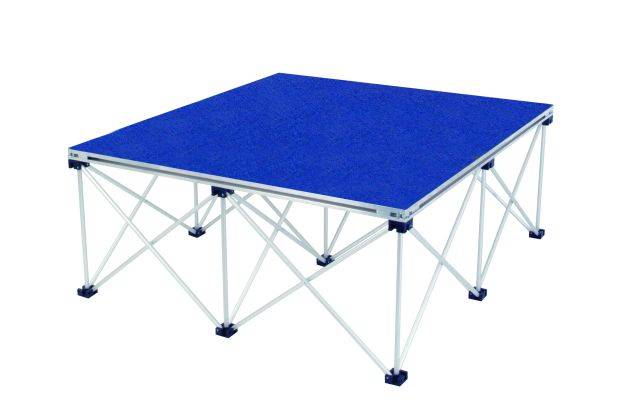

Ultralight Staging: UL/BB

Verified by manufacturer 20 days ago

Gopak Ltd

Lightweight modular staging object available in a range of colours and heights.

Jump to:
BOS
0800 195 4255 Website

Application

Suitable for use in function and multi-purpose areas.

Description

Lightweight modular staging object available in a range of colours and heights.


Features and benefits:

  • Ultralight, flexible staging solution.
  • Utilizing lightweight aluminium for the supporting stage risers and stage deck frame.
  • All components are light to handle and easy to transport, yet very strong and robust.
  • Can create a multitude of stage configurations from the selection of seven deck sizes and five riser heights.
  • Tested by TUV to GS Standard GS 5376.
  • A range of accessories are available including storage trolleys, guardrail, valance and stage levellers.
  • Available in a choice of carpet colours or black vinyl.
  • One person assembly.

Carpet colours: Anthracite Grey, Chianti Red, Sapphire Blue and Moss Green.


Vinyl options: Standard black and heavy duty black.


Deck weight 1000 x 1000 mm:

  • Carpet 7.50 kg.
  • Vinyl standard 8.50 kg.
  • Vinyl heavy duty 12.00 kg.

Riser weights: 2.00–4.00 kg.

General information

Color

Grey

Red

Blue

Green

Black

Manufacturer guidance

Sapphire.

Black Vinyl.

Chianti Red.

Moss Green.

Anthracite Grey.

Material

Aluminium

Guidance for specification option:

Frame.

Plastic

Vinyl

Plywood

Carpet

Shape

Rectangle

Length

1000 mm

Width

1000 mm

Height

150 mm

200 mm

300 mm

400 mm

600 mm

Warranty description

Five year

Uniclass

Pr_40_30_25_21 Demountable podiums and stagingPrimary

CAWS

N10/178 Demountable podia and staging

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

Aluminium deck edge and riser and plastic components

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

2

Revit

Revit 2017

2
