UltraCool-IR70 Light Blue IR & UV Blocking Solar Control Film
Verified by manufacturer 5 months ago
BS EN 13501-1
Certificate type

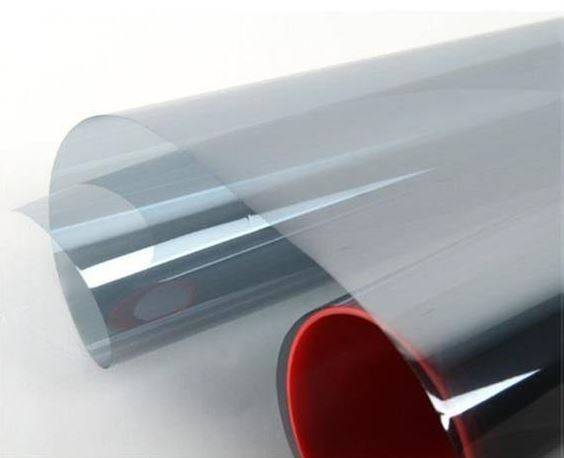

A premium grade very light blue nano ceramic polyester film.
Application
Interior applications.
Description
A premium grade very light blue nano ceramic polyester film with spectrally selective IR blocking properties.
Features and benefits:
- Highly visible.
- Good heat reduction.
- Manufactured with a silicone liner, which protects the clear, pressure-sensitive adhesive.
- Supplied in fixed roll width of 60” (152.4 cm).
- Made from 51 µm-thick polyester.
This product meets ASTM E84 and is classified as Class A as defined in NFPA 101, Life Safety Code®.
General information
Color | Clear Blue |
Finish | Smooth |
Material | Polyester |
Width | 1524 mm |
Warranty description | Five year |
Uniclass | |
CAWS | L40/95 Window film L40/610 Window film |
Product range |
Specification data - Plastics window films
Purpose | Solar control. |
Material | Polyester. |
Colour | Light blue. |
Dimensions | 1524 mm.Guidance for specification option: Fixed roll width. |
Fire performance | To BS EN 13501-1:2018, Class B, s1, d0. |
Adhesive | Clear pressure-sensitive. |
Film thickness | 51 µm Guidance for specification option: 51 micron Polyester. |
ShadingCoefficient | 0.54. |
Glare reduction | 16%. |
VisibleLightTransmittance | 84%. |
UV Transmission | 1%. |
Light reflectance | 3.8%. |
SolarAbsorption | 34%. |
ThermalIrTransmittance | 33%. |
Solar Energy Rejected | 51%. |
Release Liner | Silicone coated. |
Sustainability data
Country of material origin | United States |
Country of product manufacture | United States |
Material | Polyester |
Manufacturing plant location | |
Expected Life | Ten year Guidance for specification option: Up to ten years. |
Third party certifications
BS EN 13501-1
Solyx Polyester Fire Certificate
