Ultimate High-Security Curtain Walling (HVM) - Hostile Vehicle Mitigation LPS1175 SR3
Verified by manufacturer 5 days ago
LPCB Certification
Certificate type
High-security, bespoke curtain walling solution.
Application
Bespoke curtain walling solution suitable for military applications as well as for use in high security areas such as government buildings, petrochemical plants, banks, airports and embassies. Other possible applications include:
- Commercial offices.
- Skyscrapers.
- Chemical and petrochemical buildings.
- Oil and gas buildings.
- Logistics and transport centres.
- Data centres.
- Retail.
- Safe rooms.
- Safe storage rooms.
Description
Curtain walling systems are non-structural cladding systems which are designed to act as a barrier between the outdoor environment and the interior of a building, giving it full protection from the elements and blast attacks. Installing bespoke curtain walling systems significantly reduces the risk of commercial buildings facing damage during the event of an environmental storm or a blast attack which can also prevent from being subject to the crippling financial and timely cost of repairs and refits.
Features and benefits:
- Expert engineers can tailor curtain walling systems' setting specifications, appearances, visual design and assembly requirements to fully suit project needs.
- Systems undergo rigorous testing to ensure they meet the highest safety standards.
- Successfully pass EXV 15, EXV 15, and ISO 16933:2007 tests, which evaluate resistance to explosions and blasts.
- Ballistic performance to BS EN 1522 and BS EN 1523, FB2, FB4, FB6 and FB7.

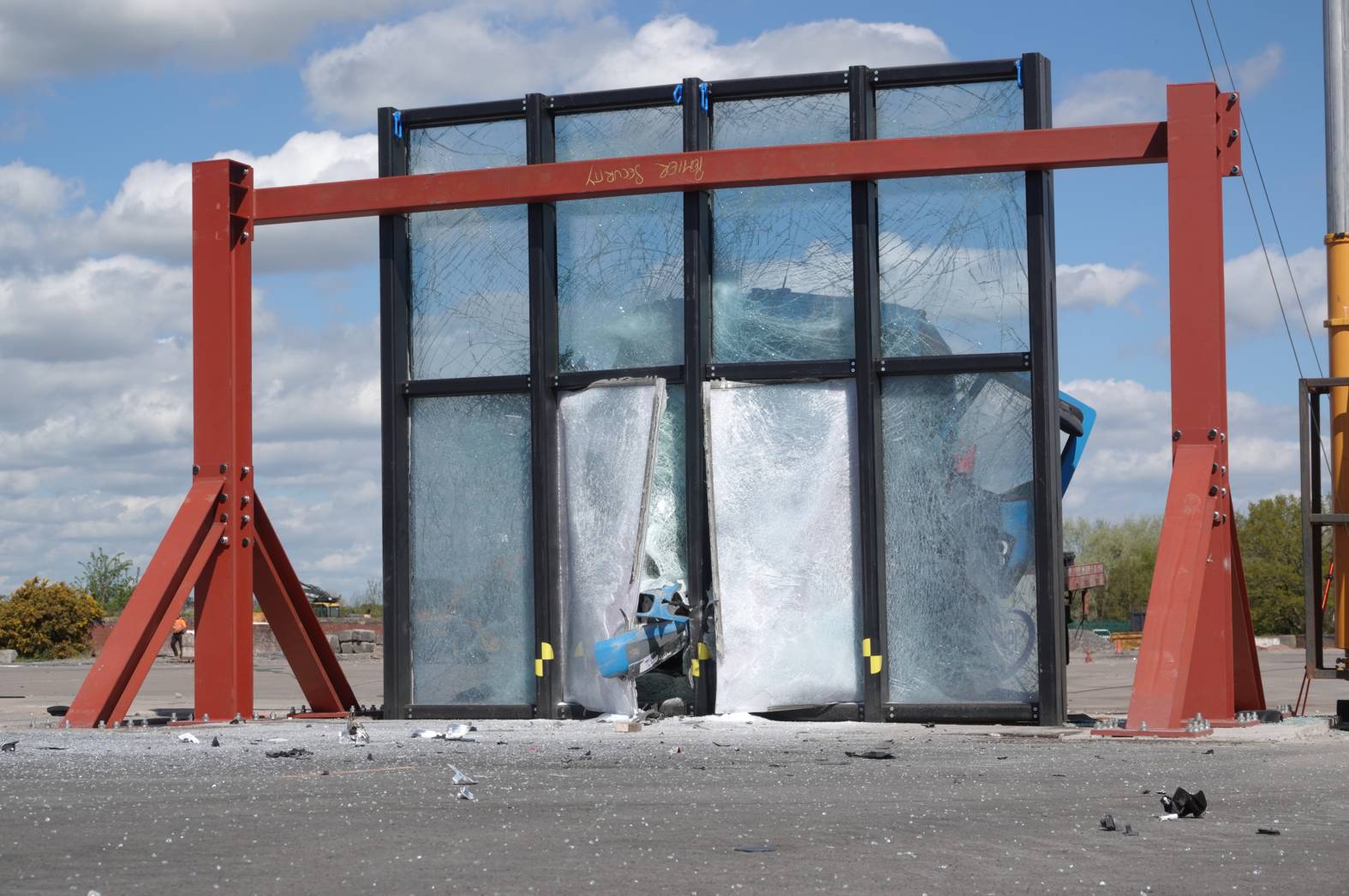

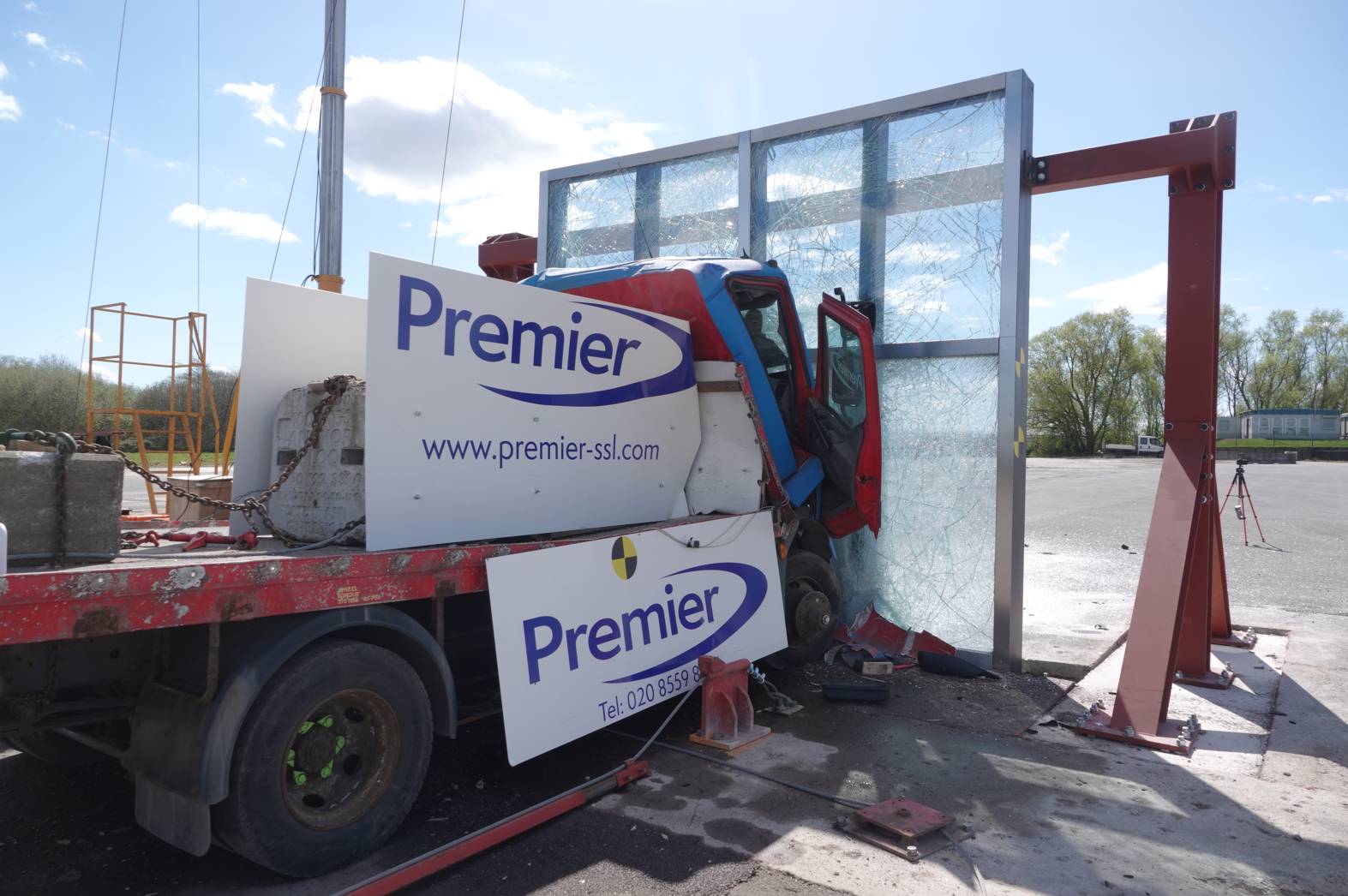

- HVM: Crash Tested.
- U values as low as 0.5.
General information
Color | Other |
Finish | Powder-coated |
Material | Steel Glass |
Shape | Rectangle Square Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H11/110 Curtain walling |
Specification data - Stick curtain walling systems
Classification data | |
System performance | Security performance to LPS 1175, B3-E10. |
Framing | |
Frame members | Steel curtain wall frame sections. |
Frame accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Fasteners | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Cladding units | |
Fasteners | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Perimeter seals | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
System accessories | Manufacturer guidanceConsult manufacturer and insert requirements or omit. |
Ballistic performance | To BS EN 1522 and BS EN 1523, FB2, FB4, FB6 and FB7. |
Blast performance | EXV 25-10. |
Performance characteristics | To ISO 22343-1, Barrier V/7200[N2A]/64/90:0.0/0.0. |
Weather resistance | 256 MPH (8 kPA). Guidance for specification option: Hurricane resistant. |
Watertightness | ≤6 kPA. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Steel Glass |
Recyclability | 98 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 99 % |
Product certifications
LPCB Certification
LPCB® Certificate of Approval - Ultimate High-Security Curtain Walling (HVM)
