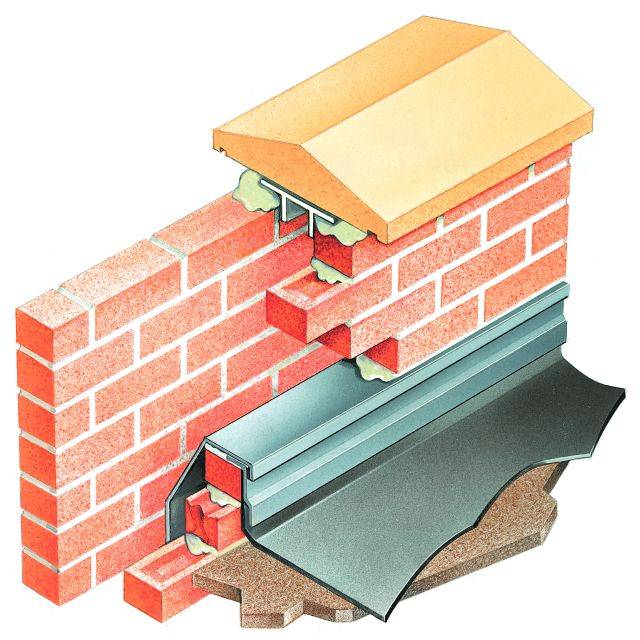

Type P Cavitray

Application

To weatherproof parapet walls.

Description

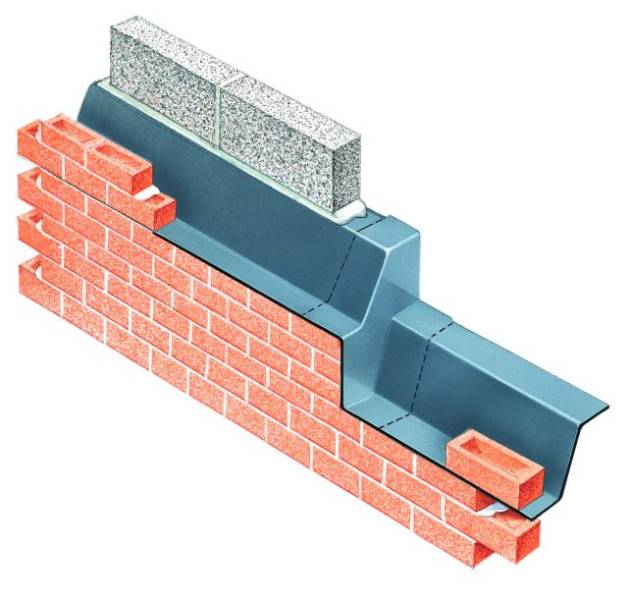

Preformed self-supporting, rigid, horizontal cavity tray for use in parapet walls.


Features and Benefits:

  • Building only into roof facing leaf enhances structural stability of parapet over traditional through-wall details.
  • Preformed internal and external angles available.
  • DPC integrity regardless of wind direction.
  • Various non-standard masonry leaf leg lengths, cavity widths and other configurations can be accommodated.

General information

Color

Black

Material

Polypropylene

With securtex finished.

Uniclass 2015

Pr_25_57_21_66 Preformed cavity traysPrimary

CAWS

F30/370 Preformed cavity trays

F30/385 Junction cloaks/ stop ends for preformed dpcs/ cavity trays

F30/56 Preformed cavity trays

Specification data - Preformed cavity trays Enhanced data

Material

Polypropylene.

To fit cavity width

50 mm.

___ mm.

Length (effective)

2400 mm.

Tray length.

Product Reference

Type P Cavitray

Location

As drawing ___.

Internal and external angles

Required.

Not required.

Angle returns

450 mm.

Return lengths.

Cavity upstand

100 mm.

Masonry leaf base length

110 mm.

Thickness

2 mm.

Literature

Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)

Protecting the Building Envelope Volume 28 (cavity tray, damp proofing, ventilation and cavity closers)

Similar products from Cavity Trays Ltd

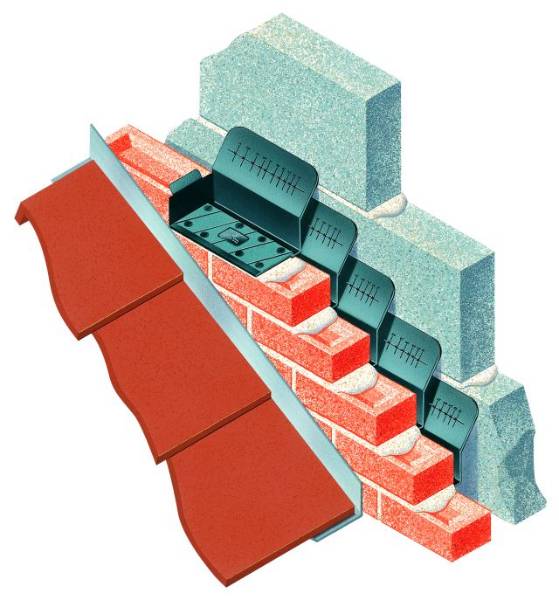

Advantage Range Unleaded Gable Abutment Trays

Advantage Range Unleaded Gable Abutment Trays

Cavicloaks and Cavilengths

Cavicloaks and Cavilengths

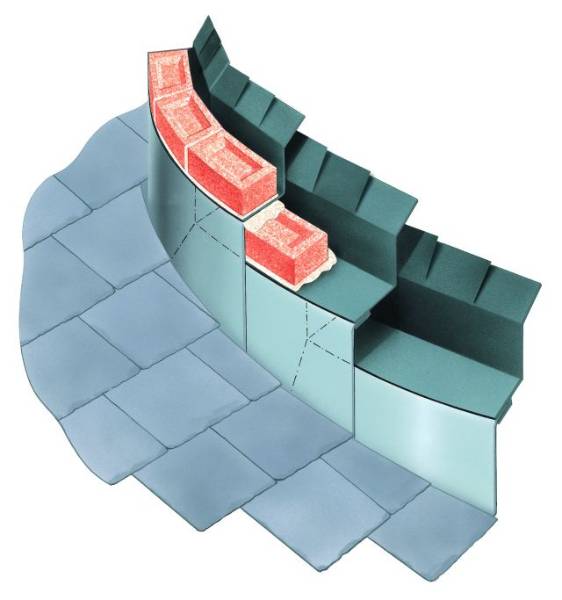

Curved Cavitray On Plan

Curved Cavitray On Plan

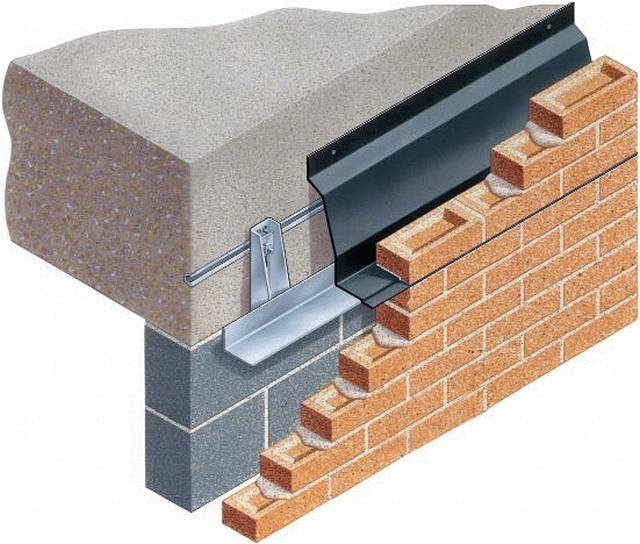

Masonry Support Cavitray System

Masonry Support Cavitray System

Sash Frame DPC

Sash Frame DPC

Type B Vertical DPC Cavitray

Type B Vertical DPC Cavitray

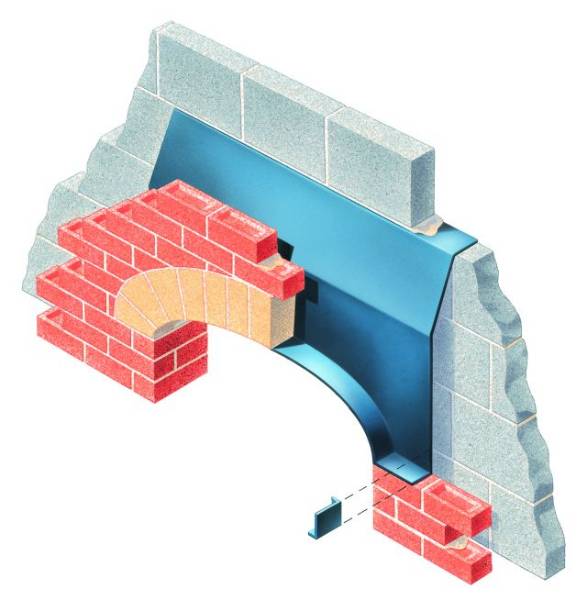

Type BA Cavity Barrier Arch
