Type BL-WH (Mild Steel)
Verified by manufacturer 2 months ago
BL-S-WH1
BL-S-WH1

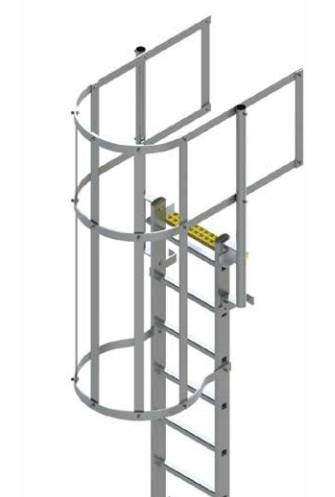

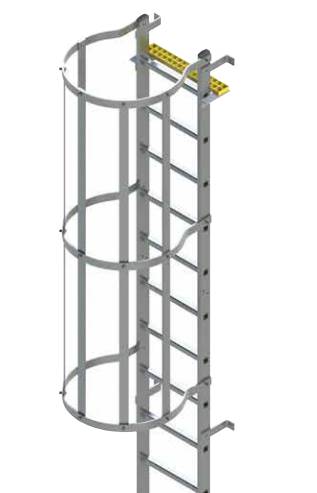

Industrial standard mild steel fixed vertical ladder with safety cage, in lengths between 2.0 and 6.0 metres (other sizes to order).
Application
Suitable for industrial use when moving between platforms at differing heights and ensuring the safety of those on site.
Description
Galvanized steel, industrial standard fixed vertical ladder, available to suit floor to ceiling heights of between 2–6 m (special sizes available upon request), supplied with a fixed safety cage designed to sit below a roof access hatch.
Features and benefits:
- Manufactured to meet the requirements of BS 4211.
- LadderUP® safety post also available for use with the ladder.

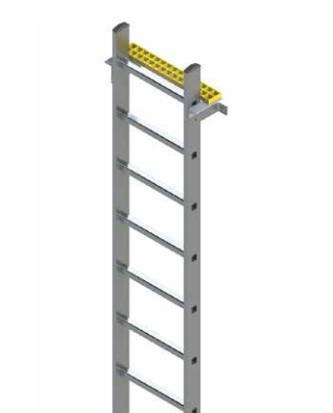

- Ladder:
- Stiles: 50 x 10 mm flat bar.
- Rung: 20 mm round bar.
- Stand-off brackets: 50 x 10 mm flat bar.
- Finish: Galvanized.
- Overall ladder width: 488 mm.
- Safety cage:
- Cages above 2200–3000 mm.
- Strap: 50 x 10 mm flat bar, five straps as BS 4211.
- Fixings: Dome head bolts.
- Finish: Galvanized.
General information
Finish | Galvanized |
Material | Steel |
Uniclass | |
CAWS | L35/130 Ladder system |
Product range |
Specification data - Permanently-fixed vertical ladder systems
System accessories | None.LadderUP® safety post. |
Product Reference | BL-S-WH1 Guidance for specification option: For 2.0–2.8 m height, 45–53 kg weight (approximate). |
Dimensions – height | 2.0–2.8 m height. |
Nominal weight | 45–53 kg weight (approximate). |
Sustainability data
Material | Steel |
Literature

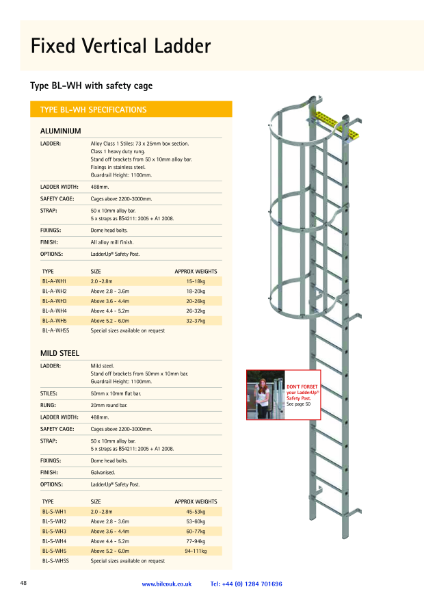

TYPE BL-WH Fixed Ladder with Safety Cage
