Type BL-WG (Mild Steel)

Verified by manufacturer 11 months ago

BL-S-WG1

Quanex Access Solutions Variant:

Industrial standard mild steel fixed vertical ladder with safety cage and guardrail.

Jump to:
01284 701 696 Website

Application

Suitable for construction and road repair sites where access to other platforms is required.

Description

Galvanized steel, industrial standard fixed vertical ladder, available to suit floor-to-roof or platform heights of between 2–6 m (special sizes available upon request).


Features and benefits:

  • Supplied with a fixed safety cage and guardrail, designed for access onto mezzanine or flat roof areas where an access hatch is not being used.
  • Manufactured to meet the requirements of BS 4211.
  • Ladder:
  • Stiles: 50 x 10 mm flat bar.
  • Rung: 20 mm solid bar.
  • Stand-off brackets: 50 x 10 mm flat bar.
  • Finish: Galvanized.
  • Guardrail height: 1100 mm.
  • Overall ladder width: 488 mm.
  • Safety cage:
  • Cages above 2200–3000 mm.
  • Strap: 50 x 10 mm flat bar, five straps as BS 4211.
  • Fixings: Dome head bolts.
  • Finish: Galvanized.

General information

Color

Silver

Finish

Galvanized

Material

Steel

Uniclass

Ss_35_10_30_62 Permanently-fixed vertical ladder systemsPrimary

CAWS

L35/130 Ladder system

Product range

Fixed Ladders

Specification data - Permanently-fixed vertical ladder systems

Classification data

Product Reference

BL-S-WG1

Guidance for specification option:

For 2.0–2.8 m height, 105–112 kg weight (approximate).

Dimensions – height

2.0–2.8 m height.

Nominal weight

105–112 kg weight (approximate).

Sustainability data

Material

Steel

Literature

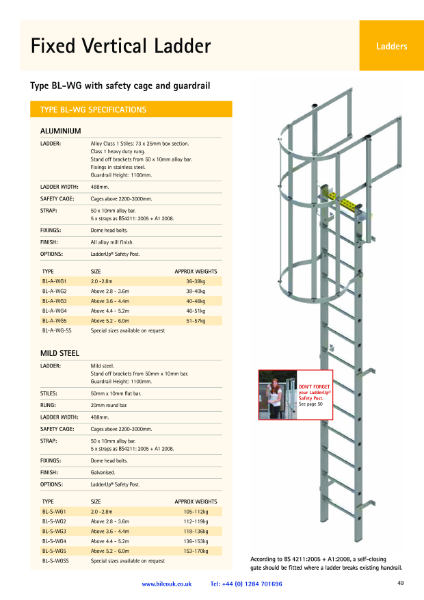

TYPE BL-WG Fixed Ladder with Safety Cage and Guardrail

TYPE BL-WG Fixed Ladder with Safety Cage and Guardrail

Similar products from Quanex Access Solutions

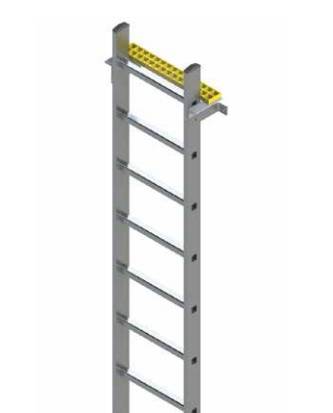

BL-A Fixed Vertical Ladder

BL-A Fixed Vertical Ladder

BL-WG Fixed Ladder with Safety Cage + Guard Rail

BL-WG Fixed Ladder with Safety Cage + Guard Rail

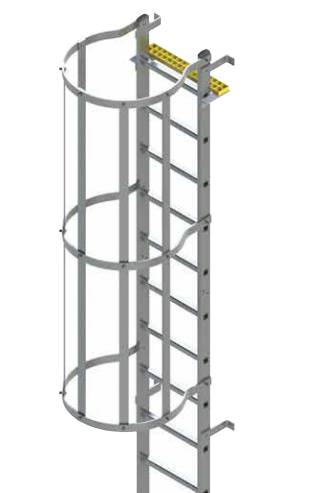

BL-WH Fixed Ladder with Safety Cage
