Verified by manufacturer 11 days ago
QA Certificate
Certificate type

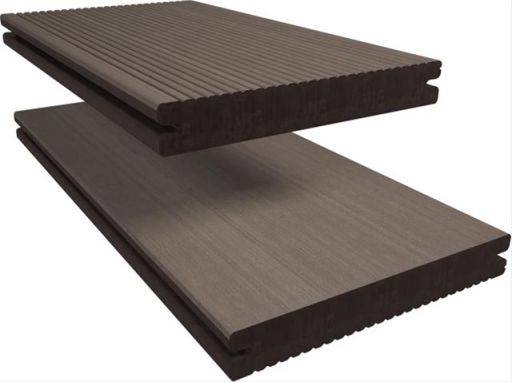

Natural looking, incredibly robust, low maintenance, wood-PVC composite decking product covered by a 25 year product warranty.
Internal and external commercial decking applications.
Natural looking, incredibly robust, low maintenance, wood-PVC composite decking product covered by a 25 year product warranty.
Features and benefits:
Shape | Rectangle |
Color | Brown Bark/ Turf/ Apricot/ Walnut. Grey Riverstone/ Slate. |
Finish | Grooved Smooth |
Material | WPC Wood-PVC composite decking. |
WarrantyDescription | 25 year
|
Finish | Grooved Smooth |
Uniclass | |
CAWS | Q55/110 Deck Q55/120 Boardwalk Q55/130 Footbridge |
Profile | Grooved. |
Finished size | - |
Section | 140 x 20 mm. |
Length | Consult manufacturer for details. |
Colour | Apricot brown. Bark brown. Riverstone grey. Slate grey. Turf brown. |
Accessories | Not required. P 2753 Inox A2 screws. 100 x 4.5 x 35 mm Inox A2 screws, 1 x bit. P 9326 rubber pad. 90 x 90 mm rubber pad, for 9430 or 9431 P 9366 start/ end trim. 20 x 21 mm start/end trim, aluminium. P 9429 pedestal extension. Pedestal extension (40 mm, maximum of 3 per pedestal) |
Finishing | Option 1: P 9363 finishing trim, black. 57 x 30 mm. Fixing: P 2753. Option 1: P 9363 finishing trim, brown. 57 x 30 mm. Fixing: P 2753. Option 1: P 9363 finishing trim, silver. 57 x 30 mm. Fixing: P 2753. Option 2: P 9518 finishing trim, black. 50 x 42 mm. Fixing: P 2753. Option 2: P 9518 finishing trim, brown. 50 x 42 mm. Fixing: P 2753. |
Edge finishEdge finish options. | Plinth, End cap. Alu F profile. Alu L profile. |
Top edge protectionEdge protection options. | Twinson composite plinth. Twinson composite end cap. Aluminium trim. |
Sub frameFixed subframe options. | Twinson non-structural profile (fully supported). Aluminium non-structural profiles (fully supported options). Aluminium structural profiles. |
Frame optionsFloating Subframe Options. | Aluminium structural profile. Hardwood support beam. Paving support pads. |
Recyclability | 100% |
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
Platform | Compatible | Version |
---|---|---|
![]() | IFC2X3 | 1 |
![]() | Revit 2016 | 2 |
