Tubular Fencing System - For Chain Link and Welded Mesh Cladding
Verified by manufacturer 6 months ago
System 1, medium duty (without top rail)
System 1, medium duty (without top rail)
ISO 9001 Quality Management
Certificate type

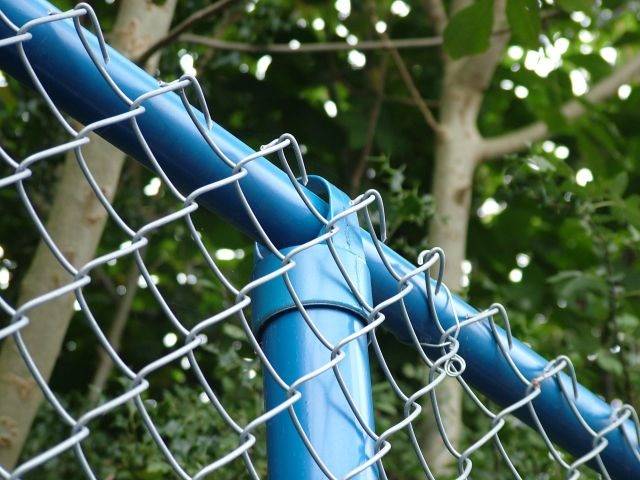

Galvanized tubular fencing system for both chain link and welded mesh cladding.
Application
- System 1: Suitable for domestic chain link installations, dog runs and larger pet enclosures.
- System 2: Suitable for industrial chain link or welded mesh fencing with minimum security applications.
- System 3: Suitable for domestic installation where the fence will be tested and the long term look of the fence is important.
- System 4: Suitable for quality industrial installations where the fence will be tested and the long term look of the fence is important.
- System 5: Appropriate for quality industrial installations, where the fence will be tested and the long term look of the fence is important.
- System 6: Recommended for higher security installations where the fence will be tested and the long term look of the fence is important. As a replacement to six rows of barbed wire, concertina razor wire can be fixed in the 'Y' to make an almost impassable fence.
Description
Galvanized tubular fencing system for both chain link and welded mesh cladding in a range of designs.
Features and benefits:
- Tubular construction for extra strength - less vulnerable to vandals.
- Supersedes old fashioned ‘rusty’ angle iron or heavy concrete post systems.
- No sagging with extra strength from the top rail.
- Extra security options - vertical or cranked extensions for barbed wires or tapes.
- 25-year guarantee.
General information
Color | Silver Green Black Other |
Finish | Galvanized Powder-coated |
Material | Steel |
Height | Bespoke Guidance for specification option: 900–3600 mm. |
Warranty description | 25 year |
Uniclass | |
CAWS | Q40/430 Proprietary fencing Q40/110 Chain link fencing Q40/5 Chain link fencing Q40/30 Proprietary fencing |
Product range |
Specification data - Continuous mesh fencing systems
System performance | Guidance for specification option: Insert requirements. |
Posts | Steel posts, 41.5 mm diameter.Guidance for specification option: Straining posts are supplied with struts as required (for use at ends, corners and changes in directions), stretcher bars and winders. |
Post foundations | Set in concrete. |
Wire | Guidance for specification option: Insert requirements. Line wire clips provided. |
Continuous materials | 50 mm galvanized chain link.Guidance for specification option: Available in a variety of heights. 50 mm PVC chain link.Guidance for specification option: Available in a variety of heights. Heavy welded mesh.Guidance for specification option: Available in a variety of heights. Light welded mesh.Guidance for specification option: Available in a variety of heights. Manufacturer guidanceEnter colour colour/ finish requirements separately below. |
System accessories | None.Matching gates.Guidance for specification option: Specified separately. Single and double leaf available. |
Fencing system | Tubular fencing system without a top rail. Guidance for specification option: Suitable for domestic chain link installations, dog runs and larger pet enclosures. |
Height | Guidance for specification option: Insert requirements; 900–3600 mm. |
Posts and rails | Galvanized. Guidance for specification option: Galvanized. Galvanized and powder-coated, black RAL 9005. Galvanized and powder-coated, green RAL 6005. |
Chainlink/ welded mesh | Galvanized. Galvanized and plastic-coated black. Galvanized and plastic-coated, green. Galvanized and plastic-coated, other. |
Diameter | 41.5 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
Literature
Sports Fencing and Tubular Systems Fencing
