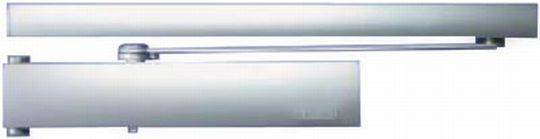

TS 5000 Electromechanical Overhead Door Closer

TS 5000 Electromechanical Overhead Door Closer

Third party certifications:
  • Certifire Certificate

    Certifire Certificate

    Certificate type

Hafele UK Ltd

Overhead door closer with electromechanical hold-open or free swing.

Jump to:
+44 (0)800 171 2907 www.hafele.co.uk
Description

Surface mounted, rack and pinion door closers with electromechanical hold-open or free-swing.

Suitable for interior use only.

General information
Features

Closing force adjustable from front

Optical closing force indicator

Adjustable backcheck

Value adjustable latching speed

All adjustments on front of closer

Tested and approved to BS EN 1155: 1997

Tested to conform with CE requirements

Material

Aluminium body and guide rail, carbon steel arm

Uniclass 2015
Pr_30_36_59_15 Controlled door closersPrimary
CAWS

P21/16 Electromagnetic hold open/ Swing-Free devices

P21/471 Electromagnetic hold open/ swing free devices

Specification data - Controlled door closers
Product Reference

TS 5000 Electromechanical Overhead Door Closer

Type

931.10.069

TS 5000 EFS, free swing, electro-plated silver.

931.10.540

TS 5000 E, hold-open, electro-plated satin stainless steel.

931.10.541

TS 5000 E, hold-open, electro-plated polished stainless steel.

931.10.649

TS 5000 E, hold-open, electro-plated silver.

As schedule ___

Power size

2

3

4

5

6

Standard product features

Features:

  • Closing force adjustable from front.
  • Optical closing force indicator.
  • Adjustable backcheck.
  • Value adjustable latching speed.
  • All adjustments on front of closer.
  • Tested and approved to BS EN 1155: 1997.
  • Tested to conform with CE requirements.

Material:

Aluminium body and guide rail, carbon steel arm.

Electrical data:

  • Operating voltage: 24 V DC ± 10 %.
  • Connecting load: 100 mA.
  • Permissible ripple (maximum): 20 %.
  • Rating: 100 %.
  • Enclosure rating: IP43.
  • A switch is required for testing.

Product Options

Type:

– TS 5000 EFS:

When voltage applied to closer the door acts as if no closer is present, but when there is no voltage the closer operates.

– TS 5000 E:

When voltage applied to the closer the door is held open, but when there is no voltage the closer operates. The door may also be closed manually at any time.

Power size:

  • 2: Door width (maximum): 850 mm; closing moments (minimum): 13 Nm.
  • 3: Door width (maximum): 950 mm; closing moments (minimum): 18 Nm.
  • 4: Door width (maximum): 1100 mm; closing moments (minimum): 26 Nm.
  • 5: Door width (maximum): 1250 mm; closing moments (minimum): 37 Nm.
  • 6: Door width (maximum): 1400 mm; closing moments (minimum): 54 Nm.

Third party certifications
  • CF145 : 120 mins, timber
