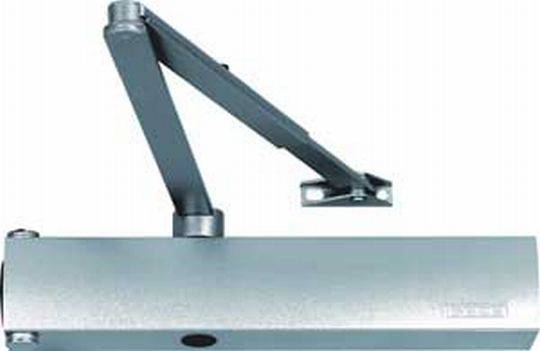

TS 4000 Electrohydraulic Overhead Door Closer
Certifire Certificate
Certificate type
Overhead door closer with electrohydraulic hold-open or free swing.
Surface mounted, rack and pinion door closers with electrohydraulic hold-open or free-swing.
Suitable for interior use only. Units can be supplied non-handed, or with handed stainless steel cover.
| Features | Closing force adjustable from front Optical closing force indicator Adjustable backcheck Value adjustable latching speed All adjustments at front of closer Tested and approved to BS EN 1155: 1997 Tested to conform with CE requirements |
| Material | Aluminium body and guide rail, carbon steel arm |
| Uniclass 2015 | |
| CAWS | P21/16 Electromagnetic hold open/ Swing-Free devices P21/471 Electromagnetic hold open/ swing free devices |
| Product Reference | TS 4000 Electrohydraulic Overhead Door Closer |
| Type | 931.16.030TS 4000 EFS, free swing, left handed, satin stainless steel cover. 931.16.031TS 4000 EFS, free swing, left handed, polished stainless steel cover. 931.13.339TS 4000 EFS, free swing, non-handed, electro-plated silver body. 931.16.040TS 4000 EFS, free swing, right handed, satin stainless steel cover. 931.16.041TS 4000 EFS, free swing, right handed, polished stainless steel cover. 931.16.050TS 4000 E, hold-open, left handed, satin stainless steel cover. 931.10.051TS 4000 E, hold-open, left handed, polished stainless steel cover. 931.16.559TS 4000 E, hold-open, non-handed, electro-plated silver body. 931.16.060TS 4000 E, hold-open, right handed, satin stainless steel cover. 931.10.061TS 4000 E, hold-open, right handed, polished stainless steel cover. As schedule ___ |
| Application | 1Standard, closer fixed to pull side of the door. 61Transom, closer fixed to push side of the door. |
| Power size | 123456 |
| Standard product features | Features:
Material: Aluminium body and guide rail, carbon steel arm. Electrical data:
|
| Product Options | Type: – TS 4000 EFS: When voltage applied to closer the door acts as if no closer is present, but when there is no voltage the closer operates. – TS 4000 E: When voltage applied to the closer the door is held open, but when there is no voltage the closer operates. The door may also be closed manually at any time. Power size:
|
- CF145 : 120 mins, timber
