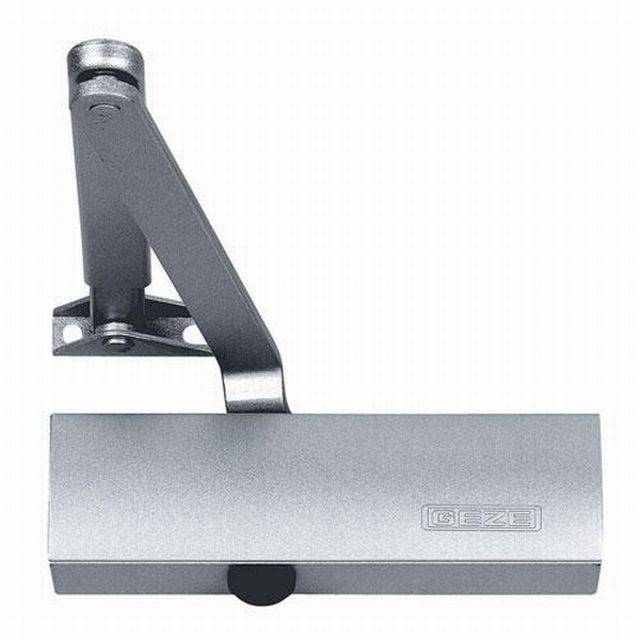

TS 1500 Overhead Door Closer

Third party certifications:
  • Certifire Certificate

    Certificate type

Hafele UK Ltd

Surface mounted overhead rack and pinion door closer for doors to 1100 mm wide.

Jump to:
+44 (0)800 171 2907 www.hafele.co.uk
Description

Surface mounted overhead rack and pinion door closer. Suitable for doors up to 1100 mm wide.

General information
Features

Flat form arm

Closing force by power shoe

Adjustable closing speed and latching action

Tested and approved to BS EN 1154: 1997

Tested to conform with CE requirements

Uniclass 2015
Pr_30_36_59_15 Controlled door closersPrimary
Specification data - Controlled door closers
Product Reference

TS 1500 Overhead Door Closer

Type

931.16.890

TS 1500, designer cover, satin stainless steel.

931.16.891

TS 1500, designer cover, polished stainless steel.

940.16.603

TS 1500, standard cover, electro-plated black.

940.16.626

TS 1500, standard cover, electro-plated silver.

940.16.628

TS 1500, standard cover, electro-plated gold.

940.16.850

TS 1500, standard cover, electro-plated satin stainless steel.

940.16.852

TS 1500, standard cover, electro-plated polished stainless steel.

940.16.858

TS 1500, standard cover, electro-plated polished brass.

Application

1

Standard, closer fixed to pull side of the door.

61

Transom, closer fixed to push side of the door.

66

Parallel arm, closer fixed to push side of door with fixing bracket.

Power size

3

4

Other requirements

Architrave bracket

Hold open arm

Not for fire doors.

Standard product features

Features:

  • Flat form arm.
  • Closing force by power shoe.
  • Adjustable closing speed and latching action.
  • Tested and approved to BS EN 1154: 1997.
  • Tested to conform with CE requirements.

Dimensions (lx d x h):

  • Designer: 237 x 52 x 62 mm.
  • Standard: 178 x 38 x 50 mm.

Product Options

Cover:

– Designer:

Stainless steel.

– Standard:

  • Carbon steel.
  • Electro-plated to a range of finishes.

Power size:

  • 3: Door width (maximum): 950 mm; closing moments (minimum): 18 Nm.
  • 4: Door width (maximum): 1100 mm; closing moments (minimum): 26 Nm.

Third party certifications
  • CF144 : 120 mins, timber
