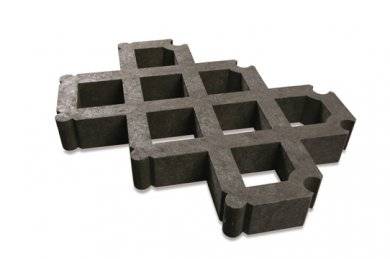

Truckcell 80 - Gravel

ABG

A cellular, permeable plastic paver system. Manufactured entirely from recycled and recyclable plastics, Truckcell 80 is capable of supporting regular trafficking.

Jump to:
+44 (0)1484 852096 Website

Application

  • HGV parking and access roads.
  • Fork-lift loading areas.
  • Car/ coach parks.
  • Emergency vehicle access routes.

Description

A heavy-duty cellular paving system designed for intensive usage and high-load traffic applications. The cells can be filled with topsoil and seeded or with gravel to provide a robust structural surface. Truckcell™ is manufactured from 100% recycled plastic and is strong enough to withstand trafficking from vehicles with high wheel loadings such as trucks, buses, fire appliances and refuse vehicles.


The polymer construction is semi-flexible, giving it a greater resistance to cracking than concrete alternatives and each unit weighs less than 9 kg, which keeps it well within Health and Safety manual handling guidelines. This high performance lighter-weight product facilitates simple manual installation and can greatly reduce installation time and site plant costs.


Once installed, the open-cell structure is filled with a free draining material to form a pervious surface which can provide surface water source control within a SuDS design. The cells are typically filled with either an angular gravel or with a growing media and then seeded to provide a green vegetated finish in accordance with the aesthetic and maintenance requirements of the project application.


Cell infill:

  • Gravel: 7–10 mm diameter, clean hard, free-draining, angular aggregate or gravel.
  • Grass: Good quality, free-draining, friable top-soil with no contaminants or oversized debris. 35–50 g/m² amenity-blend, low-maintenance seed to specification; pre-seeding fertilizer followed up with appropriate seasonal fertilizer.


Features and benefits:

  • Anti-skid option.
  • Lightweight.
  • Flexible.
  • Environmentally friendly.
  • High loads.
  • High vegetation yield.
  • Stable.

General information

Color

Grey

Finish

Smooth

Material

Plastic

Shape

Rectangle

Size

Cell size: 103 x 103 mm.

Cell wall: 40 mm thickness.

Length

600 mm

Width

400 mm

Height

80 mm

Uniclass

Pr_25_93_60_61 Plastics cellular paversPrimary

CAWS

Q25/180 Plastics grass reinforcing paving system

Q25/185 Gravel filled plastics paving system

Q25/350 Plastics pavers

Q30/361 Reinforced grass system

Product range

Truckcell

Specification data - Plastics cellular pavers

Physical properties

-

Material

Recycled plastics.

Colour

Grey.

Top surface finish

Standard.

Profile

-

Paver type

Regular plan form, rectangular.

Interlocking features

Integral tongue and groove.

Dimensions

-

Plan size

400 x 600 mm.

Cell size: 103 x 103 mm.

Thickness (minimum)

80 mm.

Cell wall: 40 mm thickness.

Load carrying capacity (minimum)

SLW 60 - Vehicles up to 60 tonnes gross weight.

Recycled content (minimum)

100%.

Sub-base reinforcement

Abgrid 30/30.

Not required.

Lower filter/ separator geotextile

ABG Terrex NW9 Geotextile, 1 mm thick.

Not required.

Sub-base attenuation

Geomembrane containment system and geotextile protection.

Not required.

Upper filter/ separator geotextile

ABG Terrex NW9 Geotextile, 1 mm thick.

Nominal weight

9 kg/ unit.

Bedding layer

Gravel: 7–10 mm diameter, clean hard, free-draining, angular aggregate or gravel.

Environmental information

Recycled content

100 %

Digital objects

Platform Compatible Version Certified to
IFC
-

1

1.3
Revit

Revit 2016

1

1.3
