Trovex

Hygipod is a one piece unit with a seamless PVC face. Not requiring any first fix works, it is fast and simple to install.

Jump to:
+44 (0)1707 254170 www.trovex.com
Description

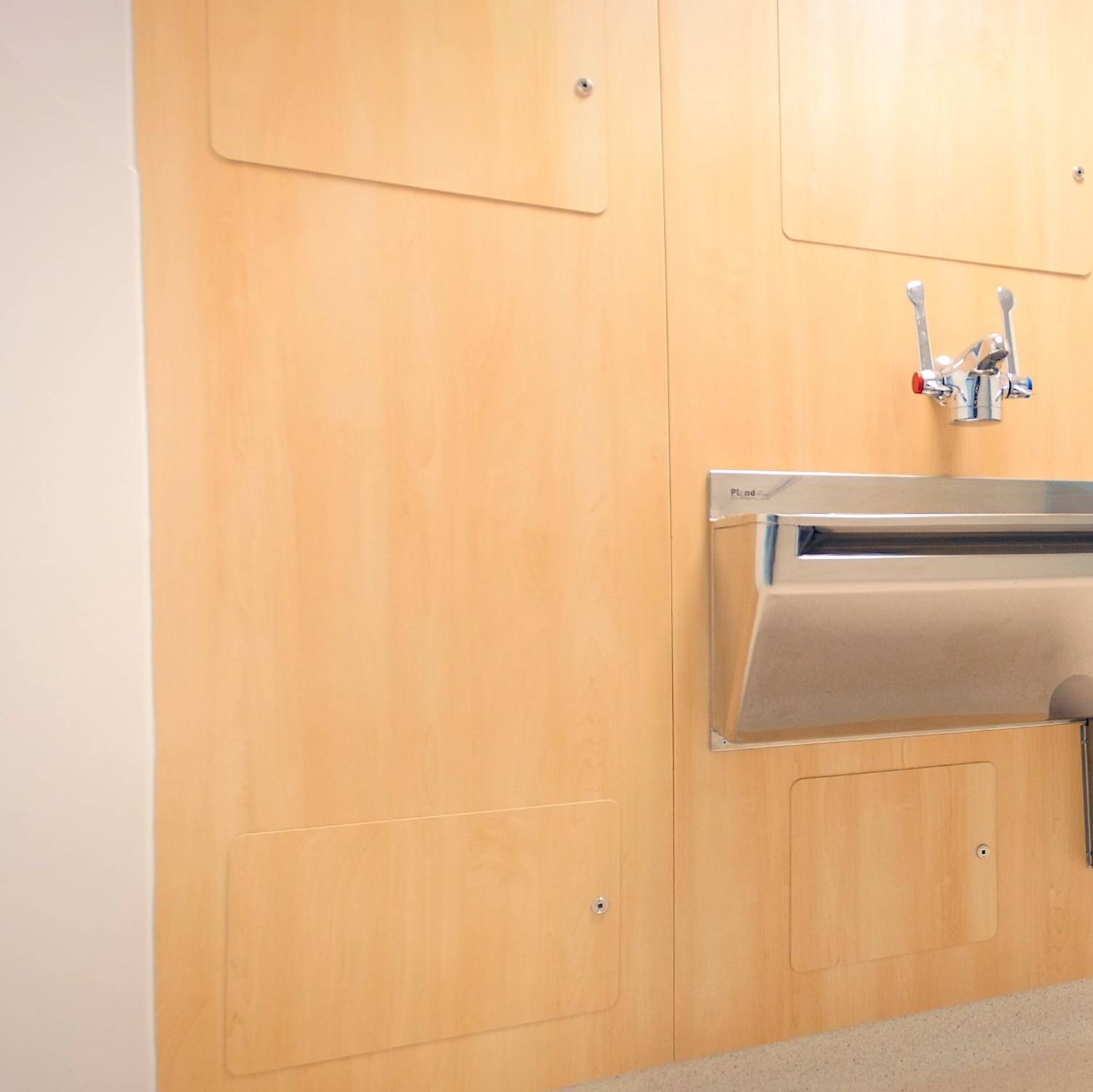

Prefabricated modular infill unit complete with access panels, and encapsulated with Trovex hygienic PVC. Constructed of a rigid core and encapsulated with Trovex hygienic PVC, Hygipod offers absolute cleanliness in one simple unit. Includes lockable access panels on projection hinges to facilitate cleaning.

Features and benefits:

  • Single piece, joint free casing.
  • Hinged. lockable access panels.
  • Used to complete duct layout to conceal services and pipework

General information

Color

Standard white or selected from the Trovex brilliance, radiance or ambience colour collections

Features

One piece joint free casing, hinged lockable panels, pre plumbed

Material

Mixed

Size

225 x 2400 x 750 mm

225 x 3000 x 750 mm

225 x 1555 x 750 mm

Uniclass 2015

Pr_40_20_93_62 Pre-plumbed installation framesPrimary

CAWS

K32/15 Duct/ wall lining panels

K32/160 Duct linings – preplumbed panels and proprietary frames

Specification data - Pre-plumbed installation frames

Product Reference

Trovex Hygipod - Infill Unit

Configuration

Corner

Straight wall

Height

Insert requirement – available up to 3000 mm.

Colour

Diamond white

Standard.

Bespoke

Insert requirement from the Brilliance, Radiance, Ambience and Essence colour collections.

Accessories

Insert requirements; contact manufacturer for information.

Standard product features

Access panel:

Projection hinges and rounded corners on the access panel mean that cleaning is easier and more thorough, minimizing the presence of bacteria.

Fixing:

Hygipod unit to be seated on plinth with rebated overlap detail, sealed to floor covering with Trovex Seal clear sealant, and fixed back to wall with brackets system supplied.

Product Options

Height:

Available in full height, half height with sloping top, and through suspended ceiling variations.

Joints:

Sealed to wall with approved sealant.

Plinth:

A structural plinth supplied by Trovex, is required to receive coved vinyl floor covering.

Digital objects
Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library
