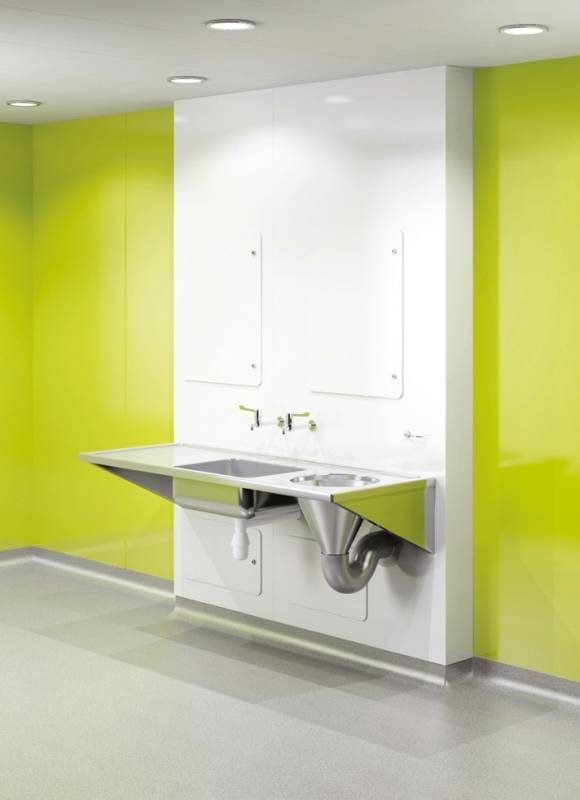

Prefabricated modular wash basin unit with hygienic PVC cladding.
Prefabricated modular wash basin unit complete with access panels, sanitaryware and encapsulated with Trovex hygienic PVC. Constructed of a rigid core and encapsulated with Trovex hygienic PVC, Hygipod offers absolute cleanliness in one simple unit. Includes lockable access panels on projection hinges to facilitate cleaning.
Features and benefits:
K32/15 Duct/ wall lining panels
K32/160 Duct linings – preplumbed panels and proprietary frames
Trovex Hygipod - Hand Wash Basin
Insert requirement – available up to 3000 mm.
Insert requirement from the Brilliance, Radiance, Ambience and Essence colour collections.
Insert requirements; contact manufacturer for information.
Standard product features
Clinical Specification: Armitage Contour 21 50 cm back outlet washbasin (S215401) with concealed hangers, toggle bolts and clips (S911267). Basin supplied with waste outlet adaptor (S875067), plastic strainer (S874667) and resealing bottle trap.
Non-clinical Specification: Portman 21 40 or 50cm with LH or RH tap hole, with concealed hangers and fixings. Basin supplied with waste and resealing bottle trap.
Clinical Specification: Armitage Markwik demountable bib mixer tap with single sequential lever and detachable spout with bioguard outlet, with copper feeds and quarter turn lever service valves for bottom / top entry of hot and cold services.
Non-clinical Specification: Armitage Contour 21 basin mounted tap (A4169) with copper feeds and quarter turn lever service valves for bottom / top entry of hot and cold services.
Projection hinges and rounded corners on the access panel mean that cleaning is easier and more thorough, minimizing the presence of bacteria.
Hygipod unit to be seated on plinth with rebated overlap detail, sealed to floor covering with Trovex Seal clear sealant, and fixed back to wall with brackets system supplied.
Available in full height, half height with sloping top, and through suspended ceiling variations.
Sealed to wall with approved sealant.
A structural plinth supplied by Trovex, is required to receive coved vinyl floor covering.
