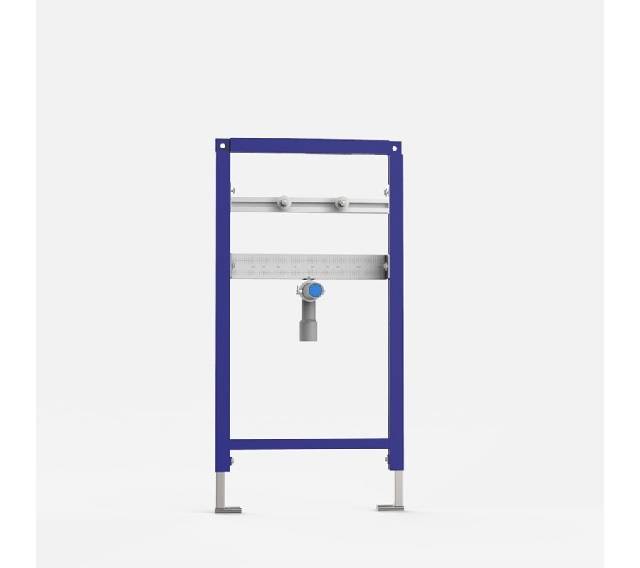

TRM2985 Multikwik Frame for Wall Hung Wash Basin
Description

985 mm high installation frame for a wall hung single tap hole washbasin. For mounting in front of a solid wall or light weight metal/ timber stud wall construction.

Features:

  • Fully welded box section steel frame powder coated blue.
  • Supports 150 kg load.
  • Height adjustable feet (up to 200 mm).
  • Four point fixing with adjustable depth wall brackets (135–205 mm).
  • Integral flushing cistern acoustically insulated to noise class 1 (BS EN 14055).
  • Washbasin fixing centres of 50 and 400 mm.
  • Supplied with waste bend DN50 x DN40.

General information

Features

Fully welded box section steel frame powder coated blue

Supports 150 kg load

Height adjustable feet (up to 200 mm)

Four point fixing with adjustable depth wall brackets (135–205 mm)

Integral flushing cistern acoustically insulated to noise class 1 (BS EN 14055)

Washbasin fixing centres of 50 and 400 mm

Supplied with waste bend DN50 x DN40

Finish

Powder coated blue

Material

Fully welded steel box section

Uniclass 2015

Pr_40_20_93_62 Pre-plumbed installation framesPrimary

CAWS

N13/500 Preplumbed frame system

Specification data - Pre-plumbed installation frames

Product Reference

TRM2985 - Multikwik sanitary frame for wash basin - 985 mm

Standard product features

Size (h x w x d):

985 x 525 x 75 mm.

Material:

Fully welded steel box section.

Finish:

Powder coated blue.

Load capacity (to BS EN 997):

150 kg.
