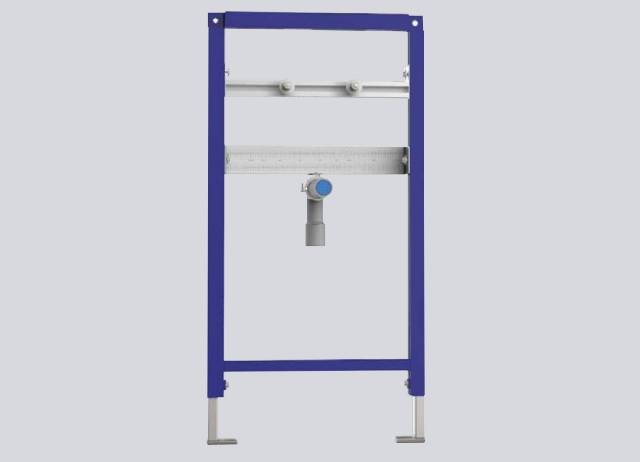

Installation frame for wall hung washbasin.
1120 mm high installation frame for wall hung single tap hole washbasin. For mounting in front of a solid wall or lightweight metal/ timber stud wall construction.
Features:
Installation:
For installations with a full-height room duct, installation depth of 135–205 mm.
Features | Includes a fully welded box section steel frame which has been powder-coated blue Supports 150 kg loads Height adjustable feet (up to 200 mm) Four point fixing with adjustable depth wall brackets (135–205 mm) Washbasin fixing centres of 50 mm and 400 mm Supplied with waste bend Compatible with a range of traps (specified separately) |
Finish | Powder-coated blue |
Material | Welded steel |
Uniclass 2015 | |
CAWS | N13/500 Preplumbed frame system |
Product Reference | TRM2020 Multikwik Frame for Wall Hung Washbasin |
Standard product features | Size (h x w x d): 1120 x 525 x 75 mm. Weight: 14.2 kg. Material: Welded steel. Finish: Powder-coated blue. Load capacity: 150 kg. Outlet connection: 40 mm. 90° outlet bend: DN40 x DN50 spigot. |
