Installation frame for wall hung WC pan.

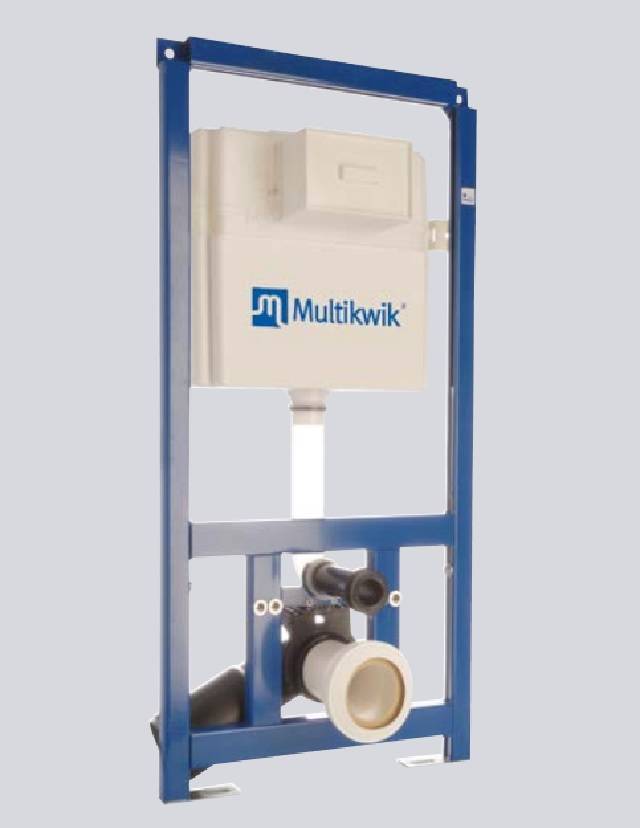

985 mm high installation frame for a wall hung WC pan. For mounting in front of a solid wall or light weight metal/ timber stud wall construction.
Features:
Features | Height adjustable feet (up to 200 mm) Four point fixing with adjustable depth wall brackets (155–400 mm) Integral flushing cistern acoustically insulated to noise class 1 (BS EN 14055) WRAS approved cable operated dual flush drop valve (6/3 L) Integral fill valve and isolating valve WC pan fixing centres of 180 and 230 mm Supplied with flush pipe, WC pan connector and pan mounting set Flush plate front mounted only |
Finish | Powder coated blue |
Material | Fully welded steel box section |
Uniclass 2015 | |
CAWS | N13/500 Preplumbed frame system |
Product Reference | TRM1985 - Multikwik WC sanitary frame - 985 mm |
Standard product features | Size (h x w x d): 985 x 525 x 155 mm. Material: Fully welded steel box section. Finish: Powder coated blue. Load capacity (to BS EN 997): 400 kg. |
