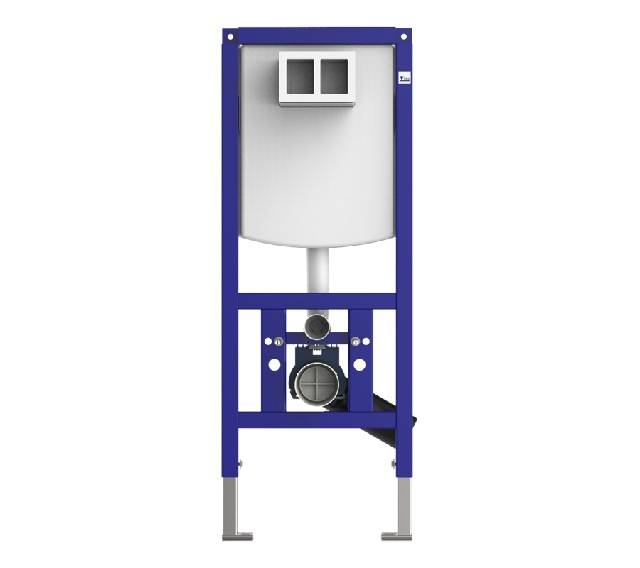

TRM1121 Multikwik Frame for Special Needs Wall Hung WC Pan
Description

1120 mm high installation frame for special needs wall hung WC pan. For mounting in front of a solid wall or lightweight metal/ timber stud wall construction.

Features:

  • Includes a fully welded box section steel frame which has been powder-coated blue.
  • Supports 400 kg loads (to EN 997).
  • Height adjustable feet (up to 200 mm).
  • Four point fixing with adjustable depth wall brackets (135–205 mm).
  • Integral flushing cistern acoustically insulated to noise class 1 (to DIN EN 14055).
  • WRAS approved, cable operated dual flush drop valve (6/ 3 L and 4.5/ 3 L).
  • Integral WRAS approved fill valve and isolating valve.
  • WC pan fixing centres of 180 mm.
  • Supplied with flush pipe, WC pan connector and pan mounting set.
  • Flush plate can be front mounted only.

General information

Features

Includes a fully welded box section steel frame which has been powder-coated blue

Supports 400 kg loads (to EN 997)

Height adjustable feet (up to 200 mm)

Four point fixing with adjustable depth wall brackets (135–205 mm)

Integral flushing cistern acoustically insulated to noise class 1 (to DIN EN 14055)

WRAS approved, cable operated dual flush drop valve (6/ 3 L and 4.5/ 3 L)

Integral WRAS approved fill valve and isolating valve

WC pan fixing centres of 180 mm

Supplied with flush pipe, WC pan connector and pan mounting set

Flush plate can be front mounted only

Finish

Powder-coated blue

Material

Welded steel

Uniclass 2015

Pr_40_20_93_62 Pre-plumbed installation framesPrimary

CAWS

N13/500 Preplumbed frame system

Specification data - Pre-plumbed installation frames

Product Reference

TRM1121 Multikwik Frame for Special Needs Wall Hung WC Pan

Standard product features

Size (h x w x d):

1120 x 450 x 130 mm.

Material:

Welded steel.

Finish:

Powder-coated blue.

Load capacity (to EN 997):

400 kg.
