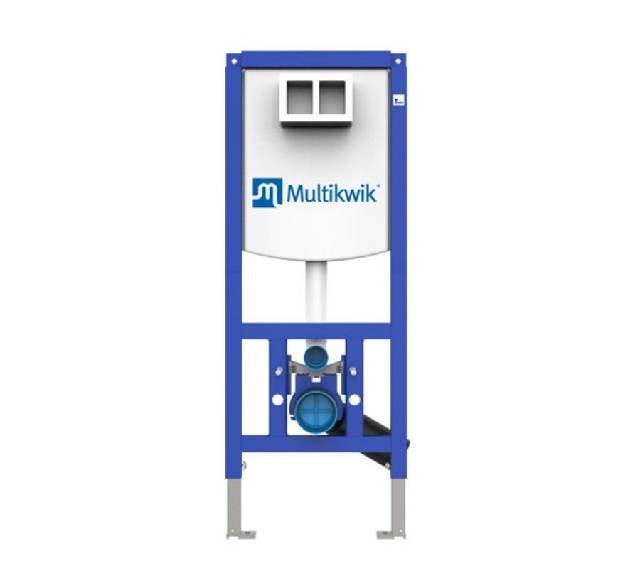

Installation frame for wall hung WC pan.
1120 mm high installation frame for wall hung WC pan. For mounting in front of a solid wall or lightweight metal/ timber stud wall construction.
For installations with a room-height duct, installation depth of 135 mm including the wall bracket.
Includes a fully welded box section steel frame which has been powder-coated blue
Supports 400 kg loads (to EN 997)
Height adjustable feet (up to 200 mm)
Four point fixing with adjustable depth wall brackets (135–205 mm)
Integral flushing cistern acoustically insulated to noise class 1 (to DIN EN 14055)
WRAS approved, cable operated dual flush drop valve (6/ 3 L and 4.5/ 3 L)
Integral WRAS approved fill valve and isolating valve
WC pan fixing centres of 180 mm
Supplied with flush pipe, WC pan connector and pan mounting set
Flush plate can be front mounted only
Compatible with various flush plate designs, including Eclipse, Solar and Crescent (specified separately)
N13/500 Preplumbed frame system
TRM1120 Multikwik Frame for Wall Hung WC Pan
Standard product features
Size (h x w x d):
1120 x 450 x 130 mm.
Load capacity (to EN 997):
110 mm spigot.
90° outlet bend:
DN90 x DN100 spigot.
Water supply inlet connection:
Male, 1/2" BSP top.
Cable operated, dual flush drop valve. Front mounted.
Flush inlet pipe:
