Description

Pump system for the removal of ground water from basement waterproofing systems, in new build and renovation projects.

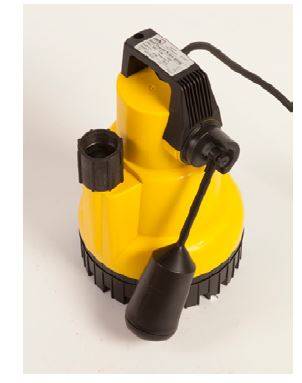

The Triton Aqua Pump XL kit can be specified for where a greater ingress of water is anticipated, where there is a greater depth to the basement or to enable the number of pumps to be reduced. The kit can be supplied in either single or dual pump configuration with a choice of three pump types which should be specified depending on the pump performance (flow and head) required.

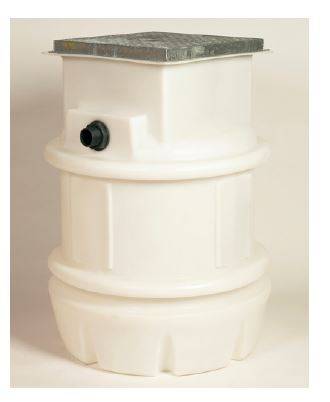

The sump features a large 450 x 450 mm opening for ease of maintenance/ installation, locking access cover, two pre-moulded anchor points and a split level base to provide pump height differential in dual pump configuration. The system is very versatile enabling the installer to locate inlets, discharge and cable/vent ducts to suit on-site requirements.

The kit can be supplied in auto or manual versions. The manual version includes a single or dual assist control panel and independent float switches which operate the pump(s) and monitor their usage.

General information
Size

Sump height: 1000 mm

Sump diameter: 750 mm

Cover: 450 x 450 mm

Uniclass 2015
Below-ground private packaged pumping station and pressure pipeline drainage systems (Ss_50_35_10_06)Primary
Specification data - Below-ground private packaged pumping station and pressure pipeline drainage systems
Product Reference

Aquapump XL 301 Single Pump

Aquapump XL 301 Dual Pump

Aquapump XL 303 Single Pump

Aquapump XL 303 Dual Pump

Aquapump XL RS55 Single Pump

Aqaupump XL RS55 Dual Pump

Controls

Automatic

Manual, single pump control panel

Manual, dual assist control panel

Dipster floats

Compatible with manual controls.

Standard product features

Size:

  • Sump height: 1000 mm.
  • Sump diameter: 750 mm.
  • Cover: 450 x 450 mm.

Sump colour:

White.

Power supply:

230 V AC. at 50 Hz.

Liquid temperature (maximum):

40°C.

Product Options

Product reference:

– Aquapump XL 301 Single Pump:

  • Rated current: 1.9 A.
  • Motor rating: 180 W.
  • Vertical output (maximum): 7 m.
  • Flow rate (maximum): 168 L/min.
  • Discharge size: 1¼".
  • Weight: 29 kg.

– Aquapump XL 301 Dual Pump:

  • Rated current: 1.9 A per pump.
  • Motor rating: 180 W per pump.
  • Vertical output (maximum): 7 m.
  • Flow rate (maximum): 168 L/min.
  • Discharge size: 1¼"
  • Weight: 33.5 kg.

– Aquapump XL 303 Single Pump:

  • Rated current: 3.6 A.
  • Motor rating: 360 W.
  • Vertical output (maximum): 12 m.
  • Flow rate (maximum): 228 L/min.
  • Discharge size: 1¼"
  • Weight: 30 kg.

– Aquapump XL 303 Dual Pump:

  • Rated current: 3.6 A per pump.
  • Motor rating: 360 W per pump.
  • Vertical output (maximum): 12 m.
  • Flow rate (maximum): 228 L/min.
  • Discharge size: 1¼"
  • Weight: 35 kg.

– Aquapump XL RS55 Single Pump:

  • Rated current: 5.0 A.
  • Motor rating: 800 W.
  • Vertical output (maximum): 14 m.
  • Flow rate (maximum): 300 L/min.
  • Discharge size: 2"
  • Weight: 45 kg.

– Aqaupump XL RS55 Dual Pump:

  • Rated current: 5.0 A per pump.
  • Motor rating: 800 W per pump.
  • Vertical output (maximum): 14 m.
  • Flow rate (maximum): 300 L/min.
  • Discharge size: 2"
  • Weight: 65 kg.
