Water ingress control system designed for the removal of groundwater from basement cavity drainage membrane systems.
A complete water control system specially designed for the removal of groundwater from basement cavity drainage membrane systems. The system comprises of a polyethylene sump, locking access cover (pedestrian duty, not suitable for roadways), a powerful submersible pump and a fittings kit. The system is very versatile, enabling the installer to locate inlets to their specifications.
Pump capacity of 132 L/ min at 7 m head
Quick and easy to install
Standard 40 mm discharge pipes
|Uniclass 2015||Below-ground private packaged pumping station and pressure pipeline drainage systems (Ss_50_35_10_06)|
Triton Aqua Pump Pro
1¼” brass gate valve
12 V, 7 Ah Battery
50 mm rubber seal (inlet/ cable duct)
110 mm rubber seal (drainage inlet)
Access cover, recessed 350 x 350 mm
High level alarm (mains operated)
High level alarm (mains/ battery operated)
|Standard product features|

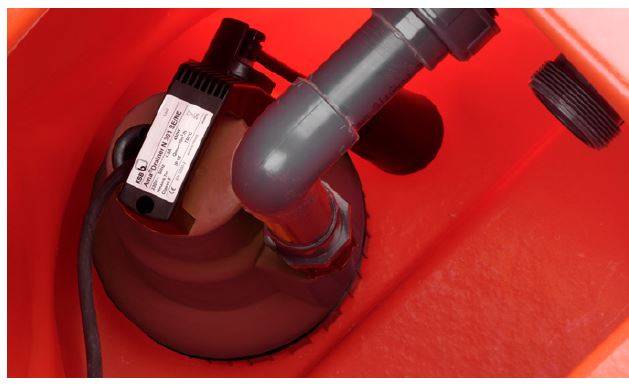

Mains powered, powerful 240 V submersible pump with float arm. It is capable of pumping up to 132 L/ min to a maximum head of 7 m.

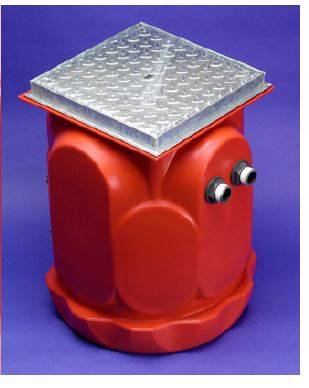

A red polyethylene pre-formed chamber, measuring 600 high with a diameter of 550 mm. It is most commonly located into the floor, finishing flush with the surrounding floor level. The sump basin is supplied with a locking, 350 x 350 mm access cover which can accept foot traffic. The lid can be easily removed to allow regular maintenance of the internal submersible pump or pumps.
Non-return valve assembly:
To avoid any discharged water backing-up into the sump basin, a non-return valve assembly is provided. This is fitted directly to the submersible pump outlet via flexible couplings and supplied ready to accept a standard 1¼” waste pipe.
