TriStile RO Half Height Tripod Turnstile

Verified by manufacturer 7 months ago

Gunnebo UK Ltd

Tripod turnstile, two legs, round end legs, with fixed or drop arm options.

Jump to:
BIM object icon
+44 (0)1902 455111 Website

Application

  • Government.
  • Retail.
  • Finance.
  • Telecommunications.
  • Information technology.
  • Banking.
  • Publishing.
  • Leisure.
  • Petrochemical.
  • Education.

Description

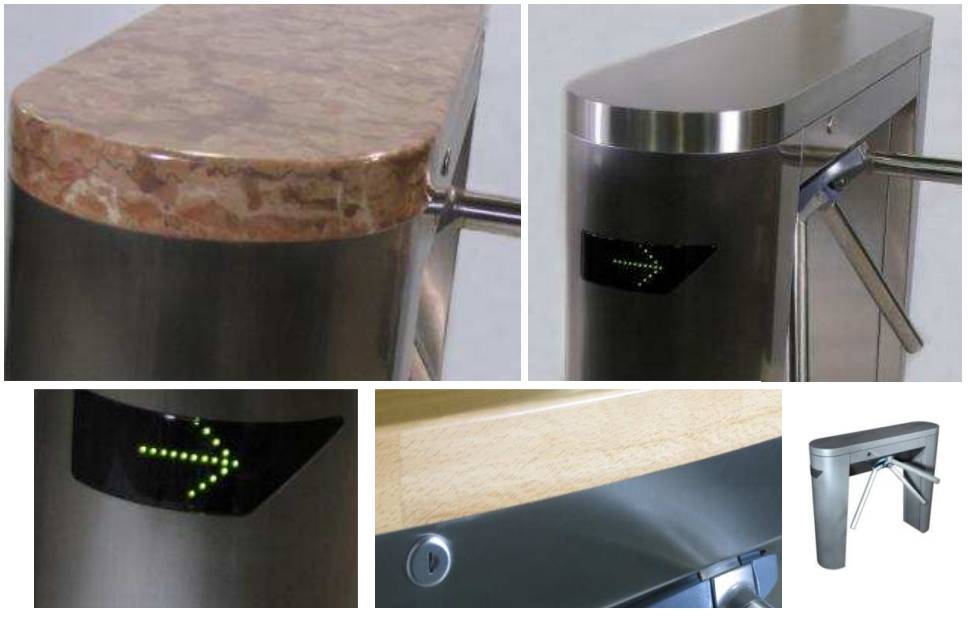

Tripod turnstiles are entrance solutions designed for smooth and silent operation, less wear and tear and reduced power consumption, suitable for areas where there is a large flow of people. TriStile RO has an elegant casework with rounded ends, ideal where design and customization is important. On receiving a signal from the access control system, or push button, the turnstile allows the passage of one person at a time. The status is shown on the led-way mode indicators, in entry and exit side. Passage in both directions is electronically controlled. Available in Normally Closed (N/C) configuration to lock the mechanism until a valid authorization signal is received, or available in Normally Open (N/O) configuration to lock the mechanism in the event of attempted unauthorized entry. The N/O configuration allows also reduced power consumption and increases the life of the mechanism and passage throughput speed.


Features and benefits:

  • Anti-backup device to prevent reverse rotation once the mechanism has moved 60° from home.
  • LED way mode indicators.

General information

Color

Grey

Height

950 mm

Length

1135 mm

Width

750 mm

Finish

Grained

Material

Stainless steel

304 grade stainless steel.

Shape

Other

Size

750 x 1135 x 950 mm

WarrantyDescription

Two year

Uniclass

Pr_30_59_34_88 Stainless steel half-height turnstilesPrimary

CAWS

Q50/160 Turnstile

Specification data - Stainless steel half-height turnstiles

Turnstile type

Tripod arms.

Rotation

Bidirectional.

Control unit

Not required.

Finish

Manufacturer's standard.

Passage configuration

Adjustable fail status hub assembly.

Drop arm option hub assembly.

Casework lid finish

Stainless steel, grade 1.4301/ 304.

To BS EN 10088-2, grade 1G/2G.

Accessories

None.

Drilled for surface mounted card reader.

Exit push button.

Lid cut out and provision for proximity reader under glass.

Pictograms.

Show more

Power supply

230 V a.c.

Standard.

50 Hz.

115 V a.c.

60 Hz.

Height

950 mm.

Length

1135 mm.

Width

750 mm.
