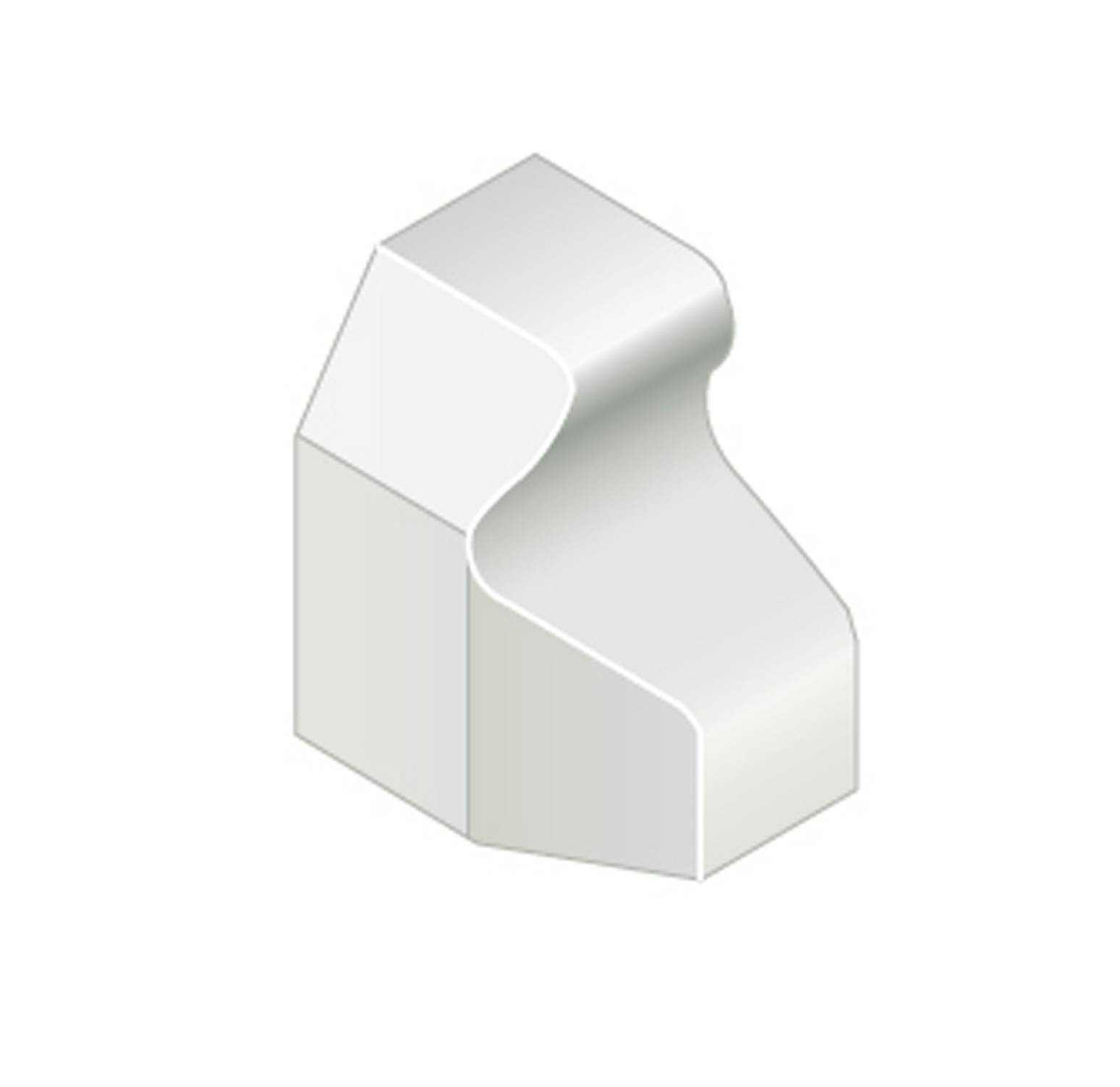

Trief® GST2A Chevron Clockwise Stop End Kerb - left hand

Trief® GST2A Chevron Clockwise Stop End Kerb - left hand

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Brett Landscaping

Trief Chevrons are interlocking kerbs that have the same design specification and qualities as the standard units and are very effective for directional indication at road bends and roundabouts.

Jump to:
+44 (0)345 6080577

The unique chevron design is extremely effective for marking traffic islands and roundabouts. The units feature the same design, specification and production qualities as the Trief and Trief Cadet units.

Trief Chevron units are available in a choice of surface finishes: marker for a non-reflective finish or Ballotini finish containing Ballotini glass beads for a reflective surface finish.

Both are available in black and white. Other colours are available on request.

The Trief Containment Kerb system has been widely used to form traffic calming features, pedestrian refuges and to protect bridges and can also be used to enhance security features by reducing traffic speeds and as a visual and physical deterrent to deliberate incursion.

Trief Chevron Kerbs are manufactured in accordance with BS EN 1340: 2003. CE marked.


Brett Landscaping operate a number of independently audited management systems:

  • BS EN ISO 9001: 2008 Quality Management System.
  • BS EN ISO 14001: 2004 Environmental Management System.
  • OHSAS 18001: 2007 Health and Safety Management System.
  • BES 6001 Responsible Sourcing of Construction Products.

General information


Black non-reflective resin

Black reflective resin

White non-reflective resin

White reflective resin




Visual direction kerb for traffic management




415 x 380 x 200 mm


Statutory Rights - Technical Support

Uniclass 2015

Pr_25_93_45_21 Concrete safety kerbsPrimary


Q10/115 Precast concrete safety kerbs

Specification data - Concrete safety kerbs

Product Reference

Trief GST2A Chevron Containment Kerb


Mechanical lift required for installation

Special shapes



GST2ACC - Standard

GST2ACCBRF - Black reflective

GST2ACCBRM - Black resin

GST2ACCWRF - White reflective

GST2ACCWRM - White resin

Clockwise Stop Left Hand

GST2ACCL - Standard

GST2ACCLBRF - Black reflective

GST2ACCLBRM - Black resin

GST2ACCLWRF - White reflective

GST2ACCLWRM - White resin

Clockwise Stop Right Hand

GST2ACCR - Standard

GST2ACCRBRF - Black reflective

GST2ACCRBRM - Black resin

GST2ACCRWRF - White reflective

GST2ACCRWRM - White resin


GST2ACA - Standard

GST2ACABRF - Black reflective

GST2ACABRM - Black resin

GST2ACAWRF - White reflective

GST2ACAWRM - White resin

Anti-Clockwise Stop Left Hand

GST2ACAL - Standard

GST2ACALBRF - Black reflective

GST2ACALBRM - Black resin

GST2ACALWRF - White reflective

GST2ACALWRM - White resin

Anti-Clockwise Stop Right Hand

GST2ACACR - Standard

GST2ACACRBRF - Black reflective

GST2ACACRBRM - Black resin

GST2ACACRWRF - White reflective

GST2ACACRWRM - White resin


Black non-reflective resin

Black reflective resin

White non-reflective resin

White reflective resin

Standard product features


Natural concrete with painted black or white chevron units. Trief GST2A Chevron Containment Kerbs can be either reflective Ballotini glass beads or non-reflective depending upon customer requirements.


Trief Chevron (w x h x l): 380 x 415 x 300 mm.

Digital objects
PlatformCompatibleVersionCertified to
IFC2X3 5 1.3
IFC2X3 5 1.3
Revit 2016 6 2.0
Download now from NBS National BIM Library
Third party certifications
  • TRL: Tested for BS EN 1317 – 2 Compliance providing a normal containment of N1 (Report Number TRL068)
