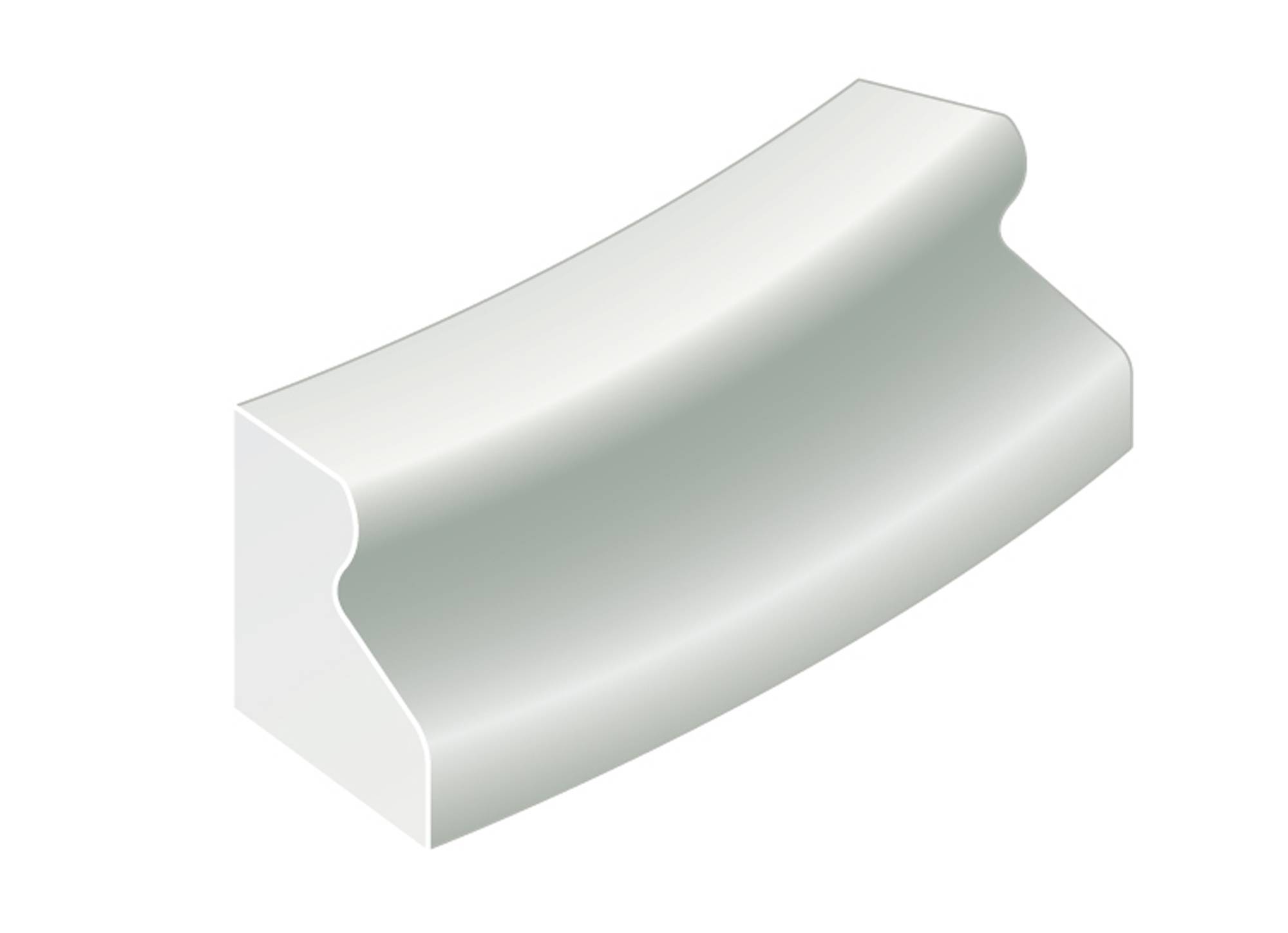

Trief® GST1A Cadet Kerb - 1500 mm external radius

Trief® GST1A Cadet Kerb - 1500 mm external radius

Brett Landscaping

The Trief Cadet Containment Kerb has been designed for use within lower speed urban areas where the size of the larger Trief units would not suit the environment.

Jump to:
+44 (0)345 6080577 www.brettpaving.co.uk
Description

The Trief Cadet GST1A Containment Kerb system is designed to re-direct light vehicles back onto their intended path preventing accidental overrun and impact with highway structures, passenger vehicles.

Their smaller size makes them ideal for use on roads up to 30 mph, i.e. urban or residential areas, or within smaller traffic calming schemes where they are widely used to form traffic calming features, pedestrian refuges and for verge protection.

The Trief Containment Kerb system has been widely used to form traffic calming features, pedestrian refuges and to protect bridges and can also be used to enhance security features by reducing traffic speeds and as a visual and physical deterrent to deliberate incursion.

Trief Cadet GST1A Containment Kerbs are manufactured in accordance with BS 1340 - 2003. CE marked.

Standards:

Brett Landscaping operate a number of independently audited management systems:

  • BS EN ISO 9001: 2008 Quality Management System.
  • BS EN ISO 14001: 2004 Environmental Management System.
  • OHSAS 18001: 2007 Health and Safety Management System.
  • BES 6001 Responsible Sourcing of Construction Products.

General information

Size

GST1A914

270 mm wide x 325 mm high x 914 mm long.

GST1A455

Half-length unit, 455 mm long.

GST2AL1

Left hand taper to match half batter BS kerbs, 914 mm long.

GST2AR1

Right hand taper to match half batter BS kerbs, 914 mm long.

GST2AL1S

Left hand taper to match splay BS kerbs, 914 mm long.

Show more

Color

Natural

Features

For use in urban or residential areas

Material

Concrete

WarrantyDescription

Statutory Rights - Technical Support

Uniclass 2015

Pr_25_93_45_21 Concrete safety kerbsPrimary

CAWS

Q10/10 Precast concrete

Q10/110 Proprietary precast concrete

Q10/115 Precast concrete safety kerbs

Specification data - Concrete safety kerbs

Product Reference

Trief Cadet GST1A Containment Kerb

Type

Mechanical lift required for installation

Size

GST1A914

270 mm wide x 325 mm high x 914 mm long.

GST1A455

Half-length unit, 455 mm long.

GST2AL1

Left hand taper to match half batter BS kerbs, 914 mm long.

GST2AR1

Right hand taper to match half batter BS kerbs, 914 mm long.

GST2AL1S

Left hand taper to match splay BS kerbs, 914 mm long.

GST2AR1S

Right hand taper to match splay BS kerbs, 914 mm long.

GST1AQ45E

45° External quadrant.

GST1AQ60E

60° External quadrant.

GST1AQ90E

90° External quadrant.

GST1AQ90I

90° Internal quadrant.

GST1A75ER

750 mm External radius.

GST1A1.5ER

1500 mm External radius.

Colour

Smooth pre-cast concrete

Textured concrete with exposed aggregate

Silver Grey Granite for architecturally sensitive areas

Black non-reflective resin

White non-reflective resin

White reflective resin

Standard product features

Colour:

Natural concrete or Silver Grey Granite but also available in white or black coated units which can be either reflective (Ballotini) or non-reflective.

Digital objects
Platform Compatible Version Certified to
IFC

IFC2X3

5

1.3
IFC

IFC2X3

5

1.3
Revit

Revit 2016

6

2.0
Download now from NBS National BIM Library
