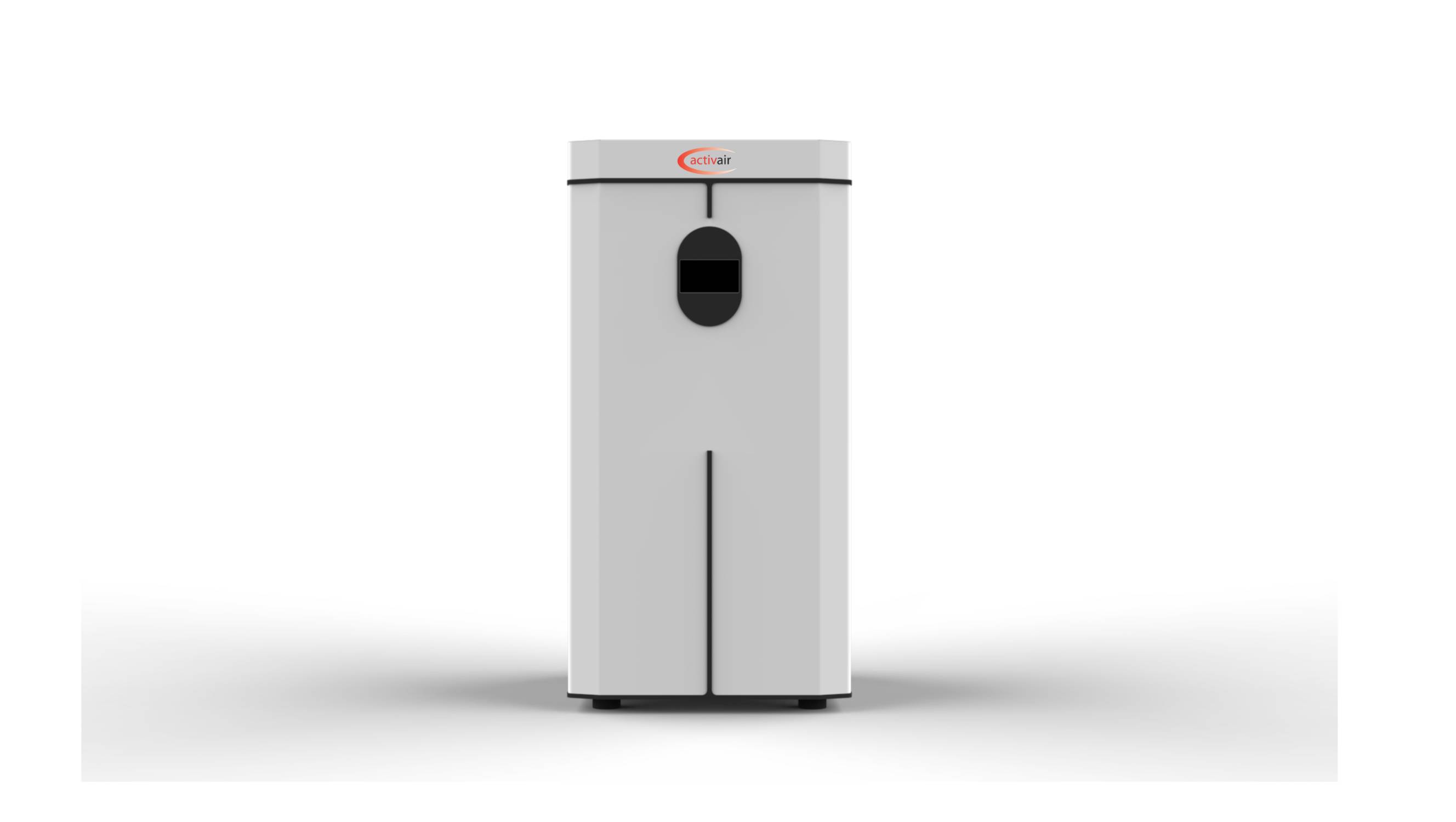

Trianco Activair R290 Indoor Air Source Heat Pump - Indoor Heat Pumps

Verified by manufacturer 3 days ago

Trianco

Indoor air/water heat pump without outdoor unit, suitable for apartments and small homes, providing heating, cooling, and hot water.

+44 (0)114 257 2300 Website

Application

Designed for apartments without balconies or limited terraces and small to medium-sized homes. Suitable for heating, cooling, and domestic hot water supply when fitted with a hot water cylinder.

Description

The Activair R290 Indoor Heat Pump is an air/water heat pump without an outdoor unit, designed for situations where there is no space for an outdoor unit, such as apartments without balconies or limited terraces. It can supply heating and hot water if fitted with a domestic hot water cylinder.

Features and benefits:

  • No outdoor unit, only two vents visible outside.
  • Compact and elegant indoor unit with dimensions similar to a domestic appliance.

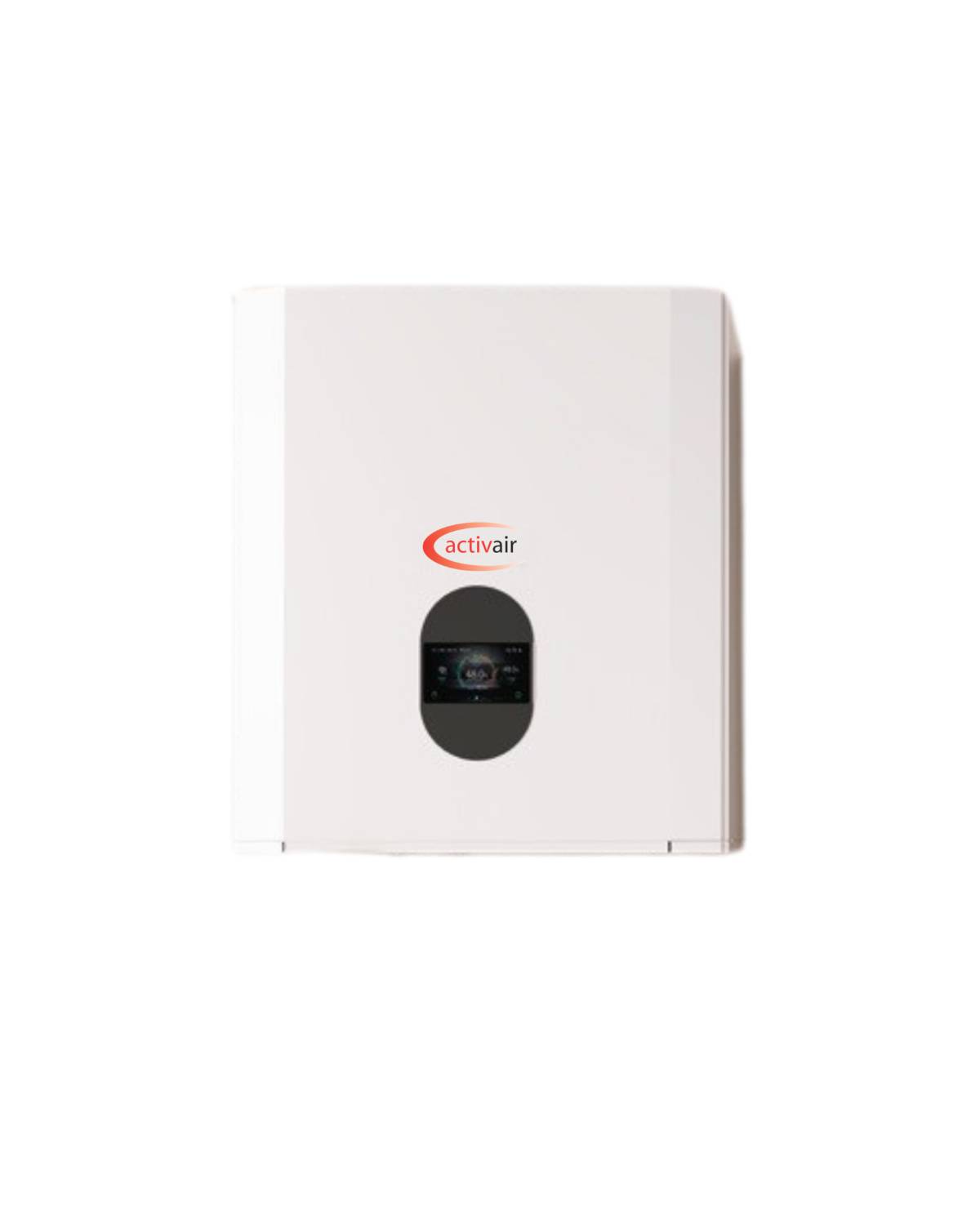

  • Available as a wall mounted 4 kW unit or a floor standing 5 kW unit.
  • Can provide air cooling if fitted with fan coils instead of radiators.
  • All-in-one indoor monoblock design simplifies installation and reduces costs.
  • Integrated wall mounting bracket for fast installation.
  • Top air outlet with air in and out ducts allows smooth installation against cupboards or wall corners.
  • Multi-side airflow with flexibility to site inlet/outlet ducts on one of three sides.
  • Two air duct options: rectangular or round ducting to suit different setups.
  • Ultra-quiet operation with optimized air duct design and fully wrapped composite silencers to reduce vibration and noise.
  • Built-in safety with gas separator and R290 leak detector for rapid detection and discharge of refrigerant leaks.
  • Remote control via zone control, room thermostat, and Warmlink app.
  • Remote intelligent diagnostics with internal 4G data transfer unit for monitoring and maintenance.

General information

Color

White

Material

Metal

Plastic

Shape

Rectangle

Length

684 mm

Width

595 mm

Height

1119 mm

Uniclass

Pr_70_60_37_04 Air-to-water heat pumpsPrimary

CAWS

T90/505 Air-to-water heat pumps

SKU Code

9116,9114

Sustainability data

Material

Metal
Plastic

Literature

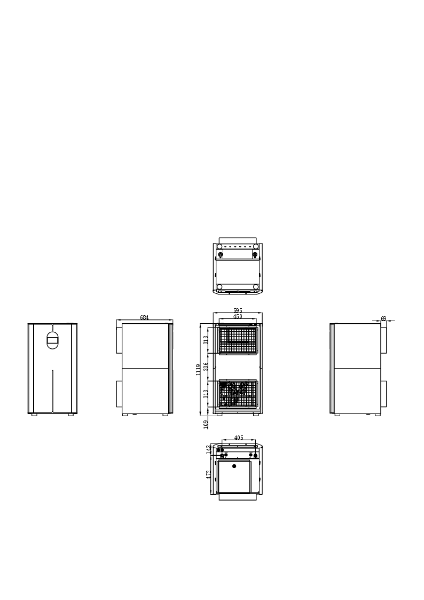

2D Drawing for 5kW Indoor Monoblock

2D Drawing for 5kW Indoor Monoblock

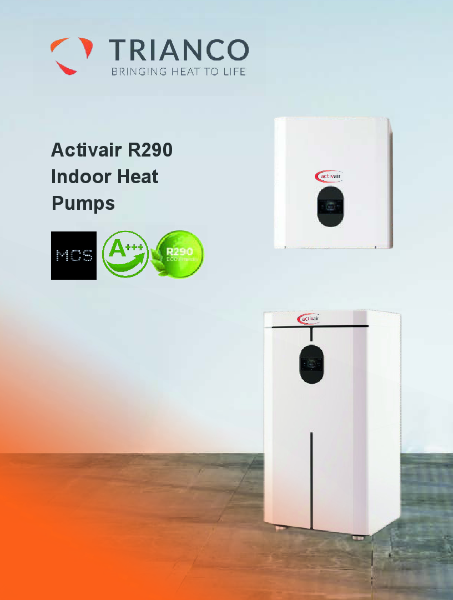

Activair R290 Indoor Heat Pump Brochure

Activair R290 Indoor Heat Pump Brochure
