TravelMaster 110

Description

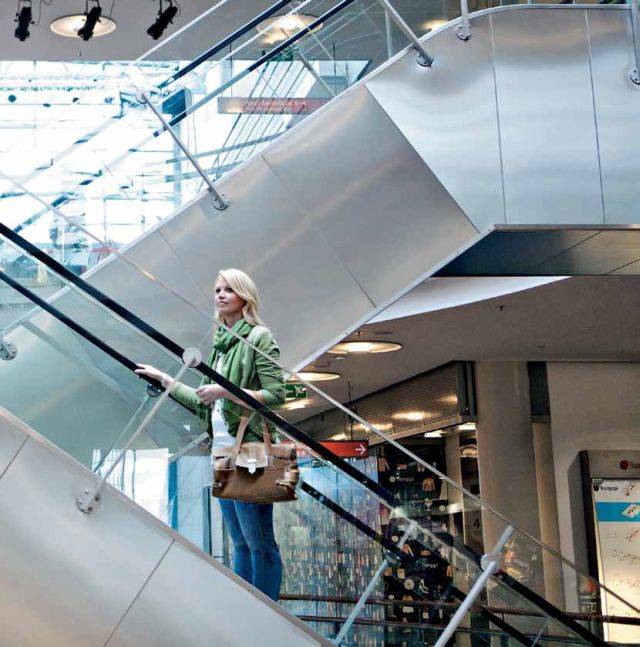

Escalator suitable for commercial applications including offices, supermarkets, department stores and shopping centres.

Features:

Ideal for new installations and is specifically designed to meet the exacting demands and needs of the market sector all the way up to the demanding requirements of major department stores and regional shopping centres.

- Safety:

  • Fully compliant with BS EN115-1
  • Emergency stop buttons for passengers in the skirting panels at the upper and lower landings.
  • Broken step chain (chain tension) switches in the return station which stops the escalator in case of failure.
  • Comb plate impact device switch which stops the escalator in case of objects become trapped between the comb teeth and the moving step band.
  • Step guards at the top and bottom.
  • Step sag switch, which stops the escalator if a step sags by more than 5 mm before it enters the comb.
  • Handrail and motor speed sensor systems, which electronically monitors the motor for over/under run speeds.

Eco-efficiency:

  • Stand-by speed operation via inverter reduces the escalator speed when no passengers are travelling.
  • Optional LED decorative lighting system uses 90% less energy and lasts up to six times longer than fluorescent tubes
  • Optional KONE Direct Drive is the most energy efficient escalator drive system on the market today and is directly geared to the headshaft, resulting in an overall mechanical efficiency of 96%.

General information

Features

Ideal for new installations and is specifically designed to meet the exacting demands and needs of the market sector all the way up to the demanding requirements of major department stores and regional shopping centres

Uniclass 2015

Pr_65_80_28_21 EscalatorsPrimary

Specification data - Escalators

Product Reference

TravelMaster 110

Angle of inclination

30°

35°

max. 6 m rise

Horizontal steps

Two

Three

Required if vertical rise exceeds 6 m or step speed exceed 0.5 m/s.

Transition radii (top/ bottom):

1.0/ 1.0 m

standard up to 6m rise

1.5/ 1.0 m

Rise

13.0 m (maximum).

Step width

600 mm

800 mm

1000 mm

Access cover

Embossed stainless steel with black painted grooves

Embossed stainless steel

Ribbed aluminium

Ribbed aluminium with black painted grooves

Comb

Aluminium

Aluminium with yellow coating

Yellow plastic

Black plastic

Balustrade

-

Inner panels

10mm thick clear toughened glass

Satin polished stainless steel

Height

1000 mm

standard.

1100 mm

Joints

Perpendicular to the truss

standard.

Vertical to the horizontal

Handrail

Beige

Black

standard.

Black with white demarcation inserts

Blue

Brown

Green

Grey

Red

Decking

Brushed satin stainless steel

standard.

Natural anodized aluminum

Frontplate

Black plastic

standard.

Satin polished stainless steel

Skirt

Brushed satin stainless steel with clear anti-friction coating

Sheet steel with black anti-friction coating

standard.

Steps

-

Colour

Black painted aluminium with linished tread surface

Natural aluminum

Not suitable for outdoor applications.

Silver painted aluminium

standard.

Demarcation

Not required

Yellow painted lines (RAL1004)

Yellow plastic inserts (RAL1023)

Moving media

Not required

One sign every step

Insert details.

One sign every six steps

Insert details.

Cladding

Not required

Brushed satin stainless steel

Clear glass side

Not suitable for outdoor applications.

Grey primed sheet steel (RAL 7036)

Laminate, dotted white LH001

Laminate, dotted black LH002

Laminate, navy white LH003

Laminate, pearl steel LH004

Laminate, pearl silver LH005

Laminate, bronze mesh LH006

Etched stainless steel side, silver bamboo ST41S

Etched stainless steel side, silver cloud ST42S

Etched stainless steel side, silver high-rise ES3

Glossy glass side, bright white G105

Glossy glass side, black pearl G107

Satin glass side, glow bronze G104

Lighting

Not required

Continuous LED handrail lighting

Continuous LED skirt lighting

LED skirt spotlighting

Traffic lights located in decking

Under step demarcation at each landing

Diagnostics display

Not required

Required

Standard product features

Balustrade:

10 mm clear toughened glass with slim handrail profile.

Step chains:

Inside roller chains.

Duty cycle:

12-16 hours per day (maximum).

Speed:

0.5 m/s.

Product Options

KONE DirectDrive eco-efficient drive system.
