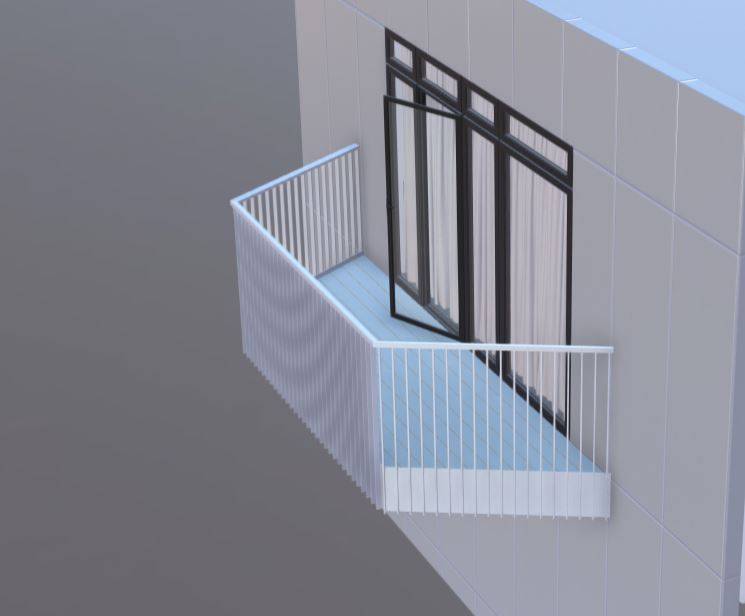

Prefabricated aluminium balcony with vertical bar balustrade.
Suitable for residential applications.
Glide-on Cassette® balconies are a patented concept, incorporating the balustrade, frame, deck and soffits into one fully offsite assembled MMC product. This makes it simpler, faster and more cost-effective to provide rapidly installed, rigid balconies. The cassette balconies incorporate proven solutions for drainage, rainwater and fire-resistance.
The frame of the balcony is manufactured from aluminium Class A materials and the deck and soffits are clad onto them. They work together to allow the rainwater to drain through the balcony cassette and into the soffits below, where they act as drip trays dispersing the rainwater quickly and evenly.
Features and benefits:
4900 x 1500 mm
L30/55 Proprietary balustrades
L30/560 Proprietary balustrades
Polyester powder coated aluminium vertical bars, white, mechanically fixed to Cassette®.
Rectangular polyester powder coated aluminium handrail, 60 x 30 mm.
Fixing to parent structure
Cast-in balcony anchor, preassembled with thermal breaks and concrete edge casting shutter.
Two piece galvanized steel arms.
Class A aluminium.
Polyester powder coated aluminium soffits, white, with 400 mm wide drip trays draining to front of balcony.
Aluminum composite decking (Fire Class A) fixed with hidden clips. Window Grey, grooved finish.
Polyester powder coated aluminium, white. Fascias to be fixed behind bars.
