Electrical, mechanical and HVAC services suspension system.
Electrical, mechanical and heating, ventilation and air conditioning (HVAC) services suspension system.

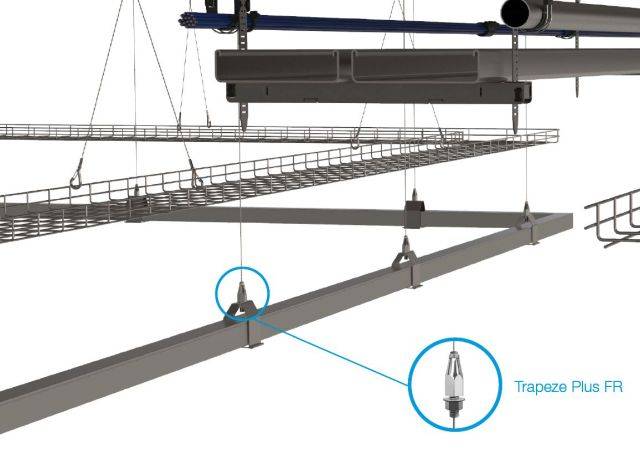

Trapeze Plus FR Range:
Carriage: Carbon steel (type EN1A), bright zinc plated
Balls: Chrome steel, grade 40
Spring: Stainless steel, grade 1.4310 (302)
Locking nut: Knurled carbon steel (type EN1), bright zinc plated
Threaded adaptor: Carbon steel (type EN1), bright zinc plated
Housing: Carbon steel (type EN1), bright zinc plated
V90/330 Cable trays
V90/33 Cable trays
V90/34 Cable baskets
V90/335 Cable baskets
Trapeze Plus FR Range
|Size (l x h x w)|
Insert requirement, many options available, consult manufacturer's literature for information.
10 m +
Insert requirements, many options available, consult manufacturer's literature for information.
|Standard product features|
Wire rope thickness:
Safe working load:
Fire rating (to BS 476-20/ DIN 4102-2):
BRE tested to F120 (two hours' fire resistance).
Dimensions dependent on product and thread, consult manufacturer's literature for information.
