Trapeze Plus Fire Rated

Third party certifications:
  • BRE Certificate

    Certificate type

  • QA Certificate

    Certificate type

Gripple Ltd

Electrical, mechanical and HVAC services suspension system.

Jump to:
+44 (0)114 275 2255 www.gripple.com
Description

Electrical, mechanical and heating, ventilation and air conditioning (HVAC) services suspension system.

Trapeze Plus FR Range:

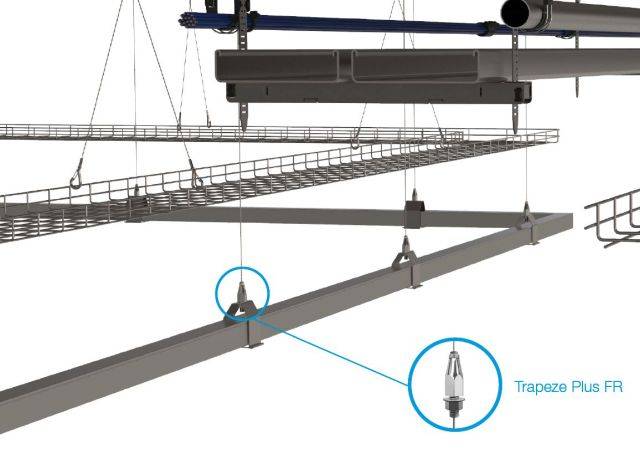

  • Reduced time working at height; pre-install into channel using the pre-fitted washer and channel nut supplied.
  • Tool free setting - easy-to-use integral adjustment button.
  • Tighten the locking screw for ultimate security.
  • Channel can be multi-tiered to optimize space.
  • Supplied as a ready-to-use kit with stainless steel wire rope.

General information
Material

Carriage: Carbon steel (type EN1A), bright zinc plated

Balls: Chrome steel, grade 40

Spring: Stainless steel, grade 1.4310 (302)

Locking nut: Knurled carbon steel (type EN1), bright zinc plated

Threaded adaptor: Carbon steel (type EN1), bright zinc plated

Housing: Carbon steel (type EN1), bright zinc plated

Uniclass 2015
Channel supports (Pr_80_77_27_15)Primary
Specification data - Channel supports
Product Reference

Trapeze Plus FR Range

Size (l x h x w)

No. 2

No. 3

No. 4

End fixings

Insert requirement, many options available, consult manufacturer's literature for information.

Wire length

1 m

2 m

3 m

4 m

5 m

6 m

7 m

8 m

9 m

10 m

10 m +

Insert requirements.

Accessories

Insert requirements, many options available, consult manufacturer's literature for information.

Standard product features

Material:

  • Carriage: Carbon steel (type EN1A), bright zinc plated.
  • Balls: Chrome steel, grade 40.
  • Spring: Stainless steel, grade 1.4310 (302).
  • Locking nut: Knurled carbon steel (type EN1), bright zinc plated.
  • Threaded adaptor: Carbon steel (type EN1), bright zinc plated.
  • Housing: Carbon steel (type EN1), bright zinc plated.

Wire rope thickness:

1.5 mm.

Safe working load:

  • No. 2: 45 kg (at 3:1 safety factor).
  • No. 3: 90 kg (at 3:1 safety factor).
  • No. 4: 225 kg (at 3:1 safety factor).

Fire rating (to BS 476-20/ DIN 4102-2):

BRE tested to F120 (two hours' fire resistance).

Product Options

Size:

Dimensions dependent on product and thread, consult manufacturer's literature for information.

Third party certifications
  • Fire tested to F120 (to BS 476-20/ DIN 4102-2)
  • Lloyds: Certified
