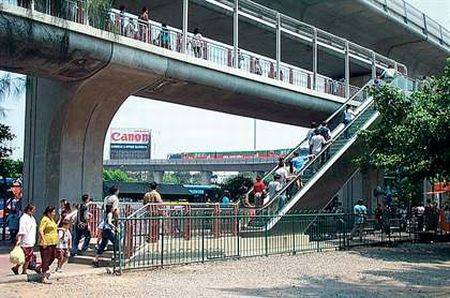

TransitMaster 140

Verified by manufacturer 3 months ago

KONE plc Third party certifications:
  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

  • EPD

    EPD

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Heavy duty escalator targeted at the public transportation sector.

Jump to:
+44 (0)345 199 9999 Website

Application

  • Ideal for new installations and is specifically designed to meet the exacting demands and needs of the market sector all the way up to the demanding requirements of mass transit airport and railway systems.
  • For public transportation environments, such as metro stations and airports. Suitable for indoor, semi-outdoor, and full outdoor use.

Description

Escalator suitable for public transportation sector including metro and underground systems as well as airports, rail systems and other transit centres.


Features and benefits:

  • Stand-by speed operation via inverter reduces the escalator speed when no passengers are travelling.
  • Optional LED decorative lighting system uses 90% less energy and lasts up to six times longer than fluorescent tubes.
  • Heavy duty, energy efficient.
  • Step chains: Outside roller chains (100 x 25 mm diameter).
  • Duty cycle: 20 - 24 hours per day (maximum).


Safety features:

  • Fully compliant with BS EN115-1.
  • Emergency stop buttons for passengers in the skirting panels at the upper and lower landings.
  • Broken step chain (chain tension) switches in the return station which stops the escalator in case of failure.
  • Comb plate impact device switch which stops the escalator in case of objects becoming trapped between the comb teeth and the moving step band.
  • Step guards at the top and bottom.
  • Step sag switch, which stops the escalator if a step sags by more than 5 mm before it enters the comb.
  • Handrail and motor speed sensor systems, which electronically monitors the motor for over/ under run speeds.

General information

Color

Silver

Finish

Other

Manufacturer guidance

Varies.

Material

Steel

Aluminium

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_65_80_28_21 EscalatorsPrimary

CAWS

L35/350 Stairs

L30/270 Stairs

Product range

Escalators

Specification data - Escalators

Standard

To BS EN 115-1.

Angle of inclination

27.3°.

30°.

Speed

0.5 m/s.

0.65 m/s.

0.75 m/s.

Landing floor plates

-

Material

Stainless steel.

Finish

Embossed with black painted grooves, with floor number.

Comb plates

-

Material

Aluminium.

Demarcation marking

Yellow powder coated.

Step treads

-

Material

Aluminium.

Finish

Black painted aluminium with linished tread surface.

Silver aluminium.

Width (nominal)

1000 mm.

Step demarcation markers

-

Location

Not required.

Yellow plastic insert (RAL1023).

Powder coated yellow painted lines (RAL1004) at sides of pallets.

Lighting

Not required.

LED comb.

Under step demarcation at each landing.

Level steps

Two.

Three.

Guidance for specification option:

Required if vertical rise exceeds 6 m or step speed exceed 0.5 m/s (max. 0.65 m/s).

Four.

Guidance for specification option:

Required if step speed exceeds 0.65 m/s.

Balustrades

-

Material

Brushed stainless steel solid inclined.

10 mm thick clear toughened glass.

Height (minimum)

1000 mm.

Joints

Perpendicular to the truss.

Guidance for specification option:

Standard vertical to the horizontal.

Handrail

-

Colour

Beige.

Black.

Guidance for specification option:

Standard, black with white demarcation inserts.

Blue.

Brown.

Green.

Grey.

Red.

Lighting

Not required.

Continuous LED handrail lighting.

Skirting

-

Material

Stainless steel.

Guidance for specification option:

with clear anti-friction coating.

Sheet steel.

Guidance for specification option:

with black anti-friction coating.

Lighting

Not required.

Continuous LED skirt lighting.

LED skirt spotlights.

Decking

-

Material

Stainless steel.

Guidance for specification option:

Brushed satin finish.

Steel.

Guidance for specification option:

Silver powder coated (RAL 9007).

Lighting

Not required.

Traffic lights located in decking.

Cladding material

Not required.

Brushed satin stainless steel.

Glass sides.

Guidance for specification option:

Not suitable for outdoor applications.

Grey primed sheet steel.

Guidance for specification option:

(RAL 7036).

Transition radii (top/ bottom):

1.5/ 1.0 m.

2.7/ 2.0 m.

3.6/ 2.0 m.

Frontplate

Black plastic.

Guidance for specification option:

standard.

Stainless steel.

Diagnostics display

Required.

Not required.

Moving media

Not required.

One sign every step.

Guidance for specification option:

Insert details.

One sign every six steps.

Guidance for specification option:

Insert details.

Duty cycle

20—24 hours per day (maximum).

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Finland

Material

Steel

Aluminium

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

109769 kg CO₂ eq/kg

Recyclability

88%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

27 %
