Trainer Module for GH3+ ceiling hoist - Ceiling Hoist

Verified by manufacturer 24 days ago

SWL: 200 kg

Guldmann Limited Variant:
Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

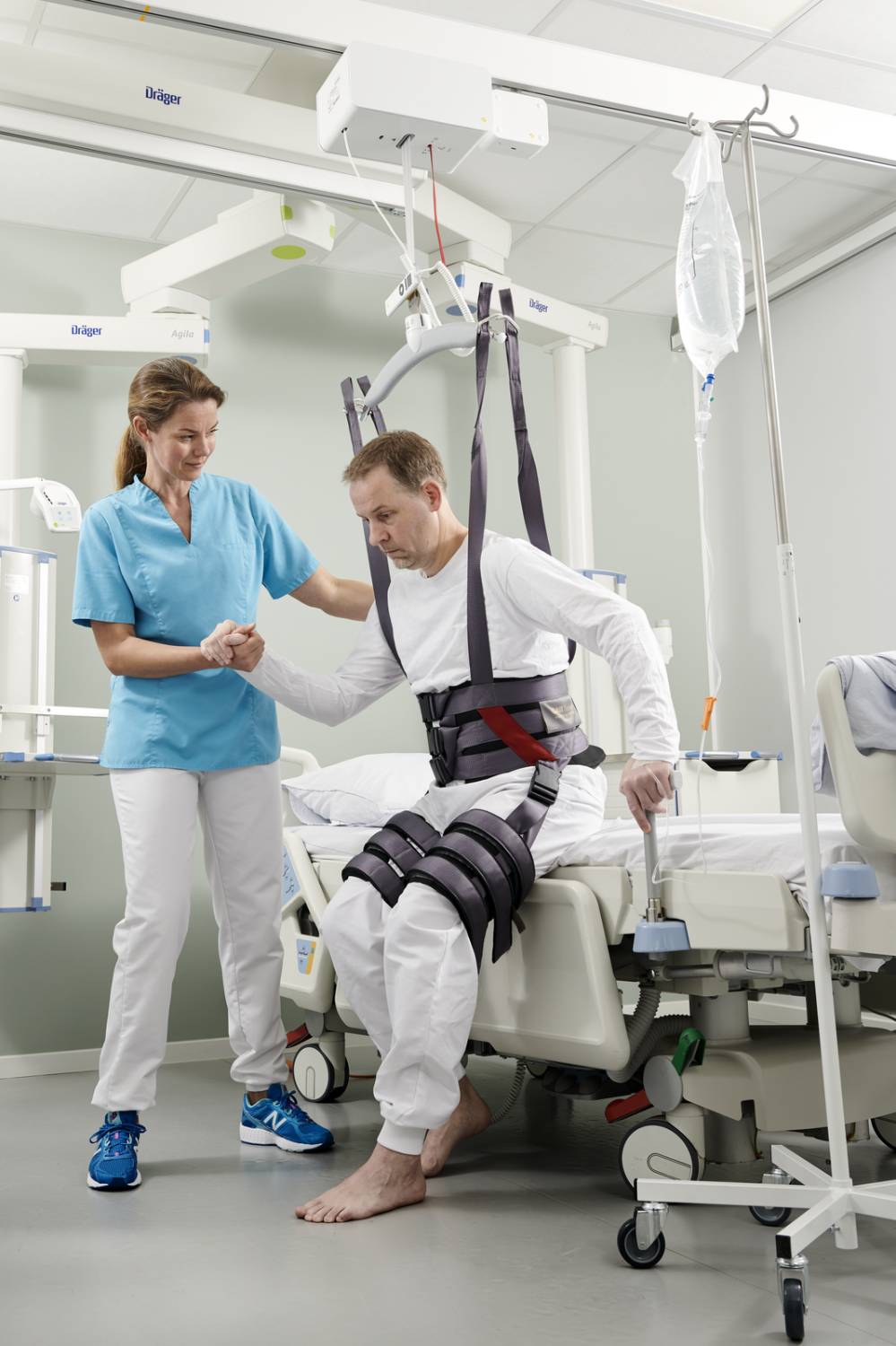

The Trainer Module is integrated into a GH3+ ceiling hoist and provides weight relief for physically challenged patients.

Jump to:
+44 (0)1347 825287 Website

Application

  1. Dynamic weight relief up to 100 kg
  2. Hands-free to focus on training quality
  3. Integrated into a GH3+ ceiling hoist

Description

A GH3+ hoist equipped with the Trainer Module is not only a perfect lifting and transferring solution, but it also provides the possibility to improve patient mobility and physical function through safe and assisted rehabilitation exercises. This supports early mobilization and training opportunities.


With the Trainer Module, it is possible to start rehabilitation with dynamic weight relief already in the patient’s room. Typical rehab exercises with dynamic weight relief in the Trainer Module could be: Gait training, balance, sit-to-stand, squat exercises, steps on/over obstacles etc.


In Trainer Module mode the GH3+ will dynamically unload the patient’s body weight with up to 100 kg. The caregiver selects the amount of weight needed to be unloaded for the patient and the Trainer module will do the rest. The caregiver can focus on the patient and the quality of the exercise/activity.


The Trainer Module is initiated, controlled and monitored through the digital hand control. Level of weight relief and training time left are displayed on the screen while the Trainer Module is activated.


The Trainer Module has a capacity of up to 30 minutes use when the hoist battery is fully charged. Capacity will be reduced if the hoist has been in normal use before initiation of training. After 30 minutes of training, the Trainer Module will automatically switch from training to transfer mode. In transfer mode the GH3+ is immediately ready for lifting and moving and charging will automatically continue as normal. 1 hour of charging = 10 minutes of training time.


The Trainer Module can only run on GH3+ hoists with a Scale Module. The Scale Module functions as a normal Scale Module when not used in cooperation with the Trainer Module.


Features and benefits:

  • Allows even faster lifting and moving.
  • Very high lifting capacity of up to 400 kg.
  • Option to add on Care Lift Management modules.
  • Training module allows dynamic weight relief up to 100 kg, hands-free to focus on training quality as well as being integrated into a GH3+ ceiling hoist.
  • Training sessions of up to 30 minutes.
  • Fall prevention.
  • Easy to use and monitor.
  • Lifting module serves as a normal hoist when not used for training.
  • One hour of charging equates to ten minutes training time.

General information

Color

White

Finish

Gloss

Material

Aluminium

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_65_80_47_04 Assisted transfer hoistsPrimary

CAWS

N13/490 Hoist systems

Specification data - Assisted transfer hoists

Standards

To BS EN ISO 10535.

Form

Ceiling-mounted track hoist.

Cradle or sling

-

Material

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Colour

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Hoist fittings for slings

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Supports

-

Material

Aluminum.

Finish and colour

White gloss.

Safe working load (maximum)

200 kg.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Battery

1 x 24 NiMH, 2.0 Ah.

Battery recharge time

Two hours.

Power supply

33 V AC, 2.5 A.

NominalSupplyVoltage

100—240 V AC.

Operation

Hand control / IR.

Sound

52 dB (A).

Speed

220 mm/sec.

Manufacturer guidance

Horizontal speed.

Cover

Impact resistant UL 94 V-0 flame retardant recyclable plastic.

Weight

9.6 kg.

Guidance for specification option:

  • Weight with horizontal motor: 10.5 kg.
  • Weight with scale module and horizontal motor: 11.1 kg.

Manufacturer guidance

Own weight.

Ingress protection

IP44 (hand control); IP20 (lifting module, remote control, transformer).

Sustainability data

Contains Red List materials

No

Country of material origin

Denmark

Country of product manufacture

Denmark

Recyclability

Yes

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

90 %

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO_14001-2015_Certificate_2023 - Environmental Management System Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO_9001_2015_certificate - Quality Management

Literature

GH3 & GH3+ Technical Data

GH3 & GH3+ Technical Data

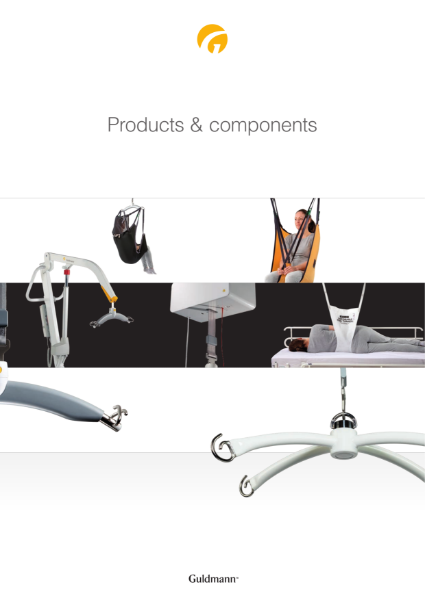

Product Catalogue

Product Catalogue

Trainer Module

Trainer Module

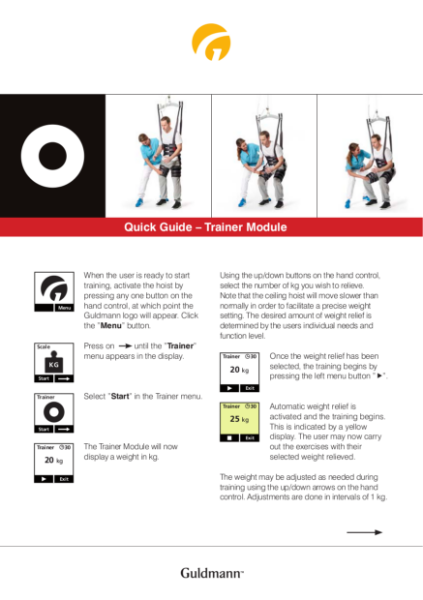

Trainer Module - Quick Reference Guide

Trainer Module - Quick Reference Guide

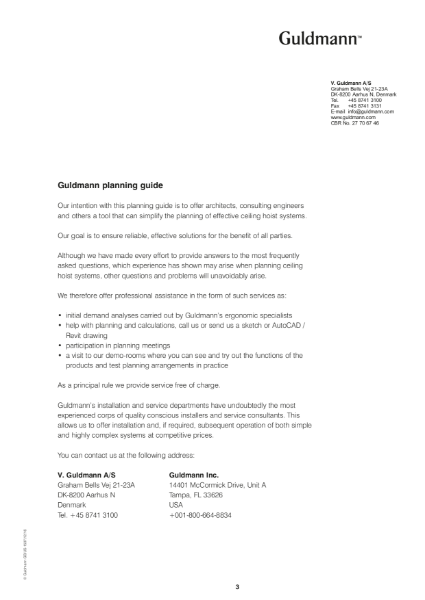

Architect Design and Planning Guide
