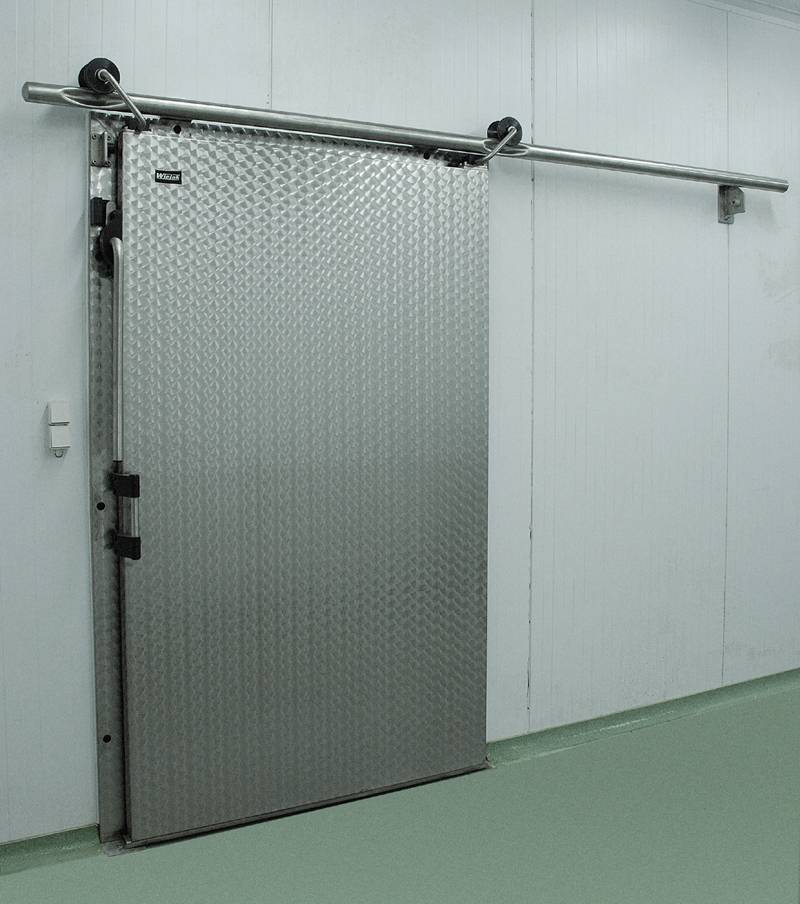

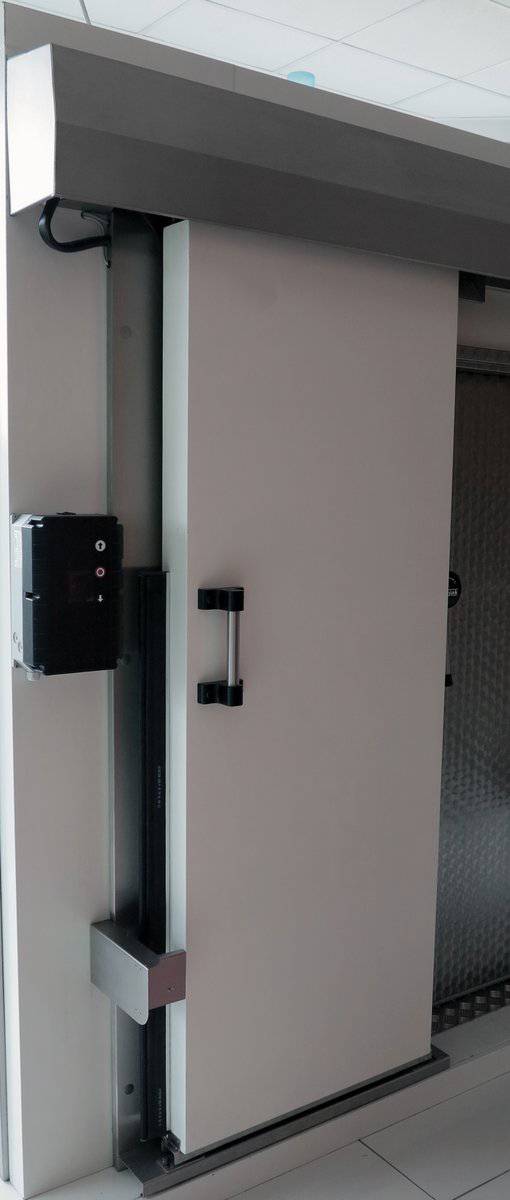

The Traffidor Glide sliding door range is specifically designed to offer a durable hygiene barrier and access control for specialist environments.
The door panel is a unique monobloc design, constructed from a high-grade steel envelope and injected with a high-density foam core. This offers exceptional rigidity and insulation. All joints are fully welded to prevent ingress of bacteria or fluids inside the leaf. The frames are typically fabricated from powder-coated galvanized steel and can be constructed with a wrap-around design for fitting to composite panel walling.
Available with one or two sliding leaves, these doors can be finished in variety of paint colours or a brushed stainless steel.
Typically installed as a manually operated door, the opening/closing action is smooth and easy to operate.
Also available as a fully automated system, with a variety of operation methods the door is designed to suit a variety of applications. Another popular addition is a variety of impact protection plates, including kickplates, to prevent damage to the door leaves. A variety of sizes and shapes of flush-glazed vision windows are also available.
Features and benefits:
Color | Silver Other Guidance for specification option: Painted to any RAL colour. White |
Finish | Painted Galvanized Stainless steel |
Material | Stainless steel Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/520 Sliding doors H13/760 Doors L20/280 Doors L20/45 Doors L20/60 Doors |
System performance | To EN 13241-1. |
Doorset | |
Type | Sliding door, single leaf.Double lead (bi-parting) |
Glazing | None.Guidance for specification option: Standard. Rectangular vision widow.Guidance for specification option: Complete with surrounding rubber seal. |
Weather or seal stripping | Silicone gasket seal. |
Hardware | Stainless steel pull handles on outside and flush handle on inside.Guidance for specification option: Standard. Stainless steel kickplates.Guidance for specification option: Optional. |
Thickness | 37 mm. |
Construction | Fully welded (37 mm thick) steel leaf, injected with a CFC-free polyurethane foam. |
Material | Galvanized steel, powder coated RAL. Guidance for specification option: Insert RAL colour. Stainless steel, brushed. |
Track | Hard-wearing HDPE track doubling as door frame. Enclosed stainless steel hygienic systems. Options to facilitate crane hoists and conveyor systems. Guidance for specification option: Consult manufacturer and insert requirement. Bespoke adaption for rail systems. |
Activation | Push button. Guidance for specification option: Electric doors. Motion sensor. Guidance for specification option: Electric doors. Interlocking. Guidance for specification option: Electric doors. Pull handle. Guidance for specification option: Manual doors. |
Top track | Classic sliding rail system. Guidance for specification option: Standard. Pipe rail hygienic sliding rail system. Guidance for specification option: Optional. |
Material/ Finish | Stainless steel. |
Operation | Manual. Guidance for specification option: Standard. Auto (electric). Guidance for specification option: Optional. |
Power supply | Single phase 230V. Guidance for specification option: Standard. Three phase 415V. Guidance for specification option: Optional. |
Size: | Manufacturer guidanceSize (w x h) 3000 x 3000 mm, maximum. Other sizes available on request. Insert requirements. |
Material | Stainless steel Steel |
