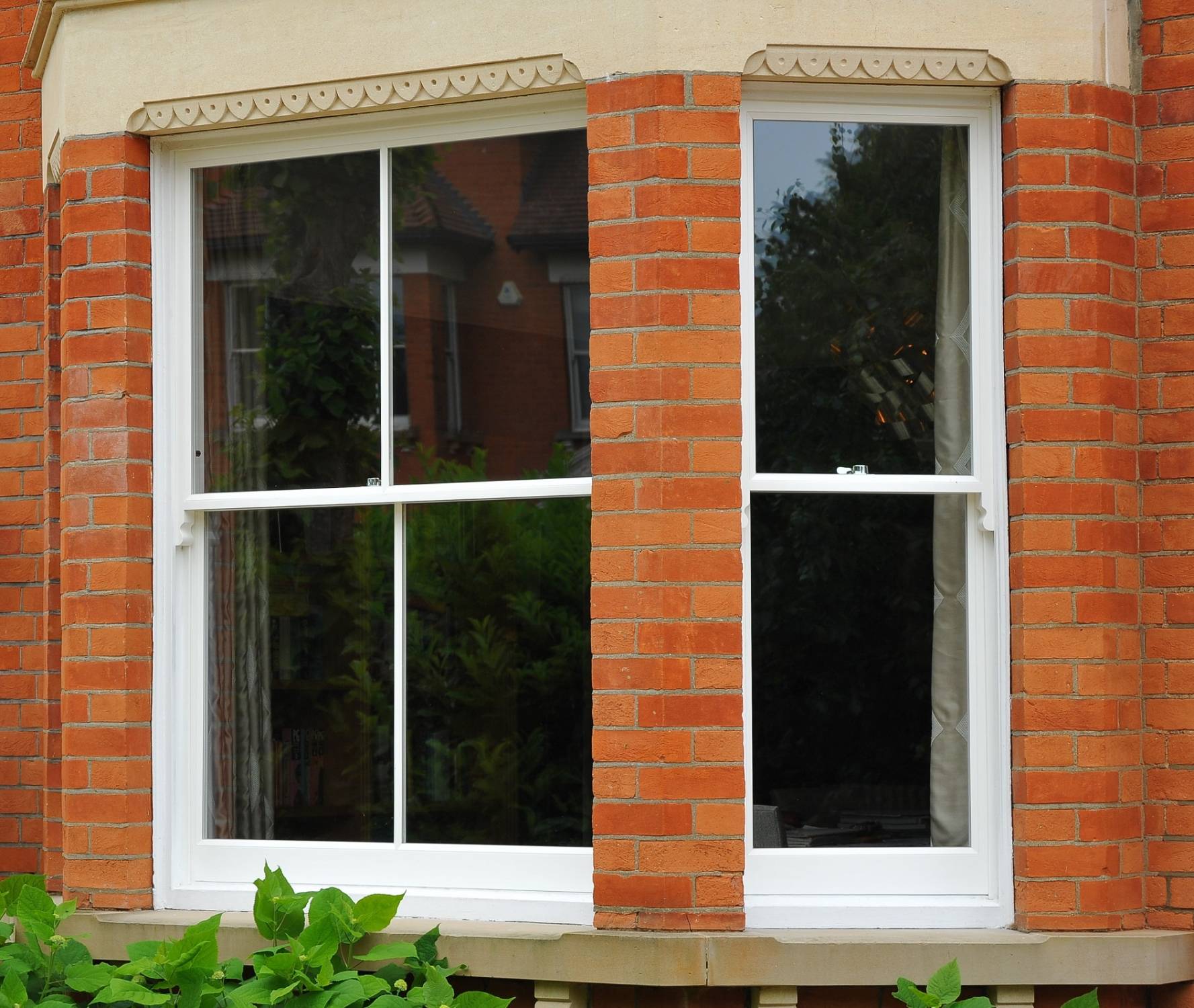

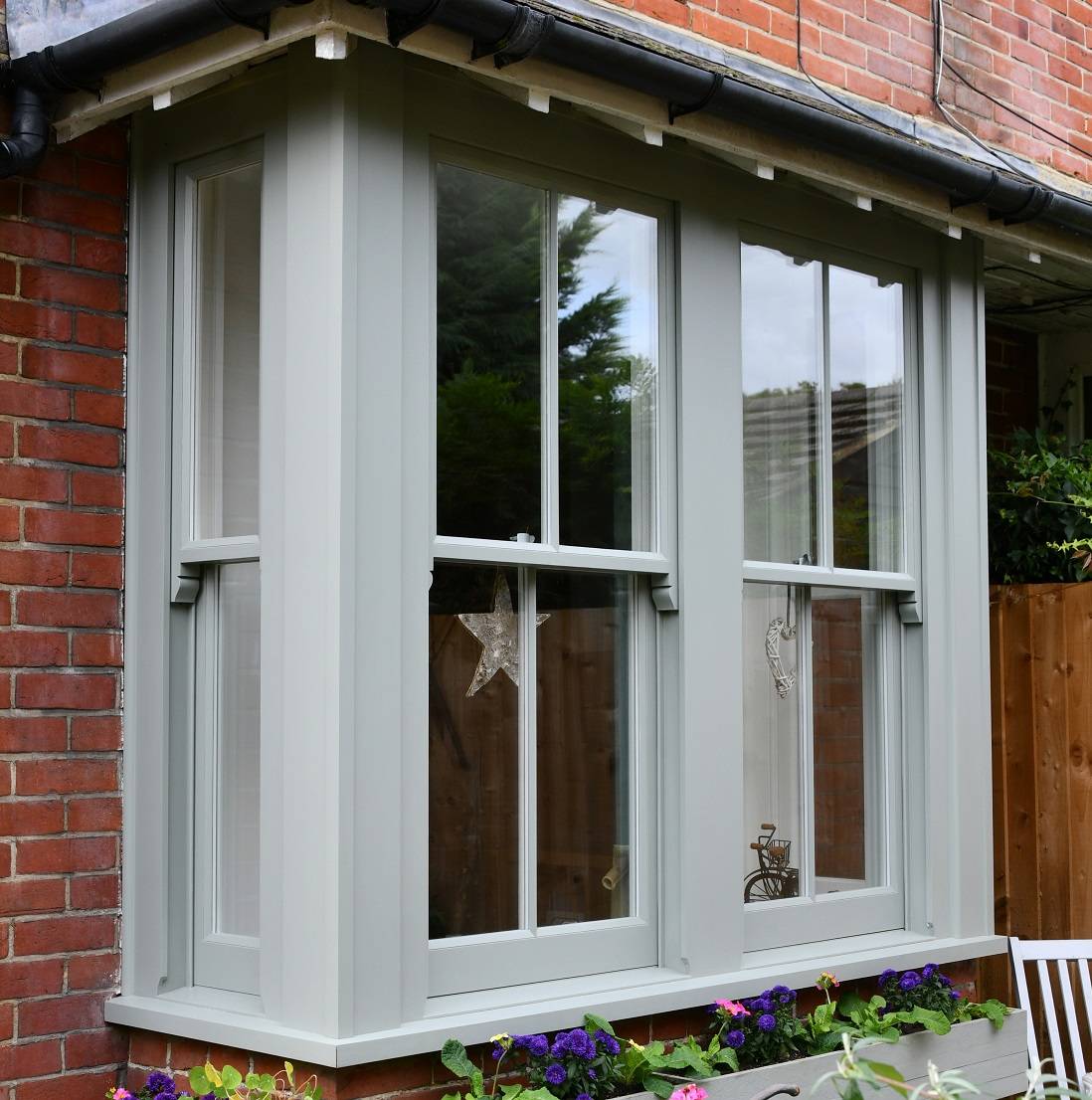

Timber bay sash window for renovations and new builds.
Suitable for residential and commercial applications.
The Traditional Timber Bay Sash Window has been designed to meet the needs of the owners of period properties and for those who want windows with charm and warmth and an authentic feel.
The windows replicate as closely as possible the proportions and designs of historic sash windows, whilst incorporating the latest manufacturing techniques.
In addition to box sash windows, windows can also be multiple aspect bay windows or Venetian style sash windows.
Features and benefits:
Color | White Other |
Finish | Painted Stained |
Material | Wood |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 50 year |
Material | Wood |
Uniclass | |
CAWS | L10/10 Wood windows L10/210 Wood windows |
Standard | To EN 14351. |
Third-party certification | Buildcheck |
Dimensions and configurations | Venetian.Manufacturer guidanceRefer to a drawing or schedule. |
Product performance | |
Fire performance | |
Fire resistance | N/A |
Fire egress | Yes |
Weather performance | |
UK exposure category | To BS 6375-1, 1600 Pa. |
Air permeability | To BS 6375-1, Class 2. |
Watertightness | To BS 6375-1, Class 5A. |
Resistance to wind load | To BS 6375-1, Class A4. |
Durability | |
Operation and strength characteristics | To BS 6375-2 |
Loadbearing capacity of safety devices | Bs6180 |
Safety | |
User design standards | In accordance with BS 8213-1. |
Anti-ligature standard | N/A |
Security level | To PAS 24. |
Environmental | |
Background ventilation | Yes |
Acoustic performance rating | 29 dB.Guidance for specification option: Standard float glass insulating glass unit, 4 mm/6–20 mm/4mm. A range of acoustic insulating glass units are also available; consult manufacturer. |
Thermal | |
Whole window U-value | 1.7 W/m2K.Guidance for specification option: Timber frame system with 4-10-4 Low-E 0.05 uncorrected emissivity (St Gobain Planitherm Total+), 90% argon 10% air filled, low iron outer pane (St Gobain Diamant) glazing unit with Edgetech Superspacer Premium spacer bar with 5 mm hot melt butyl secondary seal. |
British Fenestration Rating Council Window Energy Rating | C. |
Frame | |
Standard | To BS EN 942. |
Profile | Pencil Bead & Bespoke |
Wood species | Accoya/ Tricoya.Guidance for specification option: Tricoya is used for box frames up to 2200 mm in height or width. Accoya is used for box frames over 2200 mm in height or width. |
Chain of custody | FSC. |
Appearance class | For opaque finishing: to BS EN 942, J10 for glazing beads, drip mouldings and the like. J40 or better for all other members. |
Finish as delivered | 3 no. coats of factory applied Sigma white semi gloss paint, 2 no. primer base coats, 1 no. top coat.Guidance for specification option: As standard. Bespoke.Guidance for specification option: Insert requirements. |
Preservative treatment to wood components | N/A |
Ventilator | Titon |
Frame horns | Top sash: No horn.Top sash: 90 mm Victorian horn.Top sash: 70 mm short Victorian.Bottom sash: No horn.Bottom sash: 90 mm Victorian horn.Bottom sash: 70 mm short Victorian.Bespoke. |
Glazing or infill | |
Standard | Relevant parts of BS EN 1279. |
Requirements | 4 mm Planitherm Total + internal glass, 10 mm airspace, argon gas, 4 mm low iron external glass.Guidance for specification option: Glass thickness: 23 mm (maximum). External finish: Single pane with bonded bar, intermediate bars as necessary. |
Hardware | Brass - 4 no. pulley wheels, 1 no. fitch catch, 2 no. sash lifts, 1 no. rola lock set.Satin chrome - 4 no. pulley wheels, 1 no. fitch catch, 2 no. sash lifts, 1 no. rola lock set.Brushed chrome - 4 no. pulley wheels, 1 no. fitch catch, 2 no. sash lifts, 1 no. rola lock set.Manufacturer guidanceA full range of sash window ironmongery and finishes available at extra cost. Consult manufacturer. |
Operation | |
Type | Manual. |
Electrical supply | N/A |
Fixing features | N/A |
Execution | Fixing of wood frames |
Weather seal (factory applied) | Full weatherstripping integrated into the sashes frames and beading. |
Glazing bars | 16 mm Ovolo Bonded. 20 mm Ovolo Bonded. 24 mm Ovolo Bonded. 30 mm Ovolo Bonded. 24 mm Ovolo Heritage. |
Contains Red List materials | No |
Country of material origin | New Zealand |
Country of product manufacture | United Kingdom |
Material | Wood |
