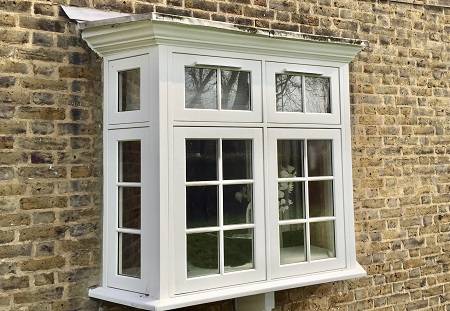

Traditional flush casement timber windows.
Suitable for high-rise developments.
Traditional flush casement timber windows with top hung over direct glazed layout.
Features and benefits:
Guarantees:
TRC Contracts Ltd offers robust guarantees on all TRC window ranges we supply and install. The following general terms apply on all new windows:
Color | Black Brown White Manufacturer guidanceMultiple options available. RAL classic range. |
Finish | Painted Guidance for specification option: Applied factory finish using water based micro-porous satin paint (three coats). |
Material | Timber |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year |
Uniclass | |
CAWS | L10/10 Wood windows L10/210 Wood windows |
Standard | To BS EN 6375-1, EN ISO 10077 and ISO 9001. |
Third-party certification | FSC Certified and Secured By Design (SBD) Certified. |
Dimensions and configurations | As drawing.As schedule. |
Product performance | |
Weather performance | |
UK exposure category | To BS 6375-1, 2000 Pa. |
Air permeability | To BS 6375-1, Class 4. |
Watertightness | To BS 6375-1, Class 7A. |
Resistance to wind load | To BS 6375-1, Class A5. |
Durability | |
Operation and strength characteristics | To BS 6375-2. |
Safety | |
Security level | To PAS 24. |
Environmental | |
Background ventilation | Available. |
Acoustic performance rating | To BS EN ISO 717-1, 45 dB. |
Thermal | |
Whole window U-value | 1.2 W/m2K.Guidance for specification option: Double glazed. 0.8 W/m2K.Guidance for specification option: Triple glazed. |
Frame | |
Profile | Ovolo 22 mm.Ovolo 18 mm.Lambs tongue 22 mm.Lambs tongue 18 mm. |
Wood species | Engineered Accoya.Engineered European oak.Engineered hardwood.Engineered redwood.Guidance for specification option: As standard. |
Finish as delivered | Dual finish.Guidance for specification option: Insert requirement. RAL classic range.Guidance for specification option: Insert requirement. Satin.Guidance for specification option: Insert requirement. |
Preservative treatment to wood components | Preservative treated. |
Ventilator | Through sash head trickle ventilator, EA 1700, 4400, 5000 mm². |
Frame horns | Not required. |
Glazing or infill | |
Requirements | Double glazed, 4/16/4 low-E.Guidance for specification option: As standard. Triple glazed 4 low-E /18/4/18/4 low-E. |
Hardware | Nico Manufacturing Ltd. |
Operation | |
Electrical supply | Electric actuators. |
Configurations | Direct glazed. Direct glazed over direct glazed. Double direct glazed. Double side-hung. Double side-hung floating mullion. |
Sash | 46 x 68 mm. |
Sill projection | 50 mm. 60 mm. 70 mm. 80 mm. 90 mm. |
MoistureContent | 12–19%. |
Glazing beads | Internally beaded. |
Perimeter spacer bars | White. Guidance for specification option: As standard. Silver. Black. |
Contains Red List materials | No |
Country of material origin | Latvia |
Country of product manufacture | Lithuania |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.5 kg CO₂ eq/kg Self declared |
Recyclability | Yes Manufacturer guidanceRecyclable parts of product timber, glass, gaskets. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
