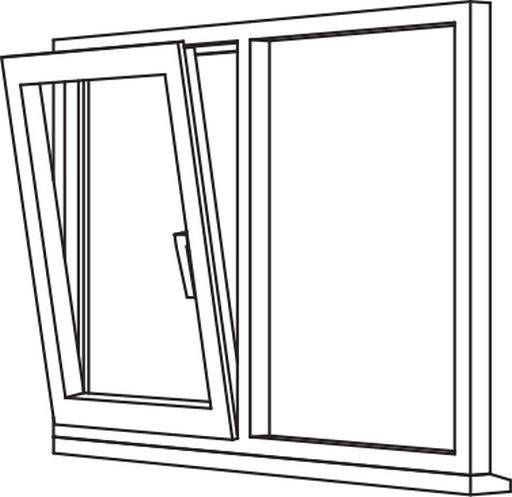

Traditional 2500 Tilt & Turn - TT2 Opener/Fixed

Application

Suitable for commercial projects.

Description

PVC-U tilt & turn windows, available in range of styles in three standard finishes. Years of research and development has resulted in a technically advanced system ideal for commercial projects.


With two sash sizes (88 mm & 110 mm), two frame sizes (52 mm & 70 mm), and a slim (68 mm) intermediate (88 mm) or large (110 mm) transom/mullion option.


Features and benefits:

  • The Traditional 2500 is a window and door system that offers the best in weather-proofing technology, energy efficiency and security.
  • The system is available in 18 laminate colourways from stock providing the ultimate convenience regarding supply.
  • Environmental product declaration: EPD-QKE-20150313-IBG1-EN.


General information

Color

White

RAL 9016 (standard).

Other

Laminated foil, Decoroc colour (RAL).

Material

PVC-U

Shape

Rectangle

Size

As drawing.

  • Single tilt and turn: 1500 mm wide x 1500 mm high.
  • Single fixed light: 3000 mm wide x 3000 mm high (maximum perimeter: 8000 mm).
  • Multilight windows with reinforced transom or mullion: 2400 mm wide x 2400 mm high (maximum perimeter: 7600 mm; maximum transom or mullion span: 1400 mm).

WarrantyDescription

Manufacturer warranty.

Uniclass 2015

Pr_30_59_98_92 Unplasticized polyvinyl chloride (PVC-U) window unitsPrimary

CAWS

L10/30 PVC-U windows

L10/350 PVC-U windows

Product range

Tilt & Turn Window / Chamfered (PVC-U)

Specification data - Unplasticized polyvinyl chloride (PVC-U) window units Enhanced data

Standard

To BS 7412.

Third-party certification

BSI Kitemark.

Dimensions and configurations

Tilt and turn opening light and fixed light.

Product performance

-

Fire performance

-

Fire egress

Required.

Emergency egress is an inherent characteristic of tilt & turn style hardware.

Weather performance

-

UK exposure category

To BS 6375, Class A5 (2000 Pa).

Air permeability

To BS 6375, Class 4 (600 Pa).

Watertightness

To BS 6375, Class 8A (450 Pa).

Resistance to wind load

To BS 6375, Class A5 (2000 Pa).

Durability

-

Operation and strength characteristics

Operating forces Class 1, resistance to static torsion Class 3 and racking Class 3.

Loadbearing capacity of safety devices

Maco Multi-Trend (tilt mode, 350 N).

Maco Multi-Matic (tilt mode, 350 N).

Segenia Favorit (tilt mode, 350 N).

Roto Designo (tilt mode, 350 N).

Safety

-

Security level

To PAS 24.

Environmental

-

Background ventilation

Not required.

Proprietary ventilation device.

Acoustic performance rating

32—43 dB.

Thermal

-

Whole window U-value

  • Whole window ‘U’ values comply with Approved Document L (Eng/Wales) Section 6 (Scotland) of the Building Regulations.
  • Lower ‘U’ values can be achieved.
  • Window energy ratings C to A+ can be achieved.

British Fenestration Rating Council Window Energy Rating

A+ to C.

Frame

-

Profile

To BS EN 12608.

Hollow PVC-U chamfered profile manufactured in accordance with BS EN 12608.

Reinforcement

Galvanized steel.

Colour and texture

White - RAL 9016.

As standard.

Laminated foil.

Insert requirement.

Decoroc colour (RAL).

Insert requirement.

Ventilator

Not required.

Proprietary ventilation device.

Glazing or infill

-

Requirements

Single glazed.

Double glazed.

Triple glazed.

Operation

-

Type

Manual.

Fixing features

Through frame fasteners.

Fixing lug.

Size (w x h)

As drawing.

  • Single tilt and turn: 1500 mm wide x 1500 mm high.
  • Single fixed light: 3000 mm wide x 3000 mm high (maximum perimeter: 8000 mm).
  • Multilight windows with reinforced transom or mullion: 2400 mm wide x 2400 mm high (maximum perimeter: 7600 mm; maximum transom or mullion span: 1400 mm).


Outer frame size

52 mm.

70 mm.

Sash

Heavy duty.

Standard.

Transoms and mullions

68 mm.

88 mm.

110 mm.

Couplings

Window frame couplings.

Not required.

3310 Slimline coupler.

3312 Slimline coupler.

3197 Slimline coupler.

3705 Reinforced coupler.

Show more

Extensions

Window frame extensions.

Not required.

2455 Head section.

Accommodates proprietary trickle ventilators.

3300 Add-on.

Allows additional clearance for hinges.

3301 Add-on.

Accommodates proprietary trickle ventilators.

3302 Add-on.

Frame build-up for conservatories.

Show more

Bay corner posts

Window frame bay corner posts.

Not required.

3196 Bay post.

Fixed 135° angle.

3313/3327 Slimline bay pole and adaptor.

Angles of 138–222°.

6916/ 3311 Bay pole and adaptor.

Angles of 90–270°.

6920 Bay post.

Fixed 90° square post.

Show more

Architraves

Not required.

1044 D-mould.

30 mm wide.

1087 Architrave.

40 mm wide.

1178 Quadrant.

19 mm.

3341 Add-on.

Architrave adaptor.

Show more

Options

Glazing options.

Not required.

Georgian bars.

Leaded lights.

Thickness

Glazing thickness.

5—42 mm.

Ironmongery

As section P21.

Bead

Internal.

Type

Beading type.

Chamfered.

As standard.

Other.

Four glazing bead styles available.

Seal

Weatherseal.

High-performance integral multifunctional seal/ gasket.

ThermalTransmittance

0.97.

Hinges

Hardware hinge options.

Maco Multi-Trend.

Maco Multi-Matic.

Segenia Favorit.

Roto Designo.

Digital objects

Platform Compatible Version Certified to
IFC
-

2

1.3
Revit

Revit 2016

3

2.0
Download now from NBS National BIM Library
