Traditional 2500 French Door - F7 Open Out

Name: Traditional 2500 French Door - F7 Open Out
Brand: Deceuninck Ltd
SKU: knFr5xNSqQFWC14XyarZsX

Verified by manufacturer over a year ago

Deceuninck Ltd

Third party certifications:

BSI Kitemark
Certificate type

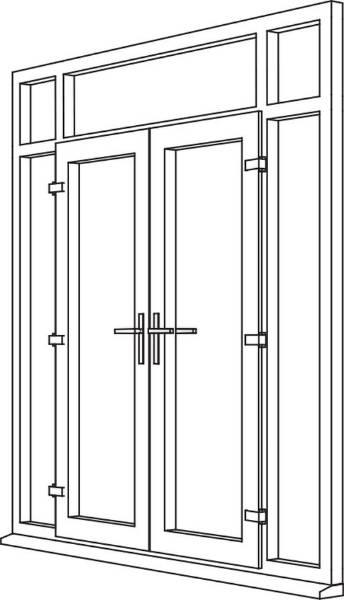

Double opening style door with combined fan light, double side lights and a chamfered design frame.

Jump to:

BOS

+44 (0)1249 816969 Website

Application

Suitable for commercial projects.

Description

PVC-U French doors, available in a range of styles in three standard finishes.

Years of research and development have resulted in a technically advanced system ideal for commercial projects.

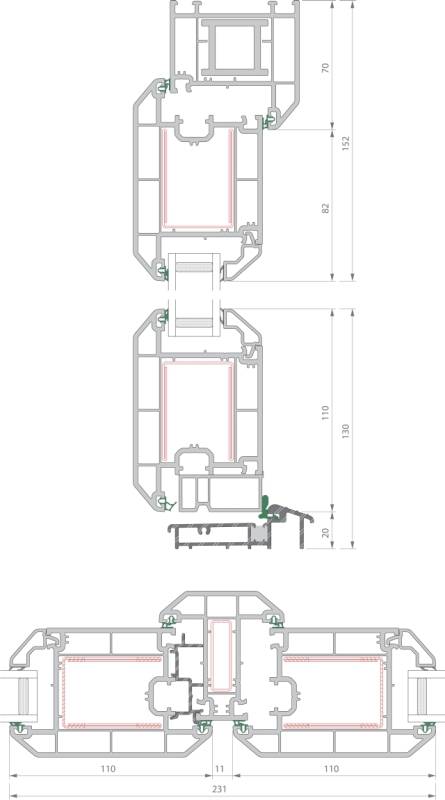

With two sash sizes (88 mm & 110 mm), two frame sizes (52 mm & 70 mm), a slim (68 mm) intermediate (88 mm) or large (110 mm) transom/mullion and a low threshold option.

Features and benefits:

The Traditional 2500 is a window and door system that offers the best in weather-proofing technology, energy efficiency and security.
The system is available in 18 laminate colourways from stock providing the ultimate convenience regarding supply.
BSI Kitemark.

General information

Shape	Rectangle
Color	White Guidance for specification option: RAL 9016 (standard). Other Guidance for specification option: Laminated foil, Decoroc colour (RAL).
Material	PVC-U
Warranty description	Guidance for specification option: Manufacturer warranty.
Size	Guidance for specification option: As drawing. Maximum tested sizes: Double leaf: 1800 mm wide x 2150 mm high. Coupled side panel: 1100 mm wide x 2150 mm high.

Uniclass	Pr_30_59_24_92 Unplasticized polyvinyl chloride (PVC-U) doorsetsPrimary
CAWS	L20/480 Doorsets L20/55 Doorsets

Product range	Open Out Doors / Chamfered (PVC-U)

Specification data - Unplasticized polyvinyl chloride (PVC-U) doorsets

Third party accreditation	BSI Kitemark.
Standard	To BS 7412.
Configuration	Double leaf, single action.
Doorset size	As drawing. Guidance for specification option: Maximum tested sizes: Double leaf: 1800 mm wide x 2150 mm high. Coupled side panel: 1100 mm wide x 2150 mm high.
Performance	-
Acoustic performance	32—43 dB.
Strength and durability	To BS 6375-3.
Thermal	Guidance for specification option: Whole door ‘U’ values comply with Approved Document L (Eng/Wales) and Section 6 (Scotland) of the Building Regulations. Lower ‘U’ values can be achieved. Door energy ratings E to A++ can be achieved.
Intruder resistance	-
Minimum requirement	In accordance with BS 6375-3 and to PAS 24.
Accessibility	Doc M Compliant. Guidance for specification option: Low threshold to suit inward and outward opening doors to improve access for the disabled and wheelchair users.
Frame	-
Materials	Steel core with PVC-U sleeve. Guidance for specification option: Galvanized steel.
Threshold	Not required. 2976 AM3-70 open-in low threshold. 2977 AM5EX-70 open-out low threshold. 14647 Low threshold.
Perimeter seals or inserts	Impregnated foam seal/tape. Flexible membrane.
Finish and colour	White - RAL 9016. Guidance for specification option: As standard. Laminated foil. Guidance for specification option: Insert requirement. Decoroc colour (RAL). Guidance for specification option: Insert requirement.
Installation fasteners	Through frame fasteners. Fixing lug.
Frame accessories	Trickle ventilator.
Door leaf	-
Thickness	70 mm.
Core	Galvanized steel.
Perimeter seals	High-performance integral multifunctional seal/ gasket.
Material	PVC-U with glazing.
Finish	White - RAL 9016. Guidance for specification option: As standard. Laminated foil. Guidance for specification option: Insert requirement. Decoroc colour (RAL). Guidance for specification option: Insert requirement.
Architraves	-
Material	PVC-UE.
Finish	White - RAL 9016. Guidance for specification option: As standard. Laminated foil. Guidance for specification option: Insert requirement. Decoroc colour (RAL). Guidance for specification option: Insert requirement.
Glazing	-
Type	Single glazed. Double glazed. Triple glazed.
Beading	Internal.
Hardware	Guidance for specification option: Will accept hardware from most manufacturers. Full depth euro-groove. Secure retention of hardware.
Perimeter seals	High-performance integral multifunctional seal/ gasket.
Installation fasteners	Through frame fasteners. Fixing lug.
Accessories	Not required. Head drip. Weather bar. Architrave finishing trims. Georgian bars. Leaded lights.

Opening	Outward.
Transoms and mullions	68 mm. 88 mm. 110 mm.
Size	52 mm. 70 mm. Manufacturer guidance Door frame size.
Type	Fanlight. Sidelight. Standard. Manufacturer guidance Door frame type.
Couplings	Not required. 3310 Slim line coupler. 3312 Slim line coupler. 3197 Slim line coupler. 3705 Reinforced coupler. 6975 Reinforced coupler. Lightweight. Structural. Show more Manufacturer guidance Door frame couplings.
Extensions, sills and weathering trims	Not required. 3300 Add-on. Guidance for specification option: Allows additional clearance for hinges. 3301 Add-on. Guidance for specification option: Accommodates proprietary trickle ventilators. 3302 Add-on. Guidance for specification option: Frame build-up for conservatories. 3336 Add-on. Guidance for specification option: Provides clearance over existing plaster or tiling. 3340 Add-on. Guidance for specification option: Reveal liner adaptor. 2455 Head section. Guidance for specification option: Accommodates proprietary trickle ventilators As drawing. Show more
Bay corner posts	Not required. 3313/3327 Slimline bay pole and adaptor. Guidance for specification option: Angles from 138°-222°. 6916/ 3311 Bay pole and adaptor. Guidance for specification option: Angles from 90°-270°. 6920 90° Square corner post. 3196 Bay post. Guidance for specification option: Fixed 135° angle. Standard. Structural. As drawing. Show more
Weather bars	Not required. 3303 Head drip. 3306 Weather bar.
Projecting sill	Not required. 3338 Projecting sill. Guidance for specification option: 150 mm. 3339 Projecting sill. Guidance for specification option: 180 mm. 3258 End cap. Guidance for specification option: For 3338 Projecting sill. 3259 End cap. Guidance for specification option: For 3339 Projecting sill.
Stub-sill	Not required. 3337 Stub-sill. Guidance for specification option: 95 mm 3257 End cap. Guidance for specification option: For 3337 Stub-sill.
Architraves	Not required. 1044 D-mould. Guidance for specification option: 30 mm wide. 1087 Architrave. Guidance for specification option: 40 mm wide. 1178 Quadrant. Guidance for specification option: 19 mm 3341 Add-on. Guidance for specification option: Architrave adaptor. 3342 Architrave. Guidance for specification option: 30 mm wide. 3343 Architrave. Guidance for specification option: 35 mm wide. Show more
Fabrication	Fully welded. Mechanically jointed.
Options	Not required. Georgian bars. Leaded lights. Manufacturer guidance Glazing options.
Ventilation	Not required. Proprietary ventilation device. Guidance for specification option: Insert requirement.
Ironmongery	As section P21.
Type	Chamfered. Guidance for specification option: As standard. Other. Guidance for specification option: Four glazing bead styles available, consult manufacturer. Manufacturer guidance Beading type.
Door frame profile	Chamfered.
Thickness	5—42 mm. Manufacturer guidance Glazing thickness.
Air permeability	To BS 6375-1, Class 4 (600 Pa).
UK exposure category	To BS 6375-1, Class A3 (1200 Pa).
Watertightness	To BS 6375-1, Class E1050 (1050 Pa).
ThermalTransmittance	0.97.
