Traditional 2500 French Door - F2 Open In

Verified by manufacturer over a year ago

Deceuninck Ltd Third party certifications:
  • BSI Kitemark

    BSI Kitemark

    Certificate type

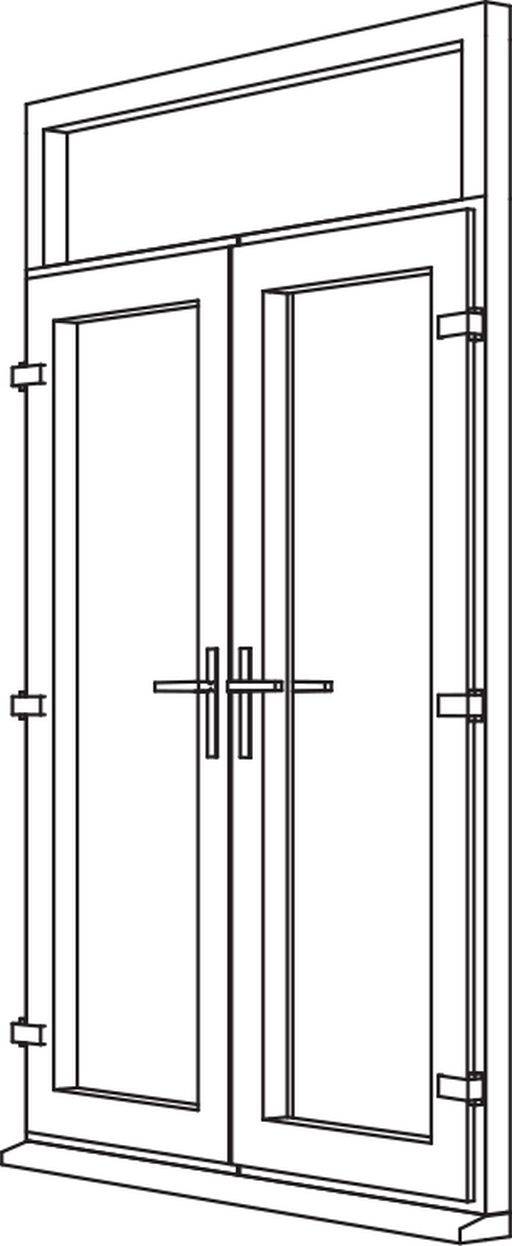

Double opening style door with a combined fan light and a chamfered design frame.

Jump to:
BOS
 +44 (0)1249 816969 Website

Application

Suitable for commercial projects.

Description

PVC-U French doors, available in a range of styles in three standard finishes.


Years of research and development have resulted in a technically advanced system ideal for commercial projects.

With two sash sizes (88 mm & 110 mm), two frame sizes (52 mm & 70 mm), a slim (68 mm) intermediate (88 mm) or large (110 mm) transom/mullion and a low threshold option.


Features and benefits:

  • The Traditional 2500 is a window and door system that offers the best in weather-proofing technology, energy efficiency and security.
  • The system is available in 18 laminate colourways from stock providing the ultimate convenience regarding supply.
  • BSI Kitemark.

General information

Shape

Rectangle

Color

White

Guidance for specification option:

RAL 9016 (standard).

Other

Guidance for specification option:

Laminated foil, Decoroc colour (RAL).

Material

PVC-U

Warranty description

Guidance for specification option:

Manufacturer warranty.

Size

Guidance for specification option:

As drawing.

Maximum tested sizes:

  • Double leaf: 1800 mm wide x 2150 mm high.
  • Coupled side panel: 1100 mm wide x 2150 mm high.

Uniclass

Pr_30_59_24_92 Unplasticized polyvinyl chloride (PVC-U) doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Product range

Open In Doors / Chamfered (PVC-U)

Specification data - Unplasticized polyvinyl chloride (PVC-U) doorsets

Third party accreditation

BSI Kitemark.

Standard

To BS 7412.

Configuration

Double leaf, single action.

Doorset size

As drawing.

Guidance for specification option:

Maximum tested sizes:

  • Double leaf: 1800 mm wide x 2150 mm high.
  • Coupled side panel: 1100 mm wide x 2150 mm high.

Performance

-

Acoustic performance

32—43 dB.

Strength and durability

To BS 6375-3.

Thermal

Guidance for specification option:

  • Whole door ‘U’ values comply with Approved Document L (Eng/Wales) and Section 6 (Scotland) of the Building Regulations.
  • Lower ‘U’ values can be achieved.
  • Door energy ratings E to A++ can be achieved.


Intruder resistance

-

Minimum requirement

In accordance with BS 6375-3 and to PAS 24.

Accessibility

Doc M Compliant.

Guidance for specification option:

Low threshold to suit inward and outward opening doors to improve access for the disabled and wheelchair users.

Frame

-

Materials

Steel core with PVC-U sleeve.

Guidance for specification option:

Galvanized steel.

Threshold

Not required.

2976 AM3-70 open-in low threshold.

2977 AM5EX-70 open-out low threshold.

14647 Low threshold.

Perimeter seals or inserts

Impregnated foam seal/tape.

Flexible membrane.

Finish and colour

White - RAL 9016.

Guidance for specification option:

As standard.

Laminated foil.

Guidance for specification option:

Insert requirement.

Decoroc colour (RAL).

Guidance for specification option:

Insert requirement.

Installation fasteners

Through frame fasteners.

Fixing lug.

Frame accessories

Trickle ventilator.

Door leaf

-

Thickness

70 mm.

Core

Galvanized steel.

Perimeter seals

High-performance integral multifunctional seal/ gasket.

Material

PVC-U with glazing.

Finish

White - RAL 9016.

Guidance for specification option:

As standard.

Laminated foil.

Guidance for specification option:

Insert requirement.

Decoroc colour (RAL).

Guidance for specification option:

Insert requirement.

Architraves

-

Material

PVC-UE.

Finish

White - RAL 9016.

Guidance for specification option:

As standard.

Laminated foil.

Guidance for specification option:

Insert requirement.

Decoroc colour (RAL).

Guidance for specification option:

Insert requirement.

Glazing

-

Type

Single glazed.

Double glazed.

Triple glazed.

Beading

Internal.

Hardware

Guidance for specification option:

  • Will accept hardware from most manufacturers.
  • Full depth euro-groove.
  • Secure retention of hardware.

Perimeter seals

High-performance integral multifunctional seal/ gasket.

Installation fasteners

Through frame fasteners.

Fixing lug.

Accessories

Not required.

Head drip.

Weather bar.

Architrave finishing trims.

Georgian bars.

Leaded lights.

Opening

Inward.

Transoms and mullions

68 mm.

88 mm.

110 mm.

Size

52 mm.

70 mm.

Manufacturer guidance

Door frame size.

Type

Fanlight.

Sidelight.

Standard.

Manufacturer guidance

Door frame type.

Couplings

Not required.

3310 Slim line coupler.

3312 Slim line coupler.

3197 Slim line coupler.

3705 Reinforced coupler.

Show more

Manufacturer guidance

Door frame couplings.

Extensions, sills and weathering trims

Not required.

3300 Add-on.

Guidance for specification option:

Allows additional clearance for hinges.

3301 Add-on.

Guidance for specification option:

Accommodates proprietary trickle ventilators.

3302 Add-on.

Guidance for specification option:

Frame build-up for conservatories.

3336 Add-on.

Guidance for specification option:

Provides clearance over existing plaster or tiling.

Show more

Bay corner posts

Not required.

3313/3327 Slimline bay pole and adaptor.

Guidance for specification option:

Angles from 138°-222°.

6916/ 3311 Bay pole and adaptor.

Guidance for specification option:

Angles from 90°-270°.

6920 90° Square corner post.

3196 Bay post.

Guidance for specification option:

Fixed 135° angle.

Show more

Weather bars

Not required.

3303 Head drip.

3306 Weather bar.

Projecting sill

Not required.

3338 Projecting sill.

Guidance for specification option:

150 mm.

3339 Projecting sill.

Guidance for specification option:

180 mm.

3258 End cap.

Guidance for specification option:

For 3338 Projecting sill.

3259 End cap.

Guidance for specification option:

For 3339 Projecting sill.

Stub-sill

Not required.

3337 Stub-sill.

Guidance for specification option:

95 mm

3257 End cap.

Guidance for specification option:

For 3337 Stub-sill.

Architraves

Not required.

1044 D-mould.

Guidance for specification option:

30 mm wide.

1087 Architrave.

Guidance for specification option:

40 mm wide.

1178 Quadrant.

Guidance for specification option:

19 mm

3341 Add-on.

Guidance for specification option:

Architrave adaptor.

Show more

Fabrication

Fully welded.

Mechanically jointed.

Options

Not required.

Georgian bars.

Leaded lights.

Manufacturer guidance

Glazing options.

Ventilation

Not required.

Proprietary ventilation device.

Guidance for specification option:

Insert requirement.

Ironmongery

As section P21.

Type

Chamfered.

Guidance for specification option:

As standard.

Other.

Guidance for specification option:

Four glazing bead styles available, consult manufacturer.

Manufacturer guidance

Beading type.

Door frame profile

Chamfered.

Thickness

5—42 mm.

Manufacturer guidance

Glazing thickness.

Air permeability

To BS 6375-1, Class 4 (600 Pa).

UK exposure category

To BS 6375-1, Class A3 (1200 Pa).

Watertightness

To BS 6375-1, Class E1050 (1050 Pa).

ThermalTransmittance

0.97.
