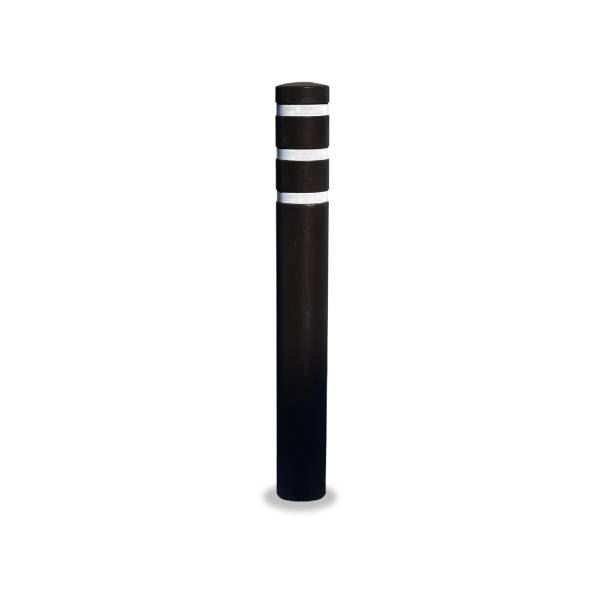

TR130/ TB130 Impact Flex Bollard

TR130 - Root Fixed

Watts Urethane Variant:

Root or base fixed, lightweight and flexible bollard.

Jump to:
+44 (0)1594847150 Website

Application

TR130 is suitable for installation in conventional car parks and TB130 is suitable for multi-story car parks and airports.

Description

TR130 is a root fixed impact flex bollard, designed typically for installation on conventional car parks, where the bollard is inserted 300 mm into the ground and is held in place with tarmac or concrete.


TB130 is a base fixed impact flex bollard, designed for use where the bollard can only be bolt fixed to the top surface. The TB130 bollard is used in areas where ground excavation is limited and does not suit a TR130 bollard.


The bollard flexes to absorb the typical force of a vehicle at impact but then returns to the vertical position afterwards with no damage the bollard and minimal damage to vehicle.

Complete Maintenance free "fit and forget" solution designed to minimise any future ongoing maintenance costs or replacements.


They can be accessorised with reflective tape in red, white or yellow.


Features and benefits:

  • Part of the Impact-Flex™ range.
  • Can't be bent over by hand.
  • Lightweight.
  • Root fixed or Base Plated.
  • The option of red, white or yellow reflective tape.
  • Urethane technology and design.
  • Flexible enough to prevent damage to any ground installation.
  • Low maintenance.
  • Tough and durable.
  • Chip and damage resistant.
  • Weather and abrasion resistant.

General information

Color

Black

Red

Yellow

Finish

Smooth

Material

Polyurethane

Width

130 mm

Height

1050 mm

WarrantyDescription

Two year

Uniclass

Pr_20_76_08_62 Plastics bollardsPrimary

CAWS

Q50/31 Bollards

Q50/190 Bollards

Specification data - Plastics bollards

Material

Polyurethane.

Steel reinforcement

Not required.

Dimensions

-

Size and profile

130 mm diameter.

Height

1050 mm.

Length below ground

300 mm.

Top profile

Flat.

Base

Flat.

Finishes

-

Colour

Black.

Cast finish

Smooth.

Applied finishes

Retro-reflective tape, red.

Retro-reflective tape, white.

Retro-reflective tape, yellow.

Accessories

Self-righting mechanism.

Fixing

Root fixed.

Weight

5.5 kg.

Environmental information

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom
