Description

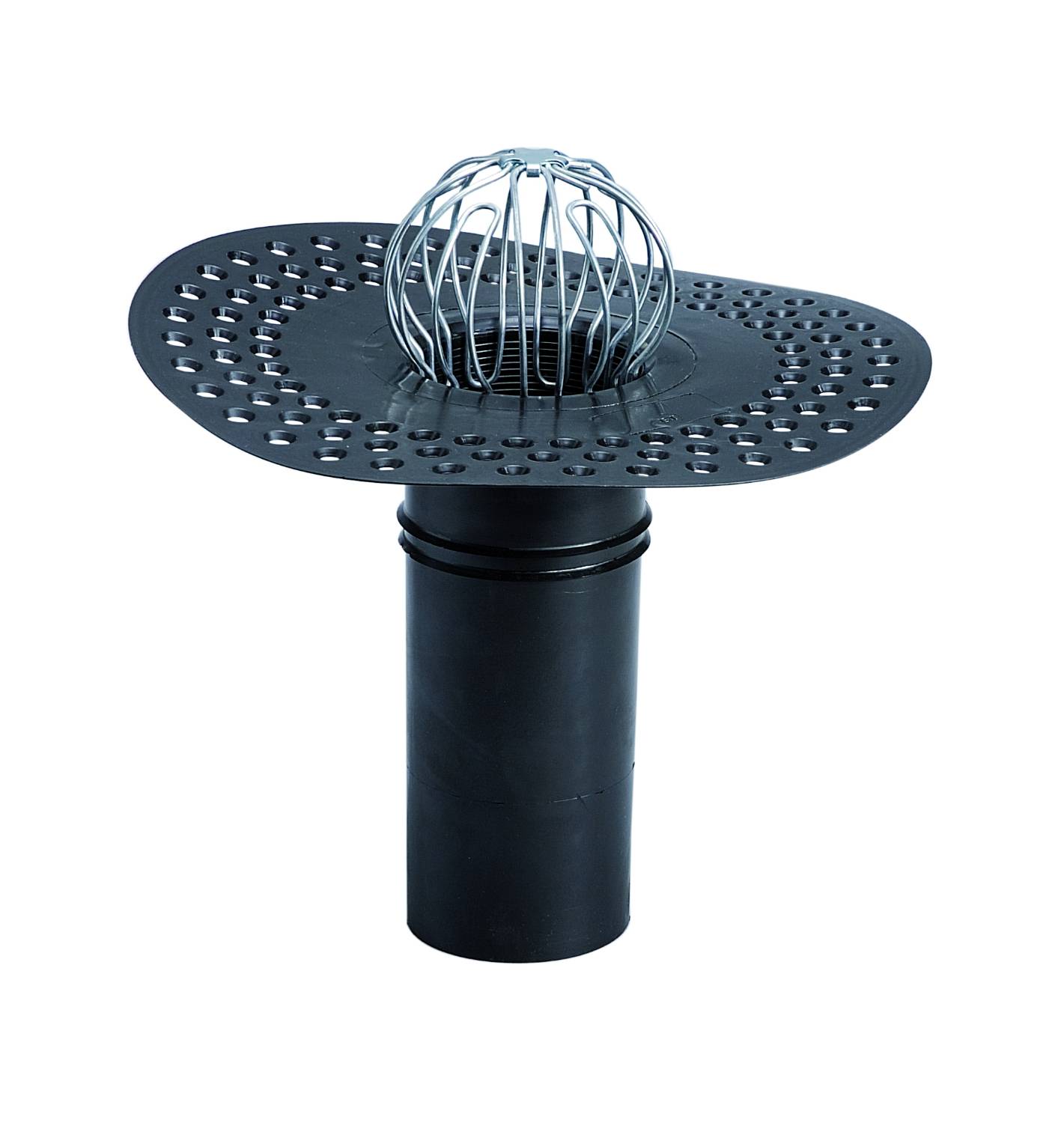

Preformed drainage outlets manufactured from TPE compound for downpipes on flat roofs using bitumen waterproofing membranes. Most suitable for liquid two-coat bitumen, felts and hot melt. Manufactured with a perforated flange and bonded to the waterproofing membrane using the sandwich technique.

Apply one coat of waterproofing membrane and install the outlet. Allow the still tacky membrane to ooze through the perforations and then apply the second coat of bituminous membrane to achieve an over-and-under bond.

Drainage outlet is protected by having additional layer and fully sealed. A round or square leaf guard can be inserted into mouth of outlet once installed.

Always use a compatible primer both to the outlet shape and the waterproofing membrane before installation.

General information
Color

Black

Features

UV resistant, can withstand a temperature of up to 120°C, can be fitted on multiple outlets, tough flexible and durable material

Material

Thermoplastic elastomer

Shape

Circular

Size

240 x 280 x 69 x 64 x 74 mm

Uniclass 2015
Gravity rainwater outlets (Pr_65_50_35_37)Primary
Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
Revit 2017 1 2.1
Download now from NBS National BIM Library
